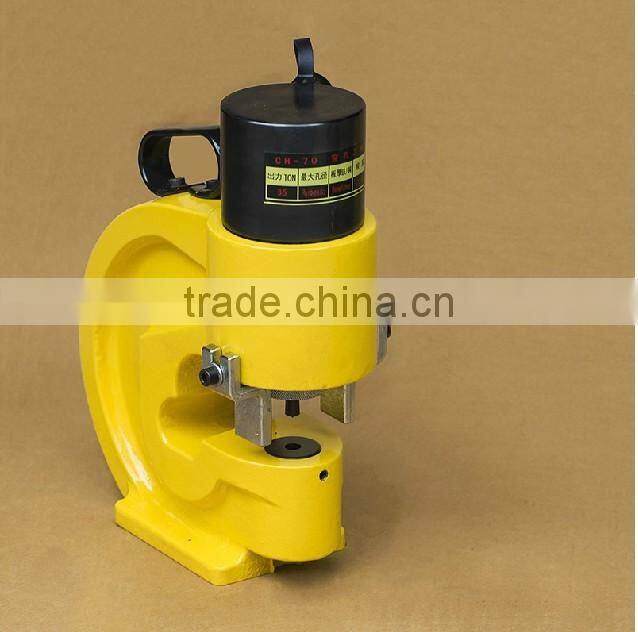

Hydraulic Punching Tools for sale
Tools Introduction

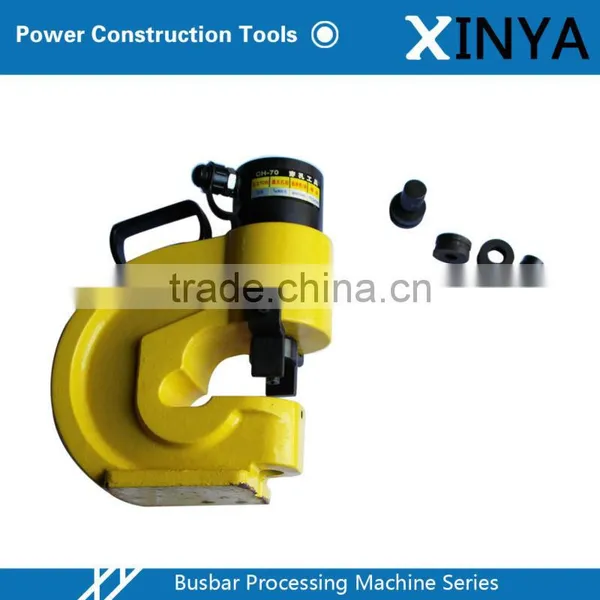

Hydraulic Punching Tools CH-60 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 8mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.
Features
Operation speed of Hydraulic angle steel punching tools is fast than electric drill. It only need a few seconds for punching and there is no burr after punching.
With pressing mechanism design, punching precision is good.
With the hydraulic pump as power, it can used in no power site.
1. Remote Control Style: Works with an external hydraulic pump. With the help of hydraulic power, punching become easy and fast. Foot Hand and Electric Hydraulic pumps are all available in our products range
2. 4 Pairs Standard Punching Dies: For precise punching, select proper dies accoding to application
3. Dies Size: 10.5mm 13.8mm 17mm 20.5mm
4. Punching Dies Customization is Available if samples and Drawings can be provided
5. Steel Case Package: Protect Tools well
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1,Take First-Class Quality as Target and First-class Service.
2,As Responsibility, To Succeed By Scientific Management.
3,Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data for Hydraulic Angle Steel Punching Tools
| Product No. | Model Type | Output(T) | Bore diameter | Throat depth(mm) | Slab thickness(mm) | Weight(kg) |
| 80107A | CH-60 | 31 | 10.5-20.5 | 95 | Steel8/Copper Aluminum10 | 13.5 |
| 80107B | CH-70 | 31 | 10.5-20.5 | 110 | Steel10/ Copper Aluminum 12 | 28 |
