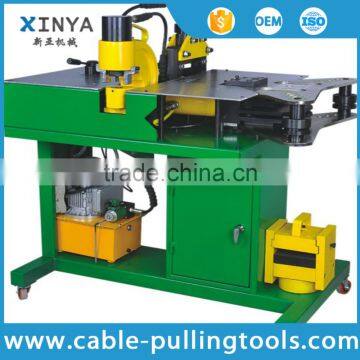

DHY-501 Multi-functional hydraulic busbar punching cutting bending embossing machine
Application
DHY-501 Multi-functional hydraulic busbar punching cutting bending embossing machine is suitable for the site construction in the large workshop and transmission and distribution engineering construction site,ect..Each function has a calibration instructions, it can observe the work point of view to ensure the construction quality of the user.This machine is equipped with four functions that punching, cutting, bending and embossing. It is easy to operate with optional foot switch and line switch.Electric pump adopt aluminum alloy shell motor,so it has light weight and low noise.
Technical Data of DHY-501 Multi-functional hydraulic busbar punching cutting bending embossing machine
| Name | DHY-501 Multi-functional hydraulic busbar punching cutting bending embossing machine |
| Functions | Four function:cutting, punching, bending and embossing |
| Dimension | 850mm(L)*750mm(W)*1100mm(H) |
| Input voltage | Single phase 50Hz,220V |
| Rating oil pressure | 700kg/cm2 |
| Cutting force | 25T |
| Cutting range | 150mm(Width)*12mm(Thickness) |
| Punching force | 35T |
| Punching capacity | Φ20.5*12mm |
| Punching range | Impact(Φ7,Φ9,Φ10.5,Φ13.8,Φ17,Φ20.5) |
| Bending force | 25T |
| Bending capacity | 150*12mm |
| Embossing capacity | 150*12.5mm |
| Distance from hole to sheet side | 110mm |
| Weight | 275kg |
