Multi-function Electric Bus-bar Bender
Use and Characteristic
Multi Function Hydraulic Busbar Processor is the combination of punching,bending and cutting.
The manometer with the pressure of 1000kgs/cm makes the process under control,prevent the machine from overloading.
The hand switch can be adjusted easily to control the depth and the width of the sheet
Four direction valve makes the process of punching,bending and cutting go accurately
Reliable and stable foot-type switch
Application :
This processor is suitable for making large electric cabinet ,power distribution cabinets ,switch
cabinets and power transmission and distribution construction engineering construction site use.
Feature :
This machine is with reference to foreign advanced products ,combined with domestic practical
situation , to provide the efficiency and guarantee of safety requirement and the design of form a
complete set of equipment .
Most suitable for making large electric cabinet and transmission and distribution construction
project fields use .High flexibility , small volume , big power , high production capacity and high
work efficiency .Low noise ,harmless processing . Finishing product is beautiful and won't cause
pollution to the environment .
Technical Data
| Product No. | 80098 |
| Model Type | OK-501 |
| Normal Operating Pressure(Psi) | 1000 |
| Power Souce(12V) | 220V/380V 50Hz |
| Output of cutting machine(KN) | 200 |
| Cutting Range(mm) | copper and aluminum≤ 150*12 |
| Output of hole punching machine(KN) | 300 |
| Hole punching range(mm) | Φ11.5 - Φ19.5 |
| Output of bending machine(KN) | 270 |
| Flatting range(mm) | copper and aluminum≤ 120*12 |
| Bending range(mm) | copper and aluminum≤ 120*12 |
| Flatting Angle(°) | 0-135 |
| Bending Angle(°) | 0-90 |
| Weight(kg) | 188 |

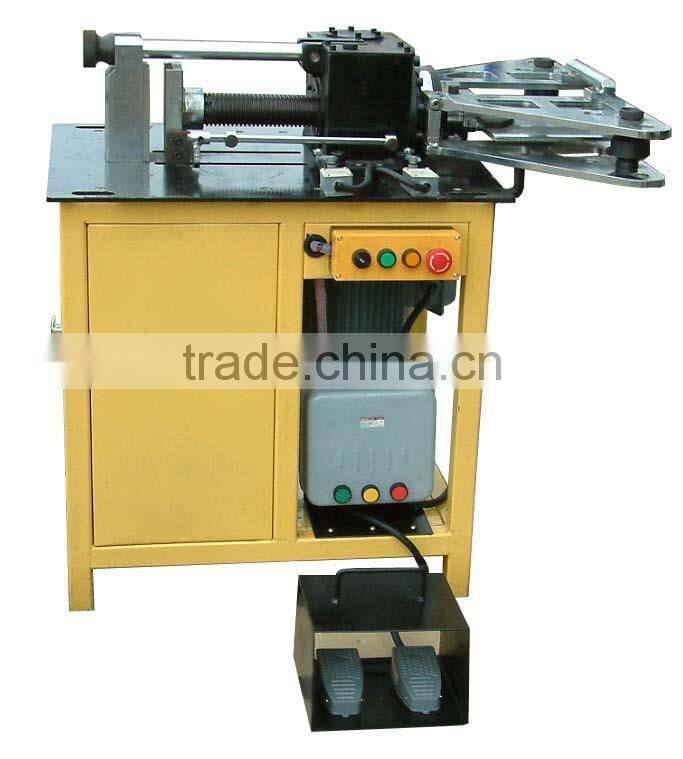

Detail Picture

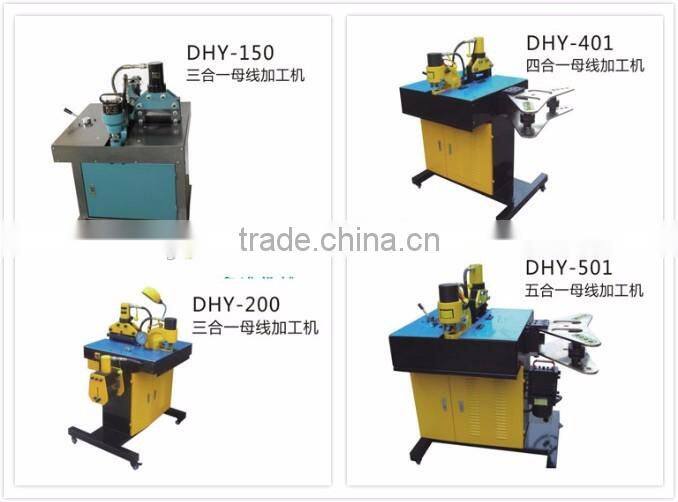

Different Types
DHY-150
| Model NO. | DHY-150 | ||||
| Funtion | Cutting,Punching and Bending | ||||
| Rated Working pressure | 63MPa | ||||
| Power | 750W/220V/50Hz | ||||
| Cutting Force | 15T | ||||
| Cutting Range | Cu/Al 150(width)*10mm(thickness) | ||||
| Punching Force | 20T | ||||
| Punch Range | Cu 10mm,Steel 8mm,Al 12mm | ||||
| Punching Standard Die | 10.5, 13.8, 17, 20.5mm | ||||
| Bending Force | 16T | ||||
| Bending Range | 150(Width)*10mm(Thickness) |
DHY-200
| Model NO. | DHY-200 | ||||
| Funtion | Cutting,Punching and Bending | ||||
| Rated Working pressure | 63MPa | ||||
| Power | 750W/220V/50Hz | ||||
| Cutting Force | 35T | ||||
| Cutting Range | Cu/Al 200(width)*12mm(thickness) | ||||
| Punching Force | 35T | ||||
| Punch Range | Cu 12mm,Steel 10mm,Al 14mm | ||||
| Punching Standard Die | 10.5, 13.8, 17, 20.5mm | ||||
| Bending Force | 20T | ||||
| Bending Range | 200(Width)*12mm(Thickness) |
DHY-401
| Model NO. | DHY-401 | ||||
| Funtion | Cutting,Punching,Flating and Bending | ||||
| Rated Working pressure | 63MPa | ||||
| Power | 750W/220V/50Hz | ||||
| Cutting Force | 35T | ||||
| Cutting Range | Cu/Al 200(width)*12mm(thickness) | ||||
| Punching Force | 35T | ||||
| Punch Range | Cu 12mm,Steel 10mm,Al 14mm | ||||
| Punching Standard Die | 10.5, 13.8, 17, 20.5mm | ||||
| Flat Bending Force | 63MPa | ||||
| Flat Bending Range | Cu/Al width 40,50,60,80,100,120mm | ||||
| Thickness | 4-12mm |
DHY-501
| Model NO. | DHY-501 | ||||
| Funtion | Cutting,Punching,Flating,Bending and Embossing | ||||
| Rated Working pressure | 63MPa | ||||
| Power | 750W/220V/50Hz | ||||
| Cutting Force | 35T | ||||
| Cutting Range | Cu/Al 200(width)*12mm(thickness) | ||||
| Punching Force | 35T | ||||
| Punch Range | Cu 12mm,Steel 10mm,Al 14mm | ||||
| Punching Standard Die | 10.5, 13.8, 17, 20.5mm | ||||
| Flat Bending Force | 63MPa | ||||
| Flat Bending Range | Cu/Al width 40,50,60,80,100,120mm | ||||
| Thickness | 4-12mm | ||||
| Embossing Force | 55T | ||||
| Embossing Thickness | 12.5mm | ||||
| Embossing Force | 150mm |
