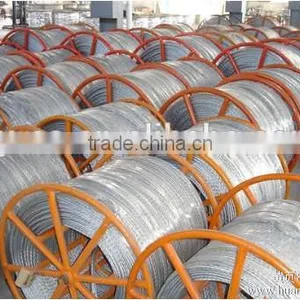

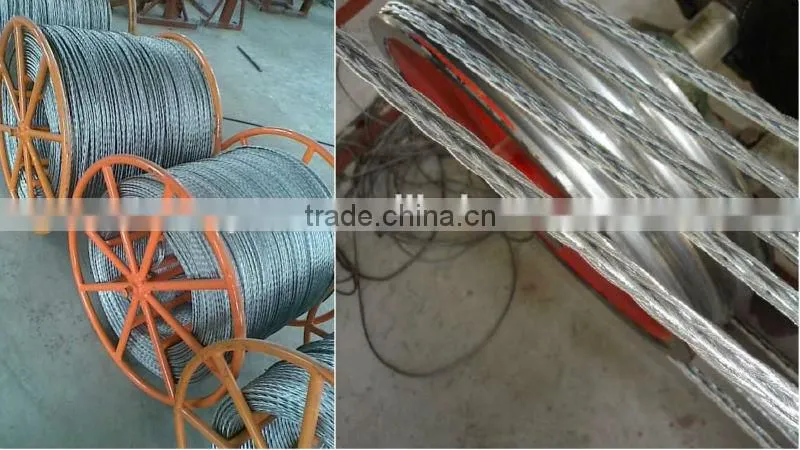

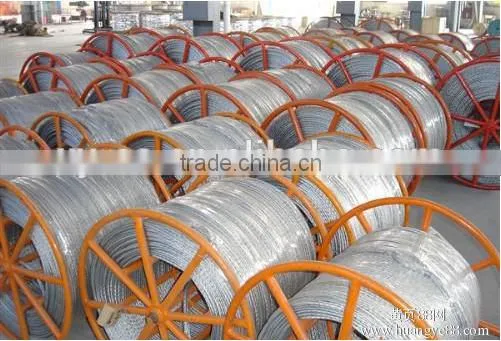

Anti-twisting Woven Wire Rope
Application
Anti-twisting Woven Wire Rope is applied to mechanical pulling and tensioning release conductors.
Characteristics
1. Braided 1960N/mm2 high -strength galvanized steel wire. If need other levels of strength, contact us.
2. It is not available for small diameter grinding core pulling rope.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1:Take First-Class Quality as Target and First-class Service.
2:As Responsibility, To Succeed By Scientific Management.
3:Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data for Anti-twisting Woven Wire Rope
| Product No. | Structure | Diameter(mm) | Single bundle diameter(mm) | Breaking Force(KN) |
| 80237 | Four Square eight shares | 7 | 2.0 | 28.6 |
| 80238 | 9 | 2.5 | 45.3 | |
| 80239 | 11 | 3.0 | 65.2 | |
| 80240 | 13 | 3.5 | 88.1 | |
| 80241 | 15 | 4.0 | 116.6 | |
| 80242 |
Six Square twelve shares |
9 | 2.0 | 20.27 |
| 80243 | 11 | 2.5 | 92.27 | |
| 80244 | 13 | 3.0 | 110.26 | |
| 80245 | 15 | 3.2 | 130.52 | |
| 80246 | 17 | 3.5 | 151.20 | |
| 80247 | 20 | 4.2 | 224.4 | |
| 80248 | 22 | 4.8 | 307.2 | |
| 80249 | 24 | 5.1 | 343.34 | |
| 80250 | 26 | 5.6 | 382.26 |
