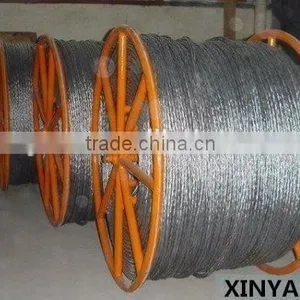

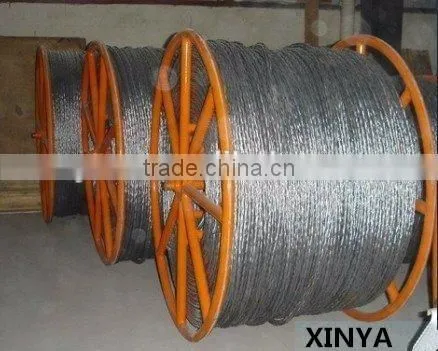

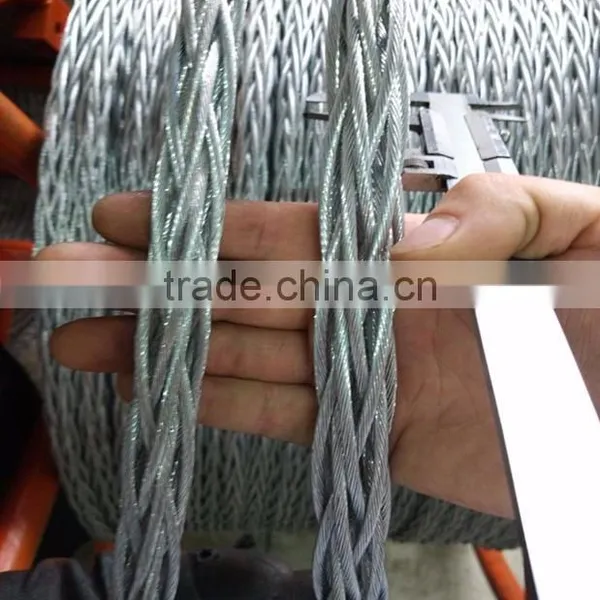

High Breaking Force Galvanized Steel Anti-Twist briaded rope
ISO9001:2008 certified.
CE approved.
Application

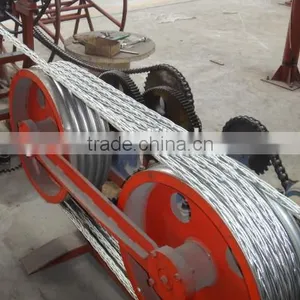

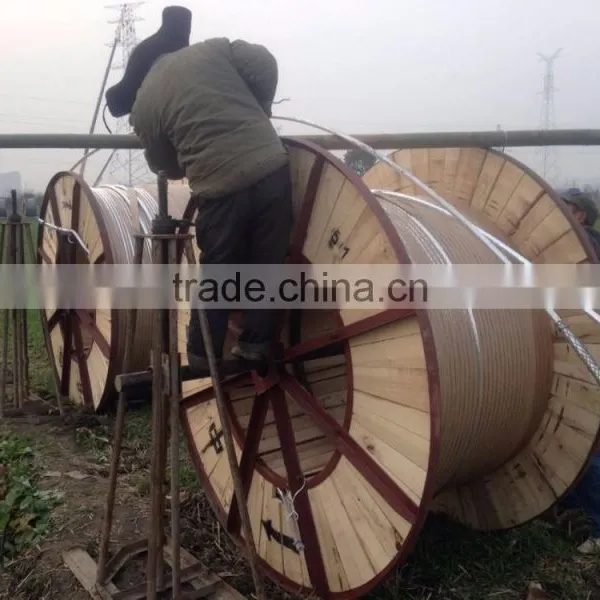

It is specially braided from galvanized steel wire and widely used as pilot rope in overhead power transmission line stringing operation.Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.
Features
The rotation angle is zero,and the combined rotation torque is also zero while it is bearing tension at free state .It is suitable to be used in various fields which require wire rope with no rotation .
The wire rope has fine flexibility with long using life .There is no twist and no tangling up when the tension released. You can change the length and repair local damage by grafting ,which will not reduce the flexibility. Hexagon is more suitable for puller, tensioner,winch, hoisting etc .
Technical Data
| Model | Structure |
Nominal Dia (mm) |
Single bundle Dia (mm) |
Ref Weight (kg/100m) |
Breaking Force(KN) |
Standard Length (m) |
|
| HL9-12×19W | Hexagon with 12 strands | 9 | 2.0 | 26.69 | 55.0 | 1000 | |
| HL11-12×19W | Hexagon with 12 strands | 11 | 2.5 | 45.73 | 80.5 | 1000 | |
| HL13-12×19W | Hexagon with 12 strands | 13 | 3.0 | 57.96 | 120.0 | 1000 | |
| HL16-12×19W | Hexagon with 12 strands | 16 | 3.5 | 82.80 | 158.0 | 1000 | |
| HL18-12×19W | Hexagon with 12 strands | 18 | 4.0 | 103.82 | 210.0 | 1000 | |
| HL20-12×T25Fi | Hexagon with 12 strands | 20 | 4.5 | 129.62 | 250.0 | 800 | |
| HL22-12×T25Fi | Hexagon with 12 strands | 22 | 4.8 | 147.88 | 320.0 | 800 | |
| HL24-12×T25Fi | Hexagon with 12 strands | 24 | 5.0-5.2 | 160.23 | 360.0 | 800 | |
| HL26-12×T25Fi | Hexagon with 12 strands | 26 | 5.5-5.6 | 193.71 | 420.0 | 700 | |
| HL28-12×T29Fi | Hexagon with 12 strands | 28 | 6.0 | 230.50 | 480.0 | 500 | |
| HL30-12×T29Fi | Hexagon with 12 strands | 30 | 6.5 | 272.04 | 540.0 | 500 | |
| HL20-18×19W | Hexagon with 18 strands | 20 | 4.0 | 159.80 | 300.0 | 800 | |
| HL22-18×T25Fi | Hexagon with 18 strands | 22 | 4.2 | 189.80 | 389.0 | 800 | |
| HL24-18×T25Fi | Hexagon with 18 strands | 24 | 4.8 | 216.20 | 440.0 | 800 | |
| HL26-18×T25Fi | Hexagon with 18 strands | 26 | 5.2 | 276.80 | 480.0 | 700 | |
| HL28-18×T29Fi | Hexagon with 18 strands | 28 | 5.4 | 301.20 | 580.0 | 500 | |
| HL30-18×T29Fi | Hexagon with 18 strands | 30 | 5.6 | 361.60 | 658.0 | 500 | |
| HL32-18×T29Fi | Hexagon with 18 strands | 32 | 6.0 | 423.00 | 780.0 | 500 |
Note:
The single length of rope can be made according to your requirement.
