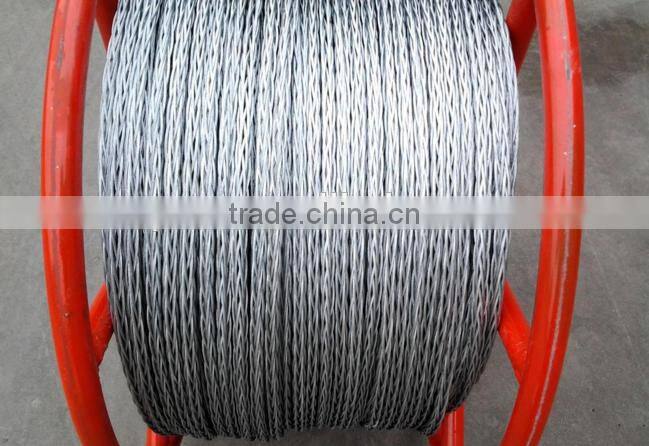

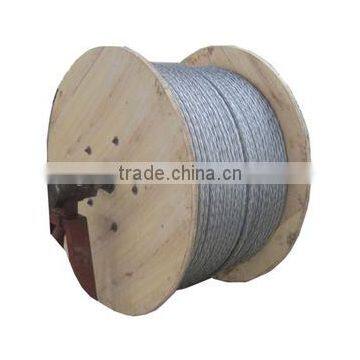

Galvanized Steel Anti Twist Braid Rope / Wire Rope for Transmission Line Stringing
US$ 0.4 - 6
MOQ: 500 Meters
Key Specifications
Get Latest Price
Steel Grade:
wire
Standard:
ASTM, BS, DIN, GB
Wire Gauge:
7-15mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Galvanized Steel Anti Twist Braid Rope / Anti Twist Wire Rope for Transmission Line StringingUS$ 0.5 - 5MOQ: 500 Meters -
Conductors Stringing Anti Twist Wire Rope 9mm Galvanized Braided for Power Line 6 SquaresUS$ 0.4 - 6MOQ: 500 Meters
-
Anti Twisted Pilot Rope Hexagon With 12 Strands GalvanizedUS$ 1 - 3MOQ: 1000 Meters
-
Anti Twisted Steel Wire Rope Hexagon 12 Strands 18 StrandsUS$ 1 - 3MOQ: 1000 Meters
-
Galvanized Anti-twisting Braided Wire RopeNegotiableMOQ: 500 Meters
Steel Grade
wire
Standard
ASTM, BS, DIN, GB
Wire Gauge
7-15mm
Place of Origin
Jiangsu, China
Type
Galvanized
Application
Other, Construction, crane
Alloy Or Not
Non-alloy
Special Use
Free Cutting Steel
Model Number
Four square
Brand Name
XINYA, XINYA
Galvanized Steel Anti Twist Braid Rope / Anti Twist Wire Rope for Transmission Line Stringing
Application

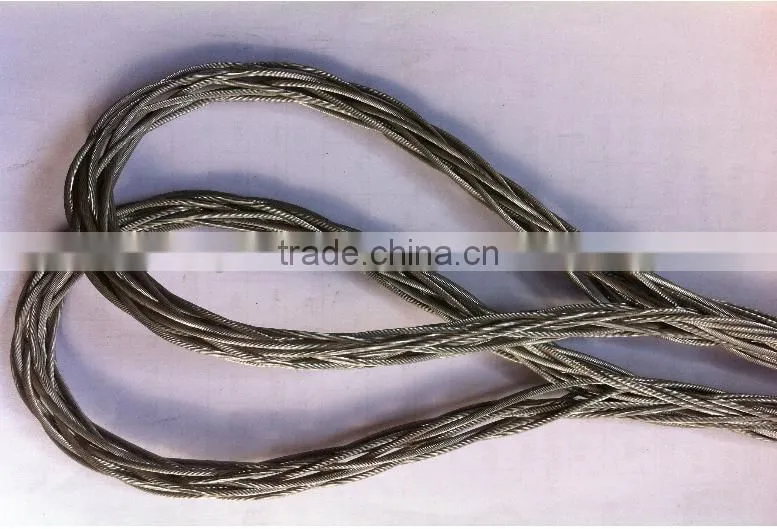

It is specially braided from galvanized steel wire and widely used as pilot rope in overhead power transmission line stringing operation.
Features
- The rotation angle is zero,and the combined rotation torque is also zero while it is bearing tension at free state .It is suitable to be used in various fields which require wire rope with no rotation .
- The wire rope has fine flexibility with long using life .There is no twist and no tangling up when the tension released. You can change the length and repair local damage by grafting ,which will not reduce the flexibility.
- Hexagon is more suitable for puller, tensioner,winch, hoisting etc .
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1, Take First-Class Quality as Target and First-class Service.
2, As Responsibility, To Succeed By Scientific Management.
3, Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data
| Model | Structure |
Nominal Dia (mm) |
Single bundle Dia (mm) |
Ref Weight (kg/100m) |
Breaking Force(KN) |
Standard Length (m) |
|
| HL9-12×19W | Hexagon with 12 strands | 9 | 2.0 | 26.69 | 55.0 | 1000 | |
| HL11-12×19W | Hexagon with 12 strands | 11 | 2.5 | 45.73 | 80.5 | 1000 | |
| HL13-12×19W | Hexagon with 12 strands | 13 | 3.0 | 57.96 | 120.0 | 1000 | |
| HL16-12×19W | Hexagon with 12 strands | 16 | 3.5 | 82.80 | 158.0 | 1000 | |
| HL18-12×19W | Hexagon with 12 strands | 18 | 4.0 | 103.82 | 210.0 | 1000 | |
| HL20-12×T25Fi | Hexagon with 12 strands | 20 | 4.5 | 129.62 | 250.0 | 800 | |
| HL22-12×T25Fi | Hexagon with 12 strands | 22 | 4.8 | 147.88 | 320.0 | 800 | |
| HL24-12×T25Fi | Hexagon with 12 strands | 24 | 5.0-5.2 | 160.23 | 360.0 | 800 | |
| HL26-12×T25Fi | Hexagon with 12 strands | 26 | 5.5-5.6 | 193.71 | 420.0 | 700 | |
| HL28-12×T29Fi | Hexagon with 12 strands | 28 | 6.0 | 230.50 | 480.0 | 500 | |
| HL30-12×T29Fi | Hexagon with 12 strands | 30 | 6.5 | 272.04 | 540.0 | 500 | |
| HL20-18×19W | Hexagon with 18 strands | 20 | 4.0 | 159.80 | 300.0 | 800 | |
| HL22-18×T25Fi | Hexagon with 18 strands | 22 | 4.2 | 189.80 | 389.0 | 800 | |
| HL24-18×T25Fi | Hexagon with 18 strands | 24 | 4.8 | 216.20 | 440.0 | 800 | |
| HL26-18×T25Fi | Hexagon with 18 strands | 26 | 5.2 | 276.80 | 480.0 | 700 | |
| HL28-18×T29Fi | Hexagon with 18 strands | 28 | 5.4 | 301.20 | 580.0 | 500 | |
| HL30-18×T29Fi | Hexagon with 18 strands | 30 | 5.6 | 361.60 | 658.0 | 500 | |
| HL32-18×T29Fi | Hexagon with 18 strands | 32 | 6.0 | 423.00 | 780.0 | 500 |
Note:
The single length of rope can be made according to your requirement.
