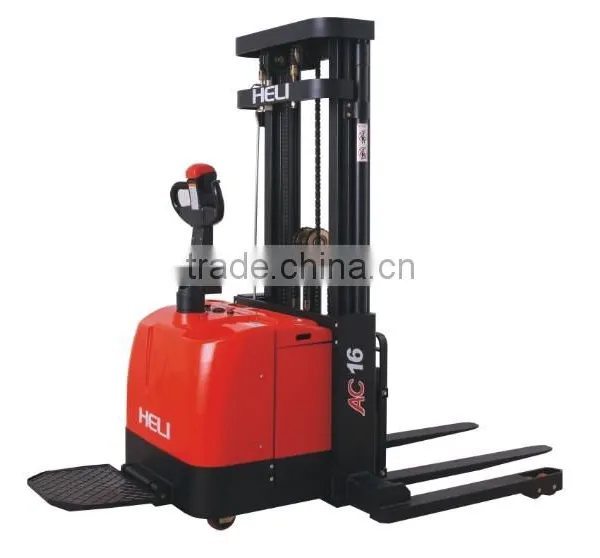

Help CenterChina Top1 Manufacturer New Condition HELI Pallet Stacker Electric
Related Products
-
Anhui HELI Small Electric Pallet TruckUS$ 1 - 2,000MOQ: 10 Pieces -
China Top1 Manufacturer HELI Brand CDD16 1.6Ton Forklift Electric Pallet StackerUS$ 5,000 - 30,000MOQ: 1 Set
-
Top 1 China Heli Brand 1.2Ton Full Electric Stacker PriceUS$ 5,000 - 30,000MOQ: 1 Set
-
HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKERUS$ 4,000 - 7,000MOQ: 1 Set
-
China Top1 Brand Heli 2 Ton Electric Powered Pallet StackerUS$ 5,000 - 7,000MOQ: 1 Set
Shanghai heli forklift Co.,ltd is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.
heli pallet stacker electric
| Feature | unit | ||
| 1 | Model | CDD16 | |
| 2 | Configuration No. | 360 | |
| 3 | Type | Wide legs | |
| 4 | Mast type | Full free 3-Stage | |
| 5 | Load capacity | kg | 1600 |
| 6 | Load center | mm | 600 |
| 7 | Wheel base | mm | 1375 |
| 8 | Operating type | Walkie / Stand On | |
| Wheels | |||
| 9 | Wheels type | PU | |
| 10 | Wheel quantity Driving wheel/Balance wheel/Bearing wheel |
1/2/4 | |
| Dimension | |||
| 11 | Standard lift height | mm | 5300 |
| 12 | Lowered fork height | mm | 85 |
| 13 | Fork size(length/width/thickness) | mm | 1070/100/40 |
| 14 | Overall length | mm | 2073/2493 |
| 15 | Overall width | mm | 1320/1470/1650 |
| 16 | Outside width between legs | mm | 1170/1320/1470/1650 |
| 17 | Inside width between legs | mm | 970/1120/1270/1450 |
| 18 | Min.Turning radius | mm | 1630/2040 |
| 19 | Min.Aisle width for pallets 800×1200 | mm | 2230/2625 |
| 20 | Min.Aisle width for pallets 1000×1200 | mm | 2260/2650 |
| 21 | Min.ground clearance | mm | 30 |
| Performance | |||
| 22 | Travel speed,laden/unladen | km/h | 5/5 |
| 23 | Lift speed,laden/unladen | mm/s | 130/230 |
| 24 | Travel speed,laden/unladen | mm/s | 130/230 |
| 25 | Gradeability,laden/unladen | % | 5/7 |
| Electrical configuration | |||
| 26 | Drive motor / Lift motor /Steering motor | KW | AC1.5/DC3/DC0.15 |
| 27 | Battery voltage | V | 24 |
| 28 | Battery capacity | Ah | 280 |
| 29 | Brake | Electromagnetic / Regenerative | |
| 30 | Controller | CURTIS 1232 | |
| Weight | |||
| 31 | Battery weight | kg | 235 |
| 32 | Service weight with battery | kg | 1680 |
1.Well-Know Trademark Of China
2. First Brand of in Forklift Market in China
3. First Brand Of Indepent Innovation Forklift in China
4. AAA-Class Quality Service of China
5. Professional design team and work fast sales department of your service
6. Ranking 8th in Forklift Manufacturing Industry in the World
7. Alibaba golden supplier,VIP trade assurance supplier
8. Professional Components(Forklift Parts) Manufacturing,So that We can supply whole series HELI forklift parts
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
