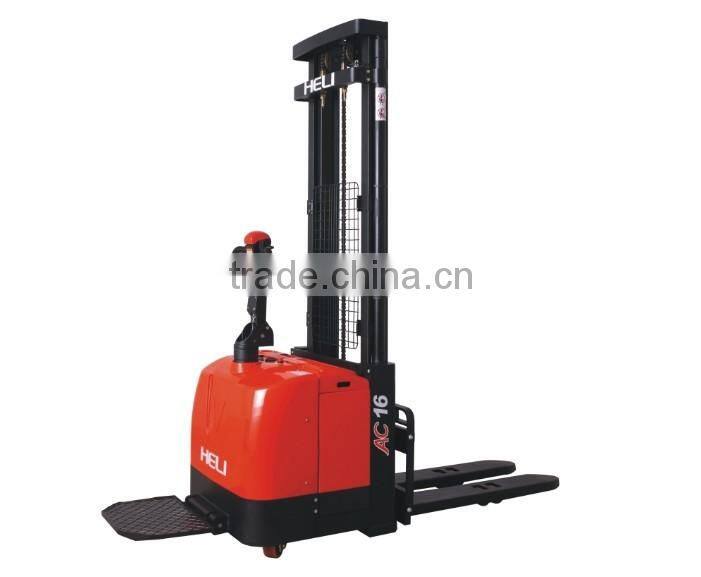

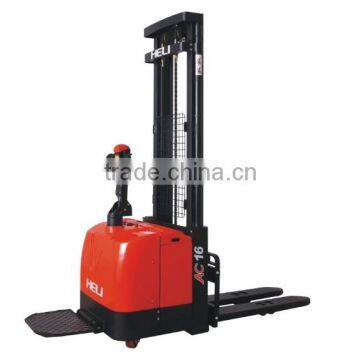

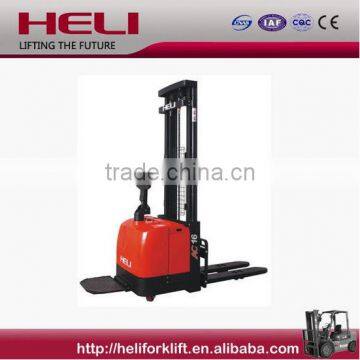

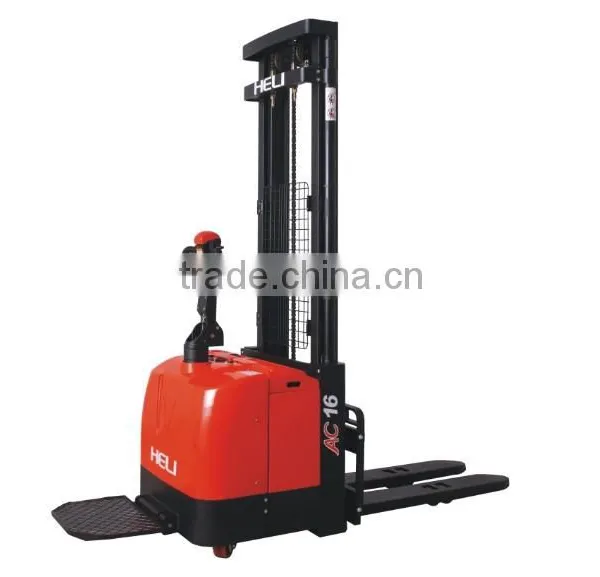

Small electric pallet truck
| Feature | Unit | ||
| 1 | Model | CDD16-D930 | |
| 2 | Configuration No. | D930 | |
| 3 | Type | Narrow legs | |
| 4 | Mast type | 2-Stage STD | |
| 5 | Load capacity | kg | 1600 |
| 6 | Load center | mm | 600 |
| 7 | Wheel base | mm | 1325 |
| 8 | Operating type | Walkie / Stand On | |
| Wheels | |||
| 9 | Wheels type | PU | |
| 10 | Wheel quantity Driving wheel/Balance wheel/Bearing wheel |
1/2/4 | |
| Dimension | |||
| 11 | Standard lift height | mm | 3000 |
| 12 | Lowered fork height | mm | 86 |
| 13 | Fork size(length/width/thickness) | mm | 1150/185/55 |
| 14 | Overall length | mm | 2050/2470 |
| 15 | Overall width | mm | 856 |
| 16 | Outside width between legs | mm | 550/600/650/685 |
| 17 | Inside width between legs | mm | 180/230/280/315 |
| 18 | Min.Turning radius | mm | 1580/1990 |
| 19 | Min.Aisle width for pallets 800×1200 | mm | 2180/2580 |
| 20 | Min.Aisle width for pallets 1000×1200 | mm | 2210/2600 |
| 21 | Min.ground clearance | mm | 30 |
| Performance | |||
| 22 | Travel speed,laden/unladen | km/h | 5/5 |
| 23 | Lift speed,laden/unladen | mm/s | 130/230 |
| 24 | Travel speed,laden/unladen | mm/s | 130/230 |
| 25 | Gradeability,laden/unladen | % | 5/7 |
| Electrical configuration | |||
| 26 | Drive motor / Lift motor /Steering motor | KW | AC1.5/DC3/DC0.15 |
| 27 | Battery voltage | V | 24 |
| 28 | Battery capacity | Ah | 280 |
| 29 | Brake | Electromagnetic / Regenerative | |
| 30 | Controller | CURTIS 1232 | |
| Weight | |||
| 31 | Battery weight | kg | 235 |
| 32 | Service weight with battery | kg | 1240 |
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
1. What is your terms of package?
A: We pack our goods with HELI brand boxes and cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
2. What is your terms of payment?
A: We can accept the terms of payment is L/C at sight, T/T, D/P, Western Union ,cash .
3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
4. How about your delivery time?
A: Generally, it will take two week after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.If we have stock about your order,just 1-2 Days.
5. What is your sample policy?
A: We are honored to offer you samples.Please pay the sample charge and postage in advance. We accept the sample payment via Western Union or T/T.
6: What's the MOQ?
The minimum order amount should be at least USD10000.00.
