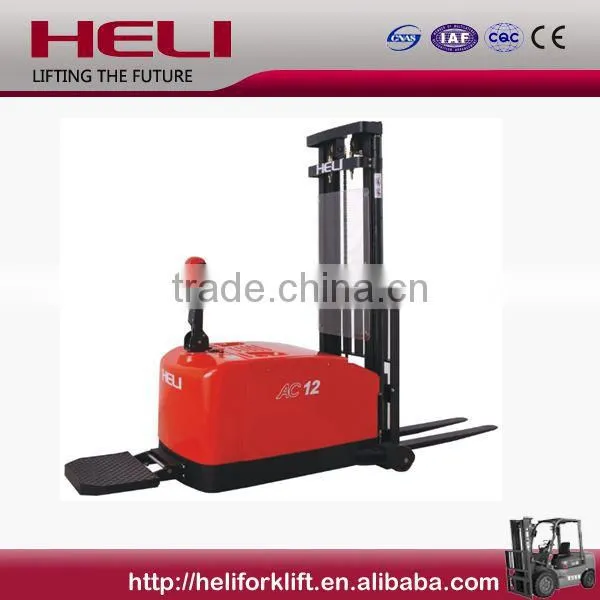

HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKER

HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKER thumbnail-1
HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKER thumbnail-2
HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKER thumbnail-3
HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKER thumbnail-4
HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKER photo-1
HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKER photo-2
HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKER photo-3
HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKER photo-4
US$ 4,000 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HELI BRAND
Contact Supplier Request Quote Chat Now
Shanghai Hanli Industrial Vehicle Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name HELI BRAND
Model Number CDD12-970
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1.2T
Max. Lifting Height 3000mm ( Optional )
Min. Lifting Height 83mm
Fork Length 1070mm
Fork Width 100mm
Overall Dimensions 2502X1015X3000mm
Certification ISO9001,ISO14001,OHASA18001,CE
After-sales Service Provided No overseas service provided

 HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKER



Product Description



  Feature Unit
1 Model   CDD12
2 Configuration No.   970
3 Type   Counterbalanced
4 Mast type   2-Stage STD
5 Load capacity kg 1200
6 Load center mm 500
7 Wheel base mm 1179
8 Operating type   Walking type   / Driving type
  Wheels
9 Wheels type   PU
10 Wheel quantity
Driving wheel/Balance wheel/Bearing wheel 		  1/0/2
  Dimension
11 Standard lift height mm 3000
12 Lowered fork height mm 55
13 Fork size(length/width/thickness) mm 1070/100/40
14 Overall length mm 2502/3012
15 Overall width mm 1015
16 Max extend height mm 4000
17 Mast lowered height mm 2030
18 Min.Turning radius mm 1352/1852
19 Min.Aisle width for pallets 800×1200 mm 2685/3175
20 Min.Aisle width for pallets 1000×1200 mm 2715/3195
21 Min.ground clearance mm 80
  Performance
22 Travel speed,laden/unladen km/h 5/5
23 Lift speed,laden/unladen mm/s 130/230
24 Travel speed,laden/unladen mm/s 130/230
25 Gradeability,laden/unladen % 5/7
  Electrical configuration
26 Drive motor / Lift motor /Steering motor KW AC1.5/DC3/DC0.15
27 Battery voltage V 24
28 Battery capacity Ah 270
29 Brake   Electromagnetic / Regenerative
30 Controller   CURTIS 1232
  Weight
31 Battery weight kg 245
32 Self weight with battery kg 1800

 HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKERHELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKER

Company Information

Shanghai heli forklift Co.,ltd is one holding company  of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its  the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.





Principal structure
No. Part Description Place of origin Specification Brand
1 Driving motor China AC1.5 KW HELI
2 Water pump China 24V/3KW Shanghai
3 Steering motor China 24V/0.15KW HELI
4 Driving controller Import CURTIS 1232 America CURTIS
5 Steering controller China 24V/25A HELI
6 Battery China 210/280 Ah Jiansu
7 Driving wheel China Polyurethane HELI
8 Charger China 220V/50A HELI
9 Contactor Import SW180 ALLBRIGHT
10 Gear pump China   HELI
11 Connector Import AMP America
12 Bearing Import NSK Japan





Advantages:





 (1) With advanced EPS electronic power steering system, light steering force, lower energy

         consumption,efficient mute.

 (2) AC Driving motor, non-carbonate,free for maintenance, reduce maintenance cost

 (3) Hydraulic system with double solenoid valve and three kinds of drop-speed mode;

 (4) With unique boosting cylinder configuration, ensure more traction in vehicles and prevent skidding;

 (5) Standard lifting power limiting function, reduce the waste of energy, prolong the service life of the

         hydraulic system and the associated component;

 (6) With reliable performance of American Curtis controller, and have stepless speed&automatic self -protection

        function;

(7)High wear-resistant polyurethane tyre, good elasticity, strong bearing capacity;

(8)Steering position use contactless proximity switch, reliable quality, long service life;

(9) Automatic deceleration curve, double safety protection for personnel and cargo ;

(10) High lifting and automatic speed limitingdevice is optional, more safety for operation.

Why Choose Heli ?

1.Well-Know Trademark Of China

2.First Brand of in Forklift Market in China

3.First Brand Of Indepent Innovation Forklift in China

4.AAA-Class Quality Service of China

5.Professional design team and work fast sales department of your service

6.Alibaba golden supplier,VIP trade assurance supplier

7.Ranking 8th in Forklift Manufacturing Industry in the World

8.Ourselves' Product R&D PlatForm
9.Perfect Manufacturing System
10.Professional Components(Forklift Parts) Manufacturing,So that We can supply whole series HELI forklift parts





Customer Visiting

HELI BRAND CHINA ELECTRIC MANUAL STACKER 1.2T CDD12-970 FORKLIFT STACKER



World Wide Market

HELI is authorized with the independent  export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60  countries.
