China Top1 Manufacturer HELI Brand CDD16 5.8m Lifting Height Electric High Lift Pallet Truck

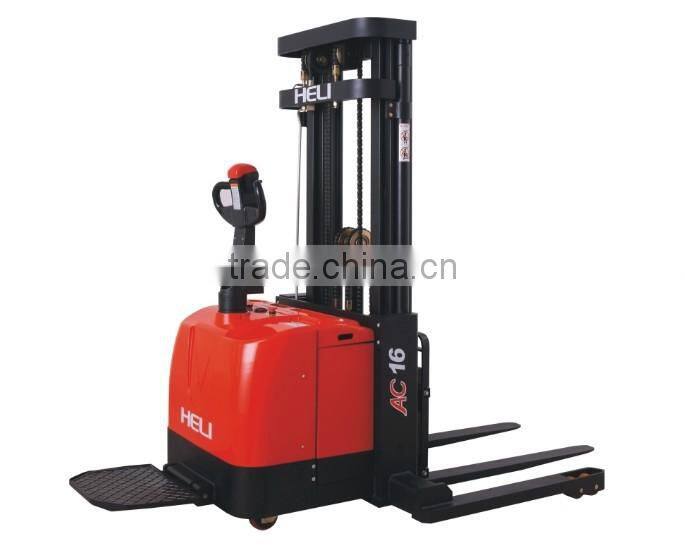

China Top1 Manufacturer HELI Brand CDD16 5.8m Lifting Height Electric High Lift Pallet Truck photo-1

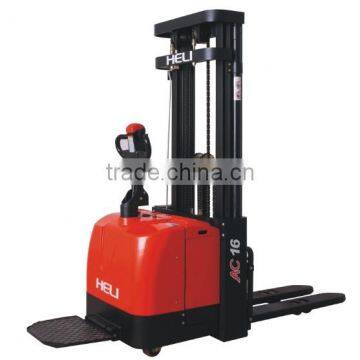

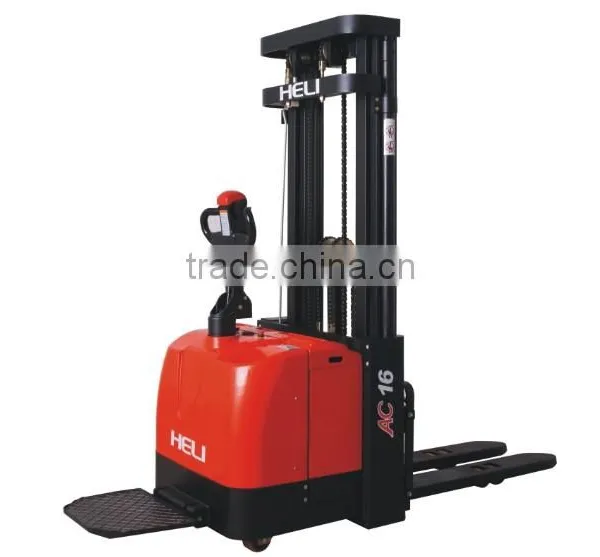

China Top1 Manufacturer HELI Brand CDD16 5.8m Lifting Height Electric High Lift Pallet Truck photo-2
China Top1 Manufacturer HELI Brand CDD16 5.8m Lifting Height Electric High Lift Pallet Truck photo-3
China Top1 Manufacturer HELI Brand CDD16 5.8m Lifting Height Electric High Lift Pallet Truck photo-4
China Top1 Manufacturer HELI Brand CDD16 5.8m Lifting Height Electric High Lift Pallet Truck photo-5
US$ 5,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HELI BRAND
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Anhui, China
Brand Name HELI BRAND
Model Number CDD16-350
Type Other, Electric Battery forklift
Power Souce AC Motor
Rated Loading Capacity 1.6Ton
Max. Lifting Height 5800mm ( Optional )
Min. Lifting Height 85mm
Fork Length 1150mm(1220)
Fork Width 185mm
Overall Dimensions 2050X856X86mm
Certification ISO9001,ISO14001,OHASA18001,CE
After-sales Service Provided No overseas service provided
Product Description



 Featureunit
1Model CDD16
2Configuration No. 350
3Type Narrow legs
4Mast type  Full free 3-Stage
5Load capacitykg1600
6Load centermm600
7Wheel basemm1375
8Operating type Walkie  /  Stand On
 Wheels
9Wheels type PU
10Wheel quantity
Driving wheel/Balance wheel/Bearing wheel
 1/2/4
 Dimension
11Standard lift heightmm5800
12Lowered fork heightmm90
13Fork size(length/width/thickness)mm11500/185/55
14Overall lengthmm2105/2525
15Overall widthmm957
16Outside width between legsmm--
17Inside width between legsmm--
18Min.Turning radiusmm1630/2040
19Min.Aisle width for pallets 800×1200mm2230/2625
20Min.Aisle width for pallets 1000×1200mm2260/2650
21Min.ground clearancemm30
 Performance
22Travel speed,laden/unladenkm/h5/5
23Lift speed,laden/unladenmm/s130/230
24Travel speed,laden/unladenmm/s130/230
25Gradeability,laden/unladen%5/7
 Electrical configuration
26Drive motor / Lift motor /Steering motor KWAC1.5/DC3/DC0.15
27Battery voltageV24
28Battery capacityAh280
29Brake Electromagnetic / Regenerative
30Controller CURTIS 1232
 Weight
31Battery weightkg250
32Service weight with batterykg1610



Company Information

Shanghai heli forklift Co.,ltd is one holding company  of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its  the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.

China Top1 Manufacturer HELI Brand CDD16 5.8m lifting height electric high lift pallet truck

Video Demo

China Top1 Manufacturer HELI Brand CDD16 5.8m lifting height electric high lift pallet truck Online video demo of  heli forklift:  https://youtu.be/GAv9g8DoVxA

Customer Visiting

China Top1 Manufacturer HELI Brand CDD16 5.8m lifting height electric high lift pallet truck

HELI Parts Room Show



Heli Forklift Show



World Wide Market

HELI is authorized with the independent  export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60  countries.
