| Feature | Unit | ||

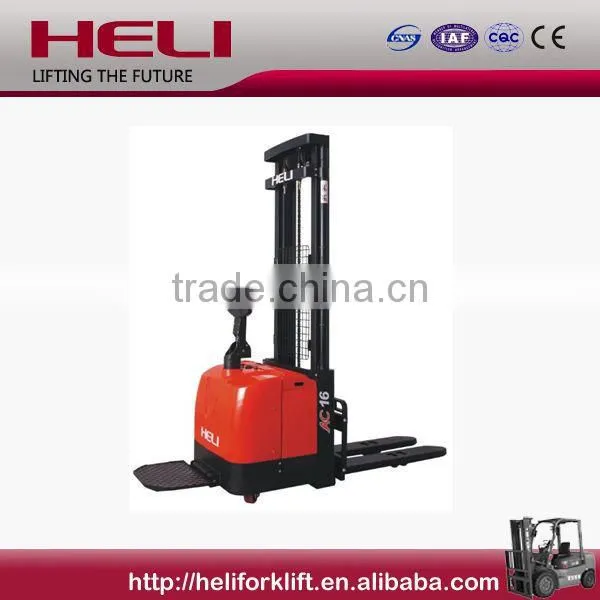

| 1 | Model | CDD16 | |
| 2 | Configuration No. | D930 | |
| 3 | Type | Narrow legs | |
| 4 | Mast type | 2-Stage STD | |
| 5 | Load capacity | kg | 1600 |
| 6 | Load center | mm | 600 |
| 7 | Wheel base | mm | 1325 |
| 8 | Operating type | Walking type / Driving type | |
| Wheels | |||
| 9 | Wheels type | PU | |
| 10 | Wheel quantity Driving wheel/Balance wheel/Bearing wheel | 1/2/4 | |
| Dimension | |||
| 11 | Standard lift height | mm | 3000 |
| 12 | Lowered fork height | mm | 86 |
| 13 | Fork size(length/width/thickness) | mm | 1150/185/55 |
| 14 | Overall length | mm | 2050/2470 |
| 15 | Overall width | mm | 856 |
| 16 | Outside width between legs | mm | 550/600/650/685 |
| 17 | Inside width between legs | mm | 180/230/280/315 |
| 18 | Min.Turning radius | mm | 1580/1990 |
| 19 | Min.Aisle width for pallets 800×1200 | mm | 2180/2580 |
| 20 | Min.Aisle width for pallets 1000×1200 | mm | 2210/2600 |
| 21 | Min.ground clearance | mm | 30 |
| Performance | |||
| 22 | Travel speed,laden/unladen | km/h | 5/5 |
| 23 | Lift speed,laden/unladen | mm/s | 130/230 |
| 24 | Travel speed,laden/unladen | mm/s | 130/230 |
| 25 | Gradeability,laden/unladen | % | 5/7 |
| Electrical configuration | |||
| 26 | Drive motor / Lift motor /Steering motor | KW | AC1.5/DC3/DC0.15 |
| 27 | Battery voltage | V | 24 |
| 28 | Battery capacity | Ah | 280 |
| 29 | Brake | Electromagnetic / Regenerative | |
| 30 | Controller | CURTIS 1232 | |
| Weight | |||
| 31 | Battery weight | kg | 235 |
| 32 | Self weight with battery | kg | 1240 |
| Principal structure | ||||
| No. | Part Description | Place of origin | Specification | Brand |
| 1 | Driving motor | China | AC1.5 KW | HELI |
| 2 | Water pump | China | 24V/3KW | SHNGHAI |
| 3 | Steering motor | China | 24V/0.15KW | HELI |
| 4 | Driving mcontroller | Import | CURTIS 1232 | America CURTIS |
| 5 | Steering controller | China | 24V/25A | HELI |
| 6 | Battery | China | 210/280 Ah | Jiangsu |
| 7 | Driving wheel | China | Polyurethane | HELI |
| 8 | Charger | China | 220V/50A | HELI |
| 9 | Contactor | Import | SW180 | Britian ALLBRIGHT |
| 10 | Gear pump | China | HELI | |
| 11 | Connector | Import | AMP | America |
| 12 | Bearing | Import | NSK | Japan |
Advantages:
(1)With advanced EPS electronic power steering system, light steering force, lower energy
consumption, efficient mute.
(2) AC Driving motor, non-carbonate, free for maintenance, reduce maintenance cost
(3)Hydraulic system with double solenoid valve and three kinds of drop-speed mode;
(4) With unique boosting cylinder configuration, ensure more traction in vehicles and prevent skidding;
(5) Standard lifting power limiting function, reduce the waste of energy, prolong the service life of the
hydraulic system and the associated component;
(6)With reliable performance of USA Curtis controller, and have stepless speed&automatic self -protection
function;
(7)Highwear-resistant polyurethane tyre, good elasticity, strong bearing capacity;
(8)Steering position use contactless proximity switch, reliable quality, long service life;
(9) Using side-pull-way of battery, convenient and fast for replacing it;
(10)Automatic deceleration curve, double safety protection for personnel and cargo ;
(11)High lifting and automatic speed limiting device is optional, more safety for operation.

HELI Company Warehouse:
HELI Company Culture Show:
Parts Supply Including:
1.Genuine parts from the source parts manufacturer for China HELI brand forklift spare parts.
2.Chinese made forklift like counterbalanced forklift , electric battery pallet truck, electric
carrier stacker,Hydraulic system forklift, diesel forklift and so on.
(1) IN GENRAL, WE DELIVERY BT SEA, TO MAIN COUNTRIESE INCLUDING SOUTH AMERICA, AFRICA,
OCEANIA AND EUROPE ETC.
(2) FOR NEIGHBOURHOOD CUNTRIES OF CHINA, INCLUDING KAZAKHSTAN,UZBEKISTAN ETC. WE CAN SHIP
BY ROAD OR RAILWAY.
(3) FOR SOME SPARE PARTS URGENTLY, WE USUALLY DELIVERY BY INTERNATIONAL COURIER SERVICE SUCH
AS DHL, TNT, UPS AND SO ON.
SHANGHAI HELI FORKLIFT TRUCK CO.,LTD IS ONE HOLDING COMPANY OF ANHUI HELI CO.,LTD,FOUNDED IN 2001, IT IS MAINLY ENGAGED IN R&D AND MANUFACTURING OF INDUSTRIAL VEHICLES, CONSTRUCTION NACHINERY AND KEY COMPONENTS, AND OUR FACTORY IS IN ANHUI HELI, AT PRESENT, ITS THE EXPORT BASE OF INDUSTRIAL VEHICLES WIITH LARGEST SCALE, THE MOST COMPLETE INDUSTRY CHAIN, AND THE BEST COMPREHENSIVE AND ECONOMIC PERFORMANCE IN CHINA, IT OWENS A NATIONAL-LEVEL "ENTERPRISE TECHNICAL CENTRE" AND IT HAS BEEN AWARDED AS :NATIONAL INNOVATIVE ENTERPRISE ","STATE-HIGH-TECH ENTERPRISE IN NATIONAL TORCH PROJECT"."HELI' TRADEMARK IS THE "WELL KNOWN TRADEMARK OF CHINA".
