Shanghai heli forklift Co.,ltd is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.
| Feature | Unit | ||

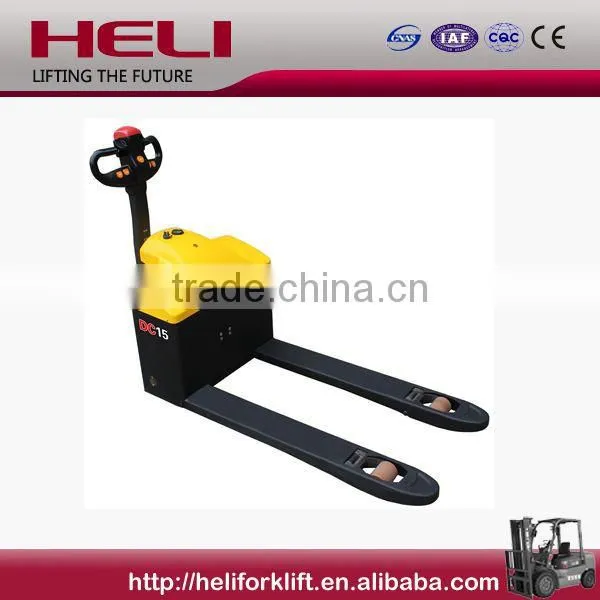

| 1 | Model | CBD15 | |
| 2 | Configuration No. | 170G | |
| 3 | Load capacity | kg | 1500 |
| 4 | Load center | mm | 600 |
| 5 | Wheel base | mm | 1301 |
| 6 | Operating type | Walking type | |
| Wheels | |||
| 7 | Wheels type | PU | |
| 8 | Wheel quantity Driving wheel/Balance wheel /Bearing wheel | 1/0/4 | |
| 9 | Driving wheel size | mm | Φ 252*67 |
| 10 | Balance wheel size | mm | Φ 84×70 (Double wheels) |
| 11 | Bearing wheel size | mm | - |
| Dimension | |||
| 12 | Min.fork lowered height | mm | 85 |
| 13 | Max.fork lifting height | mm | 205 |
| 14 | Max.lifting height | mm | 120 |
| 15 | Outside width between forks | mm | 550/600/650/685 |
| 16 | Inside width between forks | 230/280/330/365 | |
| 17 | Fork length | mm | 1150/1200 |
| 18 | Fork width | mm | 160 |
| 19 | Fork thickness | mm | 55 |
| 20 | Overall length | mm | 1707 |
| 21 | Overall width | mm | 697 |
| 22 | Overall height(With handle) | mm | 1181 |
| 23 | Overall height(Without handle) | mm | 714 |
| 24 | Min.Turning radius | mm | 1547 |
| 25 | Min.Aisle width for pallets 800×1200 | mm | 1920 |
| 26 | Min.Aisle width for pallets 1000×1200 | mm | 1953 |
| Performance | |||
| 27 | Travel speed,laden/unladen | km/h | 3/3.5 |
| 28 | Lift speed,laden/unladen | mm/s | 56/60 |
| 29 | Lowering speed,laden/unladen | mm/s | 57/59 |
| 30 | Gradeability,laden/unladen | % | 5/7 |
| Electrical configuration | |||
| 31 | Drive motor | KW | DC 0.63 |
| 32 | Lift motor | KW | DC 0.8 |
| 33 | Battery voltage / capacity | V/Ah | 24/70 |
| 34 | Brake | Electromagnetic / Regenerative | |
| 35 | Controller | HELI | |
| Weight | |||
| 36 | Battery weight | kg | 48 |
| 37 | Self weight with battery | kg | 275 |
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
