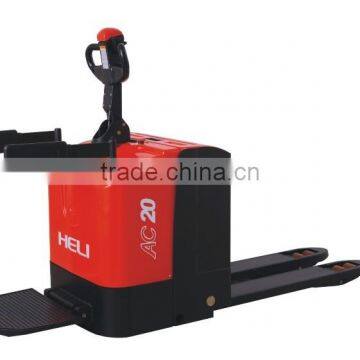

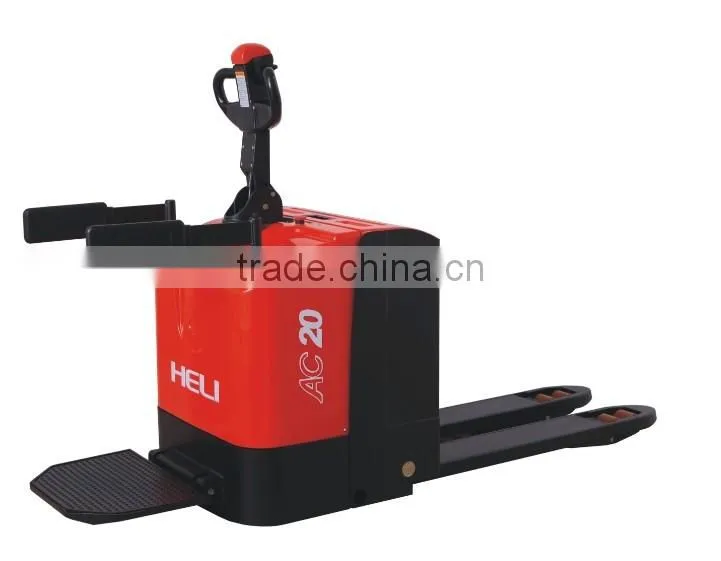

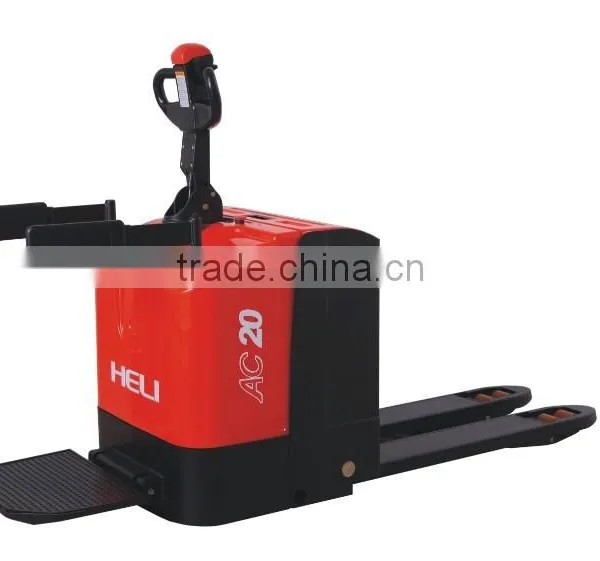

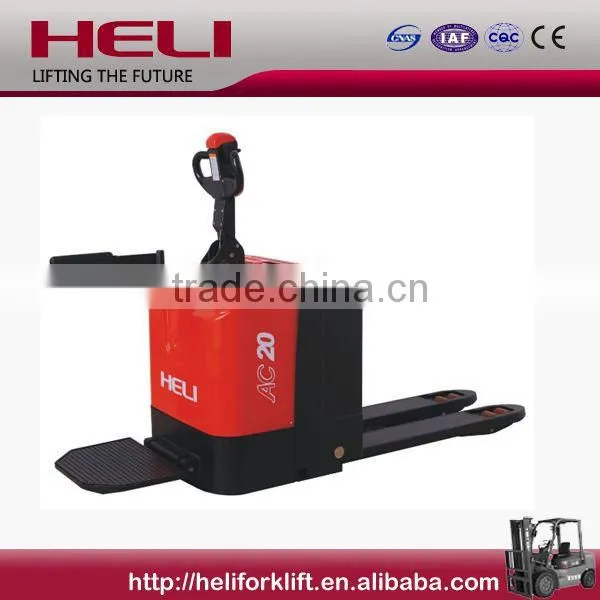

Help CenterChina Top1 Manufacturer Anhui Heli Brand 2.0T Stand-on Electric Pallet Truck
Related Products
-
Top1 Manufacturer Heli 1.5 Ton Small Electric Pallet TruckUS$ 1 - 6,000MOQ: 1 Set -
HELI Brand Electric Pallet Truck PriceUS$ 5,000 - 30,000MOQ: 1 Set
-
1.5Ton Heli Brand Electric Pallet TruckUS$ 2,500 - 6,000MOQ: 1 Set
-
Heli Brand Powered 2.0 Tons Pallet TruckUS$ 2,500 - 6,000MOQ: 1 Set
-
China Top1 Manufacturer Heli Brand 1-3.5ton ac Hand Pallet TruckUS$ 2,500 - 6,000MOQ: 1 Set
Shanghai heli forklift Co.,ltd is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
| HELI BRAND electric pallet truck Advantages: |
| (1)According to customer’s requirement, making non-standard fork length and overall widen of forklifts; |
| (2)360Ah big capacity battery is optional, meet long-time working requirement for customers; |
| (3)With advanced EPS electronic power steering system, portable and lower noise; |
| (4)Driving unit use durable and reliable middle-floating structure; |
| (5)With unique boosting cylinder configuration, ensure more traction in vehicles and prevent skidding; |
| (6)AC Driving motor, non-carbonate,free for maintenance, reduce maintenance cost |
| (7)With reliable performance of USA Curtis controller,and have stepless speed&automatic self protection function; |
| (8)Standard lifting power limiting function, reduce the waste of energy, prolong the service life of the hydraulic system and the associated component; |
| (9)Steering position use contactless proximity switch, reliable quality, long service life; |
| (10)Automatic deceleration curve, further improve the safety and reliability of the forklifts. |
| Feature | Unit | ||
| 1 | Model | CBD20 | |
| 2 | Configuration No. | 470 | |
| 3 | Load capacity | kg | 2000 |
| 4 | Load center | mm | 600 |
| 5 | Wheel base | mm | 1480 |
| 6 | Operating type | Walkie / Stand On | |
| Wheels | |||
| 7 | Wheels type | PU | |
| 8 | Wheel quantity Driving wheel/Balance wheel /Bearing wheel |
1/2/4 | |
| 9 | Driving wheel size | mm | ¢248×75 |
| 10 | Balance wheel size | mm | ¢80×80 (Double wheels) |
| 11 | Bearing wheel size | mm | ¢115×55 |
| Dimension | |||
| 12 | Min.fork lowered height | mm | 85 |
| 13 | Max.fork lifting height | mm | 205 |
| 14 | Max.lifting height | mm | 120 |
| 15 | Overall fork width | mm | 540/600/685/1070 |
| 16 | Fork length | mm | 1150/1200 |
| 17 | Fork width | mm | 185 |
| 18 | Fork thickness | mm | 55 |
| 19 | Overall length | mm | 1920/2335 |
| 20 | Overall width | mm | 720 |
| 21 | Overall height(With handle) | mm | 1455 |
| 22 | Overall height(Without handle) | mm | 900 |
| 23 | Min.Turning radius | mm | 1735/2140 |
| 24 | Min.Aisle width for pallets 800×1200 | mm | 2060/2451 |
| 25 | Min.Aisle width for pallets 1000×1200 | mm | 2090/2468 |
| Performance | |||
| 26 | Travel speed,laden/unladen | km/h | 6/6 |
| 27 | Lift speed,laden/unladen | mm/s | 56/60 |
| 28 | Travel speed,laden/unladen | mm/s | 57/59 |
| 29 | Gradeability,laden/unladen | % | 5/7 |
| Electrical configuration | |||
| 30 | Drive motor | KW | AC 1.5 |
| 31 | Lift motor | KW | DC 2.0 |
| 32 | Steering motor | KW | DC 0.15 |
| 33 | Battery voltage / capacity | V/Ah | 24/280 |
| 34 | Brake | Electromagnetic / Regenerative | |
| 35 | Controller | CURTIS 1232 | |
| Weight | |||
| 36 | Battery weight | kg | 288 |
| 37 | Service weight with battery | kg | 848 |
1.Well-Know Trademark Of China
2. First Brand of in Forklift Market in China
3. First Brand Of Indepent Innovation Forklift in China
4. AAA-Class Quality Service of China
5. Professional design team and work fast sales department of your service
6. Ranking 8th in Forklift Manufacturing Industry in the World
7. Alibaba golden supplier,VIP trade assurance supplier
8. Professional Components(Forklift Parts) Manufacturing,So that We can supply whole series HELI forklift parts
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
For more information please visit /
