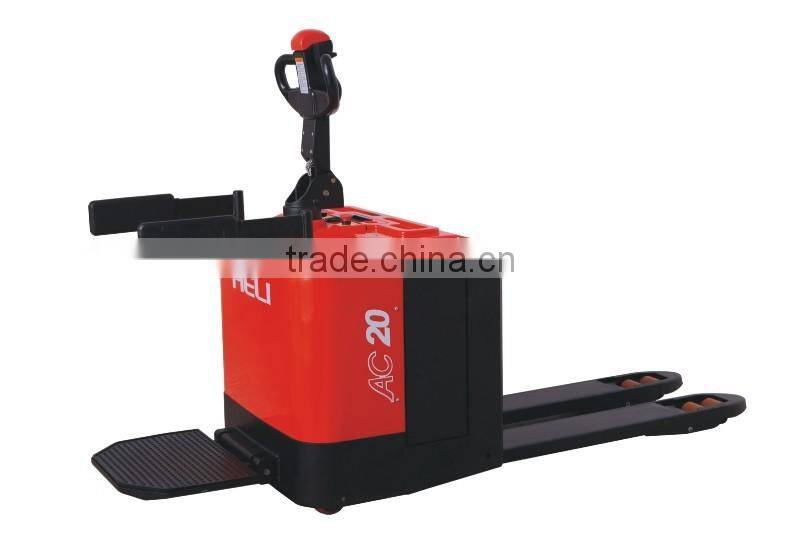

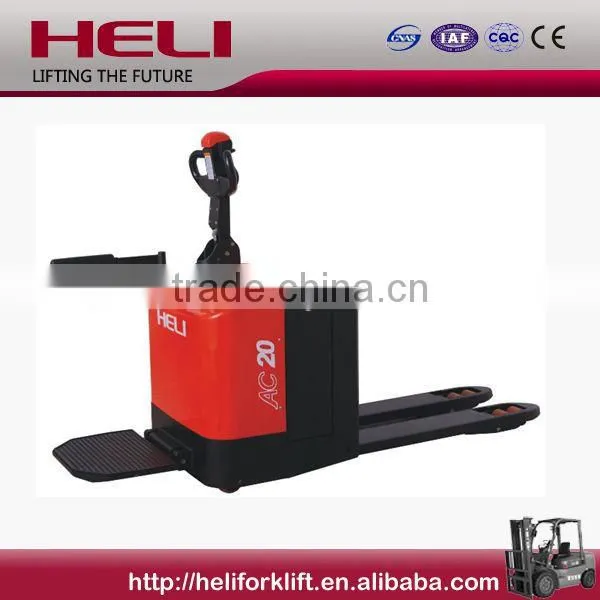

| HELI Brand electric pallet truck Advantages: |
| With advanced EPS electronic power steering system, light steering force, lower energy consumption,efficient mute; |
| AC Driving motor, non-carbonate,free for maintenance, reduce maintenance cost; |
| With unique boosting cylinder configuration, ensure more traction in vehicles and prevent skidding; |
| Standard lifting power limiting function, reduce the waste of energy, prolong the service life of the hydraulic system and the associated component; |
| Automatic deceleration curve, double safety protection for personnel and cargo ; |
| With reliable performance of USA Curtis controller, and have stepless speed&automatic self protection function; |
| High wear-resistant polyurethane tyre, good elasticity, strong bearing capacity; |
| Steering position use contactless proximity switch, reliable quality, long service life; |
| Using side-pull-way of battery, convenient and fast for replacing it; |
| Feature | |||
| 1 | Model | CBD20 | |
| 2 | Configuration No. | 460 | |
| 3 | Load capacity | kg | 2000 |
| 4 | Load center | mm | 600 |
| 5 | Wheel base | mm | 1493 |
| 6 | Operating type | Walkie / Stand On | |
| Wheels | |||
| 7 | Wheels type | PU | |
| 8 | Wheel quantity Driving wheel/Balance wheel /Bearing wheel |
1/2/4 | |
| 9 | Driving wheel size | mm | ¢248×75 |
| 10 | Balance wheel size | mm | ¢80×80 (/Double wheels) |
| 11 | Bearing wheel size | mm | ¢115×55 |
| Dimension | |||
| 12 | Min.fork lowered height | mm | 85 |
| 13 | Max.fork lifting height | mm | 205 |
| 14 | Max.lifting height | mm | 120 |
| 15 | Overall fork width | mm | 550/600/685 |
| 16 | Fork length | mm | 1150/1200 |
| 17 | Fork width | mm | 185 |
| 18 | Fork thickness | mm | 55 |
| 19 | Overall length | mm | 1916/2333 |
| 20 | Overall width | mm | 790 |
| 21 | Overall height(With handle) | mm | 1455 |
| 22 | Overall height(Without handle) | mm | 845 |
| 23 | Min.Turning radius | mm | 1746/2158 |
| 24 | Min.Aisle width for pallets 800×1200 | mm | 2046/2435 |
| 25 | Min.Aisle width for pallets 1000×1200 | mm | 2077/2458 |
| Performance | |||
| 26 | Travel speed,laden/unladen | km/h | 6/6 |
| 27 | Lift speed,laden/unladen | mm/s | 56/60 |
| 28 | Travel speed,laden/unladen | mm/s | 57/59 |
| 29 | Gradeability,laden/unladen | % | 5/7 |
| Electrical configuration | |||
| 30 | Drive motor | KW | AC 1.5 |
| 31 | Lift motor | KW | DC 2.0 |
| 32 | Steering motor | KW | DC 0.15 |
| 33 | Battery voltage / capacity | V/Ah | 24/270 |
| 34 | Brake | Electromagnetic / Regenerative | |
| 35 | Controller | CURTIS 1232 | |
| Weight | |||
| 36 | Battery weight | kg | 252 |
| 37 | Service weight with battery | kg | 840 |
1.Well-Know Trademark Of China
2. First Brand of in Forklift Market in China
3. First Brand Of Indepent Innovation Forklift in China
4. AAA-Class Quality Service of China
5. Professional design team and work fast sales department of your service
6. Ranking 8th in Forklift Manufacturing Industry in the World
7. Alibaba golden supplier,VIP trade assurance supplier
8. Professional Components(Forklift Parts) Manufacturing,So that We can supply whole series HELI forklift parts
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
1. What is your terms of package?
A: We pack our goods with HELI brand boxes and cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
2. What is your terms of payment?
A: We can accept the terms of payment is L/C at sight, T/T, D/P, Western Union ,cash .
3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
4. How about your delivery time?
A: Generally, it will take two week after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.If we have stock about your order,just 1-2 Days.
5. What is your sample policy?
A: We are honored to offer you samples.Please pay the sample charge and postage in advance. We accept the sample payment via Western Union or T/T.
6: What's the MOQ?
The minimum order amount should be at least USD10000.
