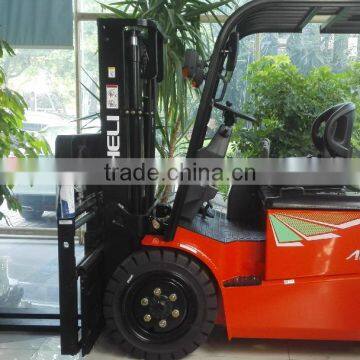

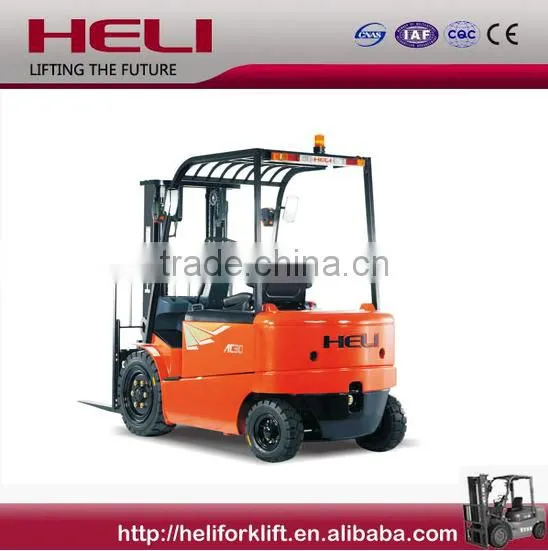

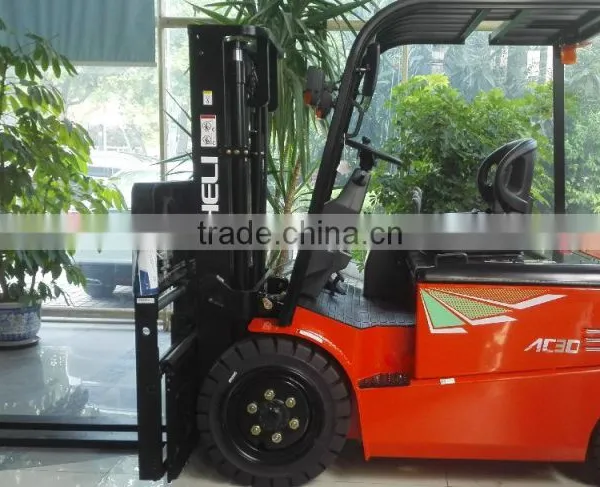

Help CenterChina Top1 Manufacturer Brand Heli Electric Forklift 3 Ton
Related Products
-
China Top1 Brand HELI G Series CPD20S Curtis Controller New Battery Operated Electric Forklift 3 Wheel ForkliftUS$ 18,000 - 20,000MOQ: 1 Acre -
The Biggest Forklift Manufacturer China HELI Electric Forklift 2 Ton ForkliftUS$ 1 - 20,000MOQ: 1 Set
-
Heli Brand G Series Three Wheel 1.5 Ton Electric Forklift PriceUS$ 1 - 10,000MOQ: 1 Set
-
China Top1 Manufacturer HELI Brand 2 Ton AC Heli Electric Forklift PriceUS$ 1 - 20,000MOQ: 1 Set
-
HELI Brand AC Reach 1.5 Ton Battery Charger Forklift Cpd15US$ 60,000 - 80,000MOQ: 1 Set
| Specification | electric forklift 3 ton | |
| Model | CPD30 | |
| Powe type | Battery | |
| Load capacity | kg | 3000 |
| Load center | mm | 500 |
| Operating type | Sit-Down | |
| Size | ||
| Standard lifting height | mm | 3000 |
| Free lifting height | mm | 145 |
| Mast height | mm | 2075 |
| Overhead Guard Height | mm | 2215 |
| Overall width | mm | 1225 |
| Overall length | mm | 2485 |
| Wheel Base | mm | 1680 |
| Outside Turning Radius | mm | 2210 |
| Ground Clearance at mast,Loaded | mm | 135 |
| Ground Clearance at center of wheel base,Loaded | mm | 150 |
| Load Distance | mm | 485 |
| Fork Carriage to DIN 15173 A/B | mm | 2A |
| Mast tilt angle | % | 6° / 10° |
| Fork size | mm | 1070x125x45 |
| Performance | ||
| Max. travel speed(loaded/unloaded) | km/h | 15/15.5 |
| Lifting speed | m/s | 0.28/0.45 |
| Lowering speed | m/s | 0.5 |
| Gradient performance with load | % | 15 |
| Max.draw bar pull with load | N | 15600 |
| Acceleration time(10meters)W/O load | s | 5.0/4.7 |
| Weight | ||
| Service weight | 4810 | |
| Axle loaded(front/rear) | kg | 2320/2490 |
| Axle unloaded(front/rear) | kg | 7055/755 |
| Wheel and Tyre | ||
| Tyre quantity X=driving wheel | 2x2 | |
| Tyre Type | pneumatic | |
| Tyre size (front) | 28x9-15-12PR | |
| Tyre size (rear) | 18*7-8-14PR | |
| Service brake | Hydraulic /Mechanical | |
| Parking brake | Hydraulic /Mechanical | |
| Motor&Controller | ||
| Battery (Voltage/Capacity) | V/Ah | 80/480 |
| Battery weight | kg | 1580 |
| Drive Motor-60 Min.Rating | kW | 16.6 |
| Pump Motor-15 Min.Rating | KW | 13 |
| Drive motor Control Method | Mosfet/AC | |
| PUMP motor Control Method | Mosfet/AC | |
| Relief Pressure | Mpa | 21 |
Shanghai heli forklift Co.,ltd is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
