Home > Transportation > Forklifts & Parts > Forklift > Heli Brand G Series Three Wheel 1.5 Ton Electric Forklift Price

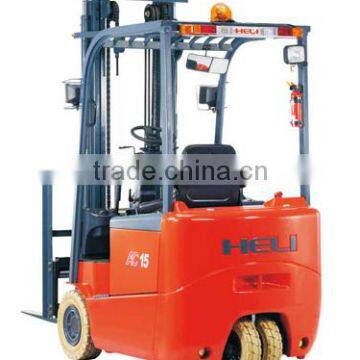

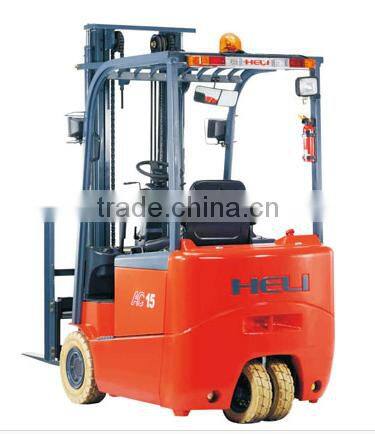

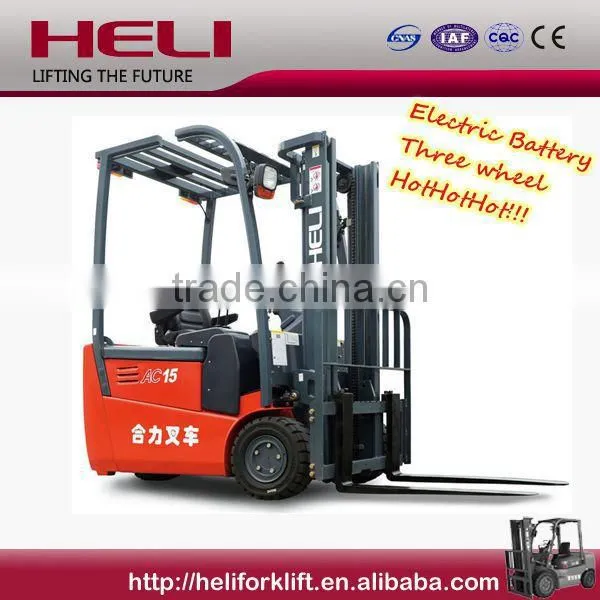

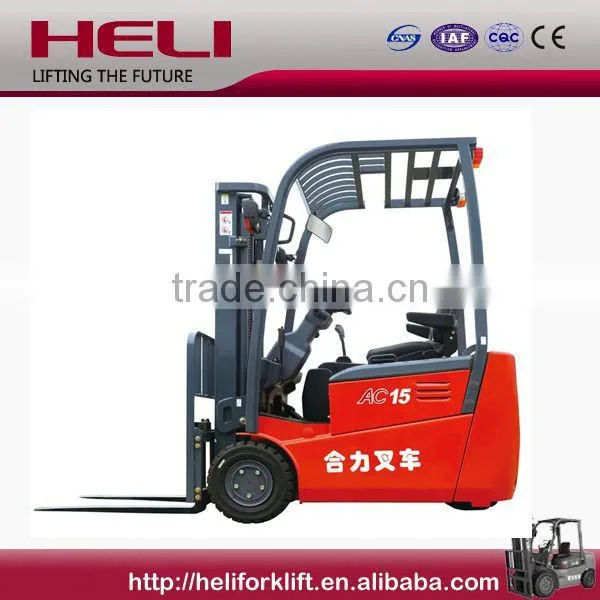

Heli Brand G Series Three Wheel 1.5 Ton Electric Forklift Price
US$ 1 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HELI BRAND
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Top1 Manufacturer HELI Brand 2 Ton AC Heli Electric Forklift PriceUS$ 1 - 20,000MOQ: 1 Set -
HELI Brand AC Reach 1.5 Ton Battery Charger Forklift Cpd15US$ 60,000 - 80,000MOQ: 1 Set
-
5Ton AC Heli Electric Forklift TruckUS$ 1 - 35,000MOQ: 1 Set
-
China Top1 Forklift Manufacturer Heli Brand With Safety and Braking Safety Device 1.5 Ton Electric Forklift PriceUS$ 10,000 - 12,000MOQ: 1 Set
-
Powered Pallet Truck Type and New Condition Electric Forklift Pallet TruckUS$ 18,000 - 35,000MOQ: 1 Acre
Condition
New
Place of Origin
Anhui, China
Brand Name
HELI BRAND
Model Number
CPD15SH
Type
Other, Electric Battery forklift
Power Souce
AC Motor
Rated Loading Capacity
1500kg
Max. Lifting Height
3000mm ( Optional )
Min. Lifting Height
85mm
Fork Length
920mm
Fork Width
100mm
Overall Dimensions
1797X990X2080mm
Certification
ISO9001,ISO14001,OHASA18001,CE
After-sales Service Provided
No overseas service provided
Shanghai heli forklift truck co.,ltd is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china".
| Characteristics | |||
| 1.01 | Manufacturer'S Name | HELI | |
| 1.02 | Model Designation | CPD15SH | |
| 1.03 | Configuration Number | GA1/GA2/GA3 | |
| 1.04 | Load Capacity | kg | 1500 |
| 1.05 | Load Center | mm | 500 |
| 1.06 | Power Type | Battery | |
| 1.07 | Operator Type | Seated | |
| 1.08 | Wheelbase | mm | 1200 |
| Wheels & Tyres | |||
| 2.01 | Tyre Type | superelastic | |
| 2.02 | Tyres Number (Front/Rear) | 2/1x | |
| 2.03 | Tread (Centre Of Tyre), Front | mm | 840 (910*) |
| 2.04 | Tread (Centre Of Tyre), Rear | mm | - |
| 2.05 | Tyre Size, Front | 18 x 7-8 | |
| 2.06 | Tyre Size, Rear | 18 x 7-8 | |
| Dimensions | |||
| 3.01 | Load Distance | mm | 330 |
| 3.02 | Mast Tilt Angle, F/R | ° | 3/6 |
| 3.03 | Height With Mast Lowered | mm | 1955 |
| 3.04 | Free Lift | mm | 110 |
| 3.05 | Standard Lift Height | mm | 3000 |
| 3.06 | Height With Mast Extended | mm | 4008 |
| 3.07 | Overhead Guard Height | mm | 2080 |
| 3.08 | Fork Size T X W X L | mm | 35 x 100 x 920 |
| 3.09 | Fork Carriage To Din 15173 A/B | 2A | |
| 3.10 | Length To Fork Face | mm | 1797 |
| 3.11 | Overall Width | mm | 990 (1060*) |
| 3.12 | Outside Turning Radius | mm | 1467 |
| 3.13 | Ground Clearance At Mast, Loaded | mm | 90 |
| 3.14 | Ground Clearance At Centre Of Wheelbase, Loaded | mm | 100 |
| 3.15 | Right Stack Aisle Width (Pallet: 1000X1000Mm, Clearance: 200Mm) | mm | 3088 |
| 3.16 | Right Stack Aisle Width (Pallet: 1200X1200Mm, Clearance: 200Mm) | mm | 3311 |
| Performances | |||
| 4.01 | Travel Speed, With/Without Load | km/h | 12/12.5 |
| 4.02 | Lifting Speed, With/Without Load | m/s | 0.28/0.48 |
| 4.03 | Lowering Speed, With/Without Load | m/s | 0.55/0.45 |
| 4.04 | Gradient Performance With Load | % | 8 |
| 4.05 | Max. Draw Bar Pull With Load | N | 7030 |
| 4.06 | Acceleration Time (10 Meters) W/O Load | s | 4.7/5.0 |
| Weight | |||
| 5.01 | Total Approximate Weight (W/O Battery) | kg | 2897/2237 |
| 5.02 | Axle Loading: Unloaded, Front/Rear | kg | 1252/1645 |
| 5.03 | Axle Loading: Loaded, Front/Rear | kg | 3790/607 |
| Battery | |||
| 6.01 | Battery Voltage/Rated Capacity (5H) (Min/Max) | V/Ah | 24/720 (720/1000) |
| 6.02 | Battery Weight | kg | 660 (650/750) |
| 6.03 | Battery To Din 43531/35/36/A/B/C | mm | 43535A |
| Motor & Controller | |||
| 7.01 | Drive Motor - 60 Min. Rating | kW | 4.2 |
| 7.02 | Pump Motor - 15 Min. Rating | kW | 6.2 |
| 7.03 | Drive Motor Control Method | MOSFET/AC | |
| 7.04 | Pump Motor Control Method | MOSFET/AC | |
| 7.05 | Service Brake / Parking Brake | Hydraulic/Mechanical | |
| 7.06 | Relief Pressure | Mpa | 17.5 |
Electric forklift price 1.5 ton
Electric forklift price 1-2.5 ton
electric forklift price 3-3.5 ton
Video Demo
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
