Heli Electric forklift which is a multi functional material handing equipment that created by Anhui heli forklift
Co.,ltd. Shanghai Heli Forklift Co., Ltd. Is Anhui Heli Co. in Shanghai, Suzhou and Nantong (including under the jurisdiction of cities and counties) are the only sales company,
You could call it SHANGHAI HANLI INDUSTRIAL VEHICLES CO.,LTD too. We set up this company for doing international trade business.

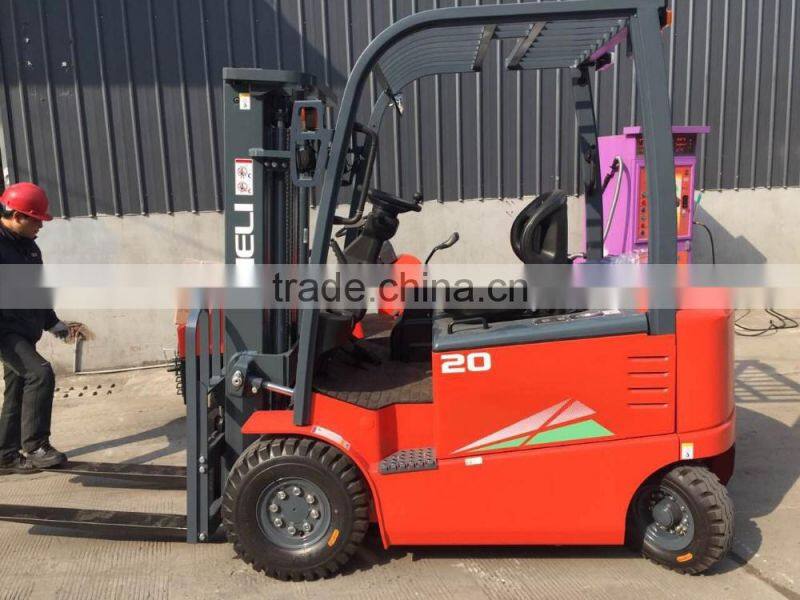

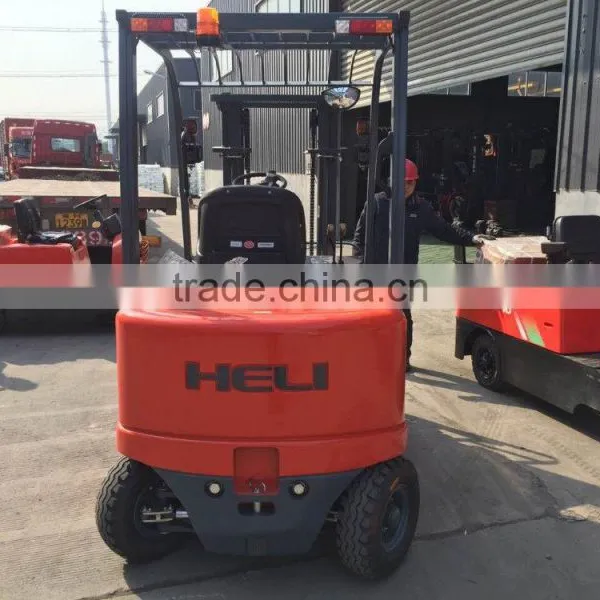

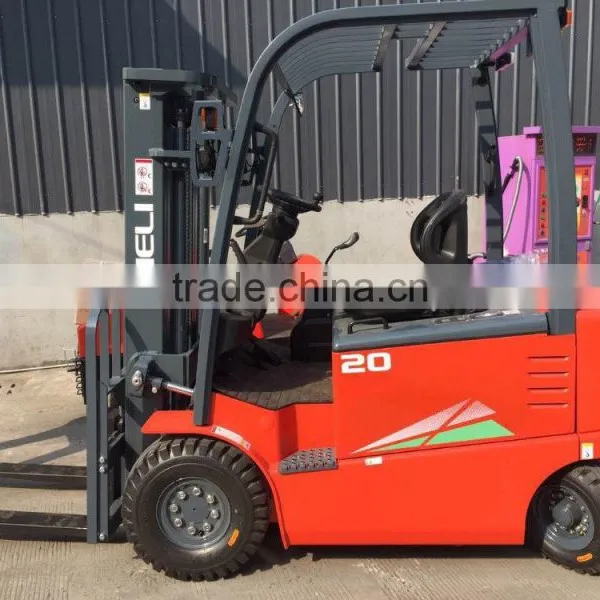

Heli Electric Forklift 2T Spec
| Characteristic | Unit | ||
| 1 | Manufacturer | HELI | |
| 2 | Model | CPD20 | |
| 3 | Load Capacity | kg | 2000 |
| 4 | Load center | mm | 500 |
| 5 | Power Type | Battery | |
| 6 | Operation mode | Seated | |
| Tire | |||
| 7 | Front Tire | 7.00-12-12PR | |
| 8 | Rear Tire | 18*7-8-14PR | |
| Dimension Parameter | |||
| 9 | Wheel Base | mm | 1535 |
| 10 | Mast Tilt(fwd/bwd) | deg | 6/12 |
| 11 | Standard lift height | mm | 3000 |
| 12 | Overall Length(without Forks) | mm | 2400 |
| 13 | Overall Width | mm | 1150 |
| 14 | Min.Turning Radius | mm | 2065 |
| 15 | Min.Under clearance(At the mast) | mm | 135 |
| 16 | Overhang(fwd) | mm | 465 |
| 17 | Tread(fwd/bwd) | mm | 960/950 |
| 18 | Overhead guard height | mm | 2155 |
| 19 | Lateral Fork Adjustment(Outside of Forks,Max/Min) | mm | 1030/244 |
| 20 | Fork Length | mm | 920 |
| 21 | Fork Width/Thickness | mm | 122*40 |
| Performance Parameter | |||
| 22 | Lifting speed(Loaded/unloaded) | m/s | 0.28/0.49 |
| 23 | Lowing speed(Loaded) | m/s | 0.45 |
| 24 | Traveling speed(Unloaded/Loaded) | km/h | 14/15 |
| 25 | Max.Gradeability(Loaded) | % | 16 |
| Weight | |||
| 26 | Service weight | kg | 4080 |
| Motor&Controller | |||
| 27 | Drive motor-60min.Rating | KW | 11.1 |
| 28 | Pump motor-15 min.Rating | KW | 10.5 |
| 29 | Drive motor control method | MOSFET/AC | |
| 30 | Pump motor control method | MOSFET/DC | |
| 31 | Gearbox | Special gearbox for HELI | |
| 32 | Noted | ||
| 33 | Controller | Curtis,Zapi | |
| 34 | Battery | V/AH | 48/600 |
electric forklift price 3-3.5Ton
electric forklift price 4-5Ton
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
Whatsapp: 0086 13761611524;0086 13072186360
Tel: 0086 13761611524 ;0086 13072186360
Email: info at
Skype:sinosky54457;pobby_guo258
For more information please visit /
