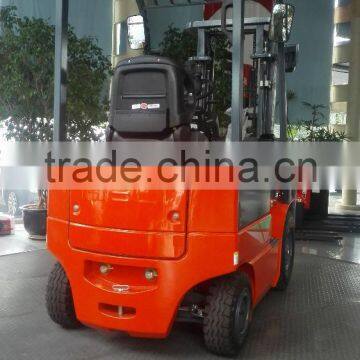

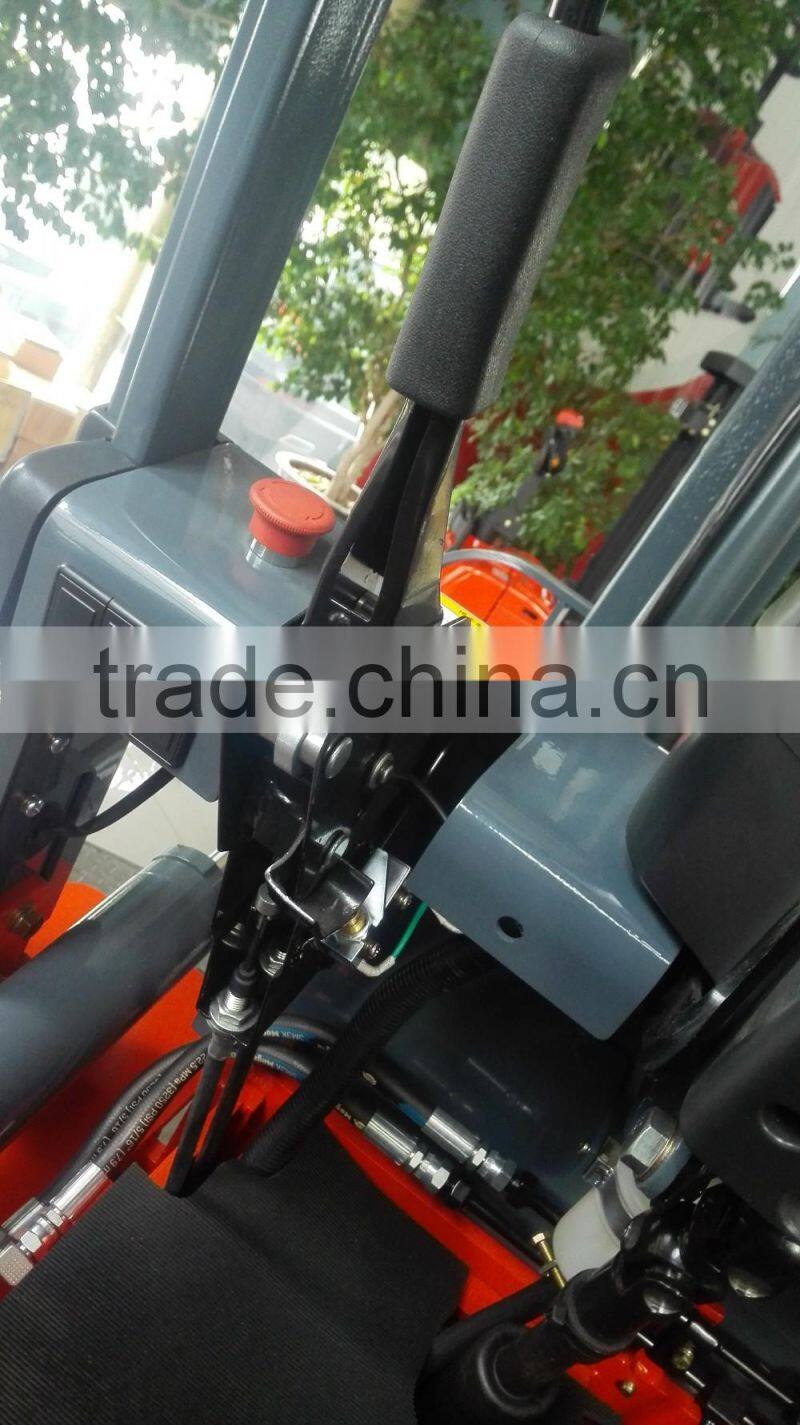

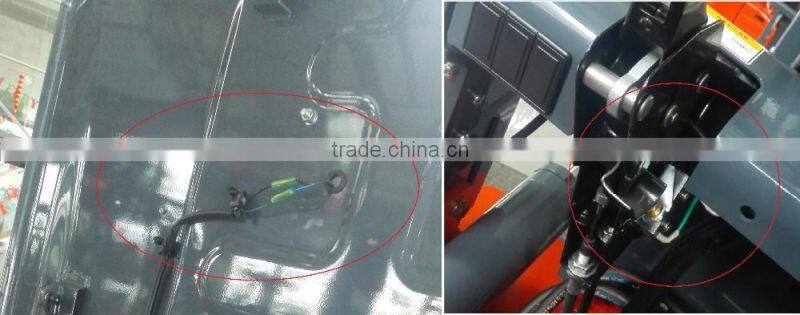

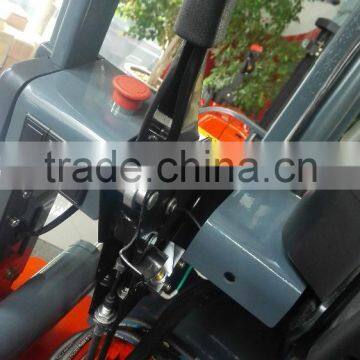

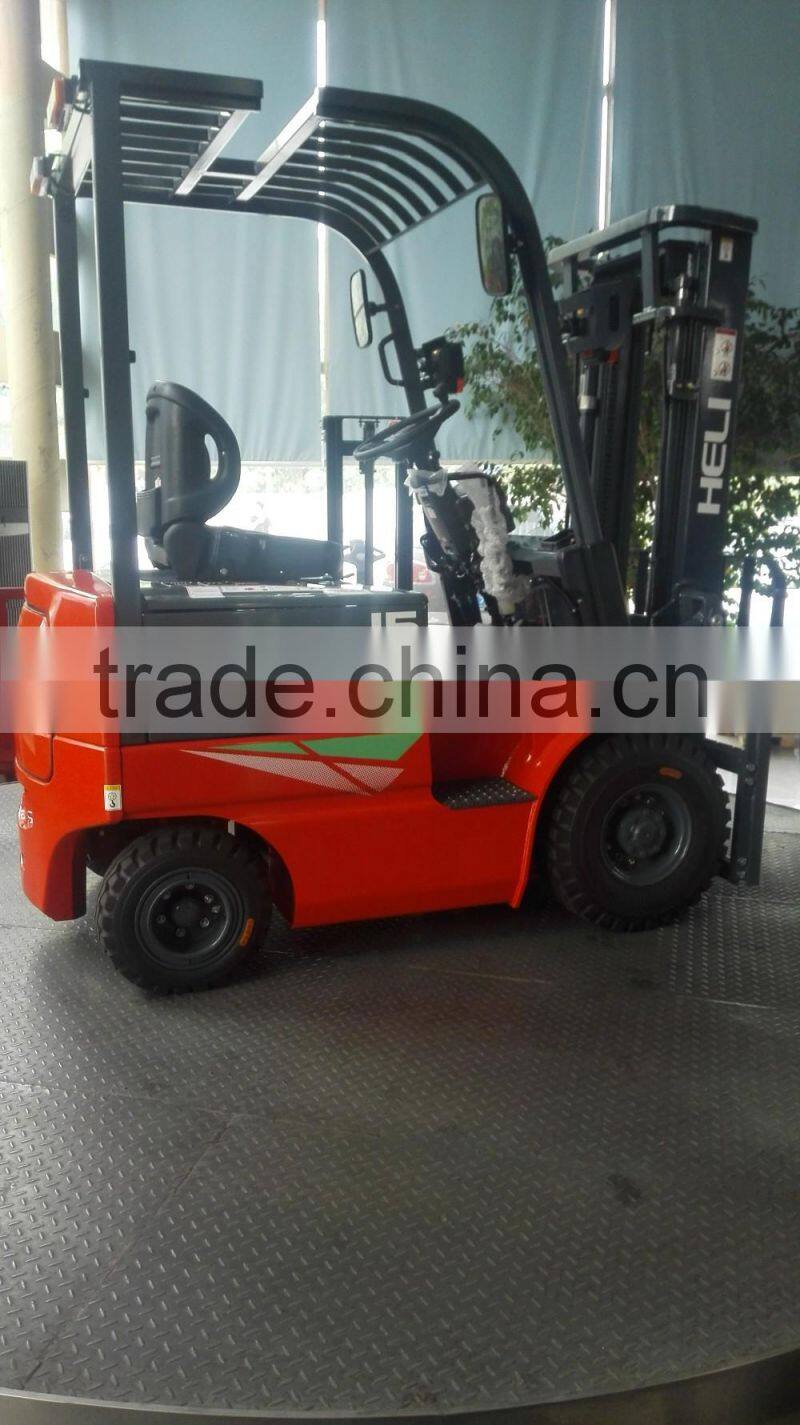

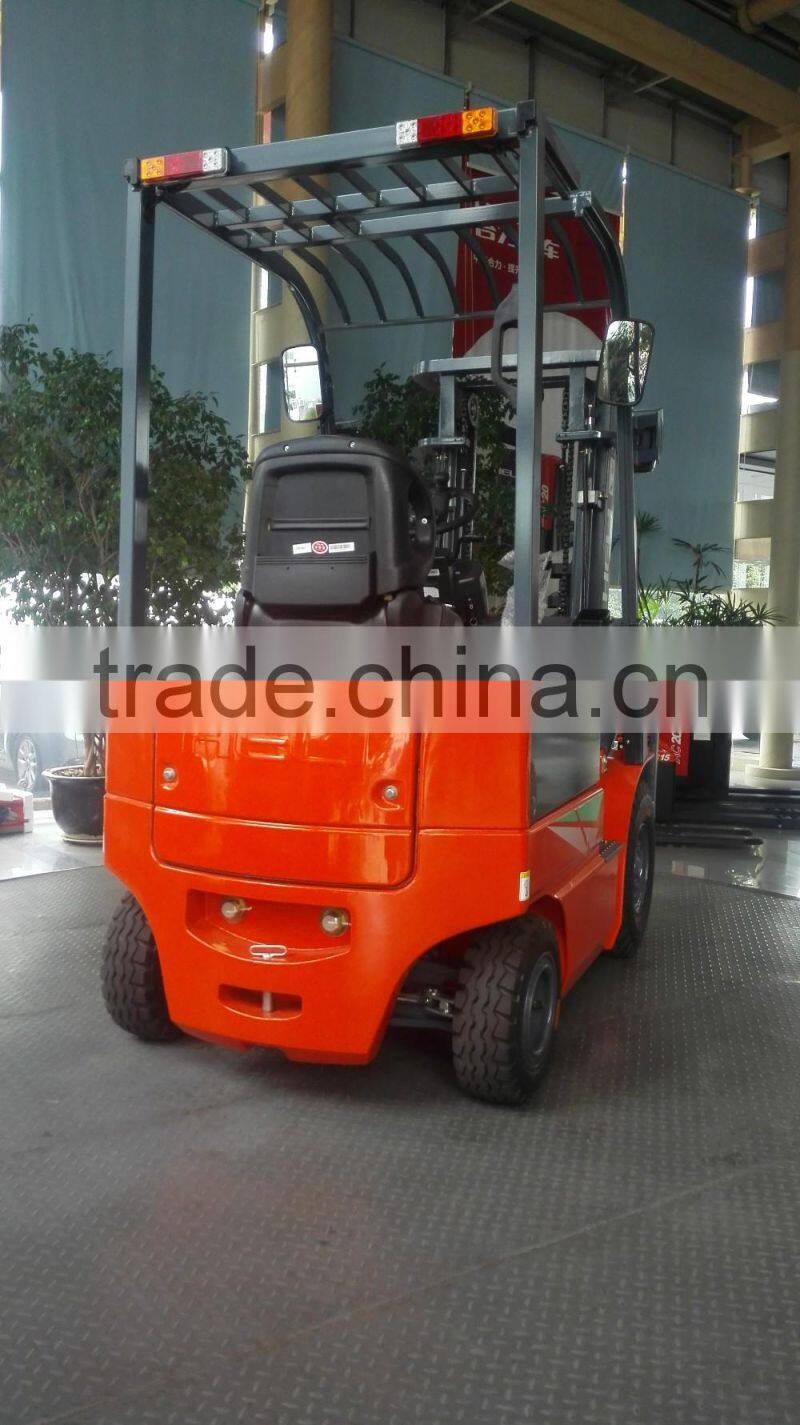

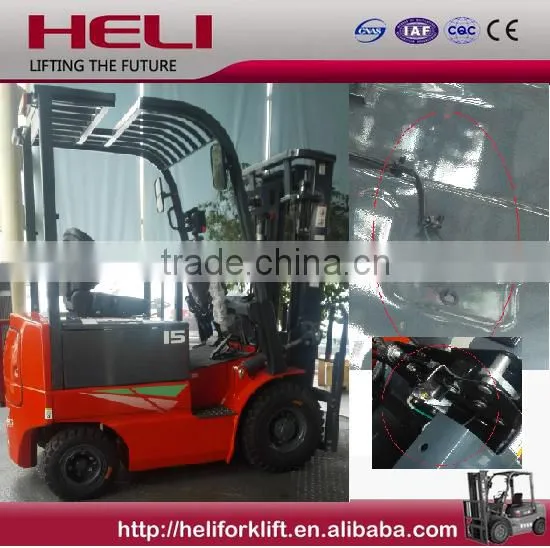

China Top1 Forklift Manufacturer Heli Brand with Safety and Braking safety device 1.5 ton electric forklift price
- 1000 Set / Sets per Month
- Shanghai
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Anhui, China | Brand Name: | HELI |
Model Number: | CPD15 | Type: | Other, electric forklift price | Power Souce: | AC Motor |
Rated Loading Capacity: | 1500kg | Max. Lifting Height: | 3000mm ( Optional ) | Min. Lifting Height: | 85mm |
Fork Length: | 920mm | Fork Width: | 100mm | Overall Dimensions: | 2065X1070X2130mm |
Certification: | ISO9001,ISO14001,OHASA18001,CE | After-sales Service Provided: | No overseas service provided |
Product Description

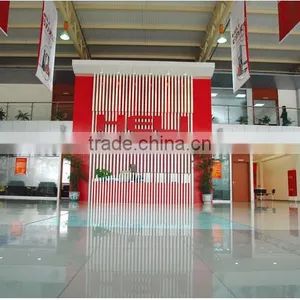

Shanghai heli forklift Co.,ltd is one holding company of anhui heli co.,ltd,founded in 2001, it is mainly engaged in r&d and manufacturing of industrial vehicles, construction nachinery and key components, and our factory is in anhui heli, at present, its the export base of industrial vehicles wiith largest scale, the most complete industry chain, and the best comprehensive and economic performance in china, it owens a national-level "enterprise technical centre" and it has been awarded as :national innovative enterprise ","state-high-tech enterprise in national torch project"."heli' trademark is the "well known trademark of china". Shanghai Hanli Industrial Vehicles Co.,Ltd belongs to Shanghai heli forklift Co.,Ltd.
China Top1 Forklift Manufacturer Heli Brand with Safety device 1.5 ton electric forklift price
Characteristic | Unit | Four Wheels Electric Forklift | |
1 | Manufacturer | HELI | |
2 | Model | CPD15-HA2 | |
3 | Load Capacity | kg | 1500 |
4 | Load center | mm | 500 |
5 | Power Type | Battery | |
6 | Driving Style | Seated | |
7 | Traveling speed(Loaded/Unloaded) | km/h | 14/15 |
8 | Lifting speed(Loaded/Unloaded) | mm/s | 270/450 |
9 | Max.Gradeability(Unloaded/Loaded) | % | 17 |
10 | Max.draw bar pull with load | N | 8600 |
11 | Operating brakes | Hydraulic | |
12 | Parking brakes | Mechanical | |
13 | Tyre Type | Pneumatic | |
14 | Number of Wheels(x=driven) front/rear | 2x/2 | |
15 | Tyre size,front | 6.50-10-10PR | |
16 | Tyre size,rear | 16*6-8-10PR | |
17 | Drive motor | kw | 8 |
18 | Pump motor | kw | 7.5 |
19 | Battery voltage/rated capacity(5h) | 48v/400ah | |
20 | Type of drive control | Mosfet/AC | |
21 | Working pressure for attachments | MPa | 14.5 |
22 | Gross Weight | KG | 2950 |
23 | Axle loading with load,front/rear | KG | 3900/550 |
24 | Axle loading without load,front/rear | KG | 1330/1620 |
25 | Mast Tilt(fwd/bwd) | deg | 6/12 |
26 | Height with mast lowered | mm | 1995 |
27 | Free Lift | mm | 150 |
28 | Lifting height(standard) | mm | 3000 |
29 | Overhead Guard Height | mm | 2130 |
30 | Fork Length/ Width/Thickness | mm | 920x100x35 |
31 | Forklift length(without fork) | mm | 2065 |
32 | Forklift width | mm | 1070 |
33 | Min.Turning Radius | mm | 1770 |
34 | Right angle stack aisle width (Pallet size 1000*1000mm,Clearance 200mm) | mm | 3380 |
35 | Right angle stack aisle width (Pallet size 1200*1200mm,Clearance 200mm) | mm | 3580 |
1.Well-Know Trademark Of China
2.First Brand of in Forklift Market in China
3.First Brand Of Indepent Innovation Forklift in China
4.AAA-Class Quality Service of China
5.Professional design team and work fast sales department of your service
6.Alibaba golden supplier,VIP trade assurance supplier
7.Ranking 8th in Forklift Manufacturing Industry in the World
Online video demo of heli forklift: https://youtu.be/GAv9g8DoVxA
HELI is authorized with the independent export rights,and over 90% of its products are exported directly by HELI.HELI has also established 76 forklift export agencies in the U.S.A,Germany,and the Netherlands.HELI' s efficient service network has been established to support HELI customers worldwide.The products of HELI have been exported to Europe,America,Australia and Southeast Asia,and sales have been completed in 130 countries.Among its exports,70% of the products are directed to Europe and America.The brand of HELI has already registered in more than 60 countries.
Whatsapp: 0086 13072186360
Tel: 0086 13761611524 ; 0086 13072186360
Email: info at
Skype:pobby_guo258
For more information please visit
