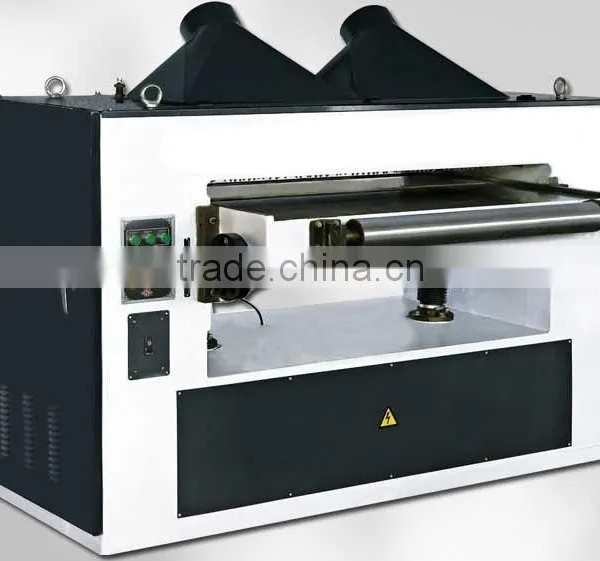

Single Side Wood Planer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Thicknesser
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Thicknesser
Brand Name
TIMAC
Model Number
MB1010
Voltage
220/380/customize
Power(W)
11kw
Dimension(L*W*H)
1940x1319x1655mm
Weight
2600kg
Certification
CE ISO
Warranty
1 Year
Single side Wood Planer
| Specification | Unit | MB1010 | MB1013 |
| Max. planing width | mm | 1000 | 1300 |
| Max. planing thickness | mm | 160 | 160 |
| Min. planing length | mm | 400 | 400 |
| Min. planing thickness | mm | 10 | 10 |
| Max. planing depth | mm | 4 | 4 |
| Main spindle speed | r/min | 4000 | 3600 |
| Feeding speed | m/min | 7.6/10.1/15.2 | 7.6/10.1/15.2 |
| Spindle cutting dia. | mm | 140 | 150 |
| Main motor power | kW | 11 | 18.5 |
| Feeding motor power | kW | 1.8/2.6/3 | 1.8/2.6/3 |
| Lifting motor | kW | 0.75 | 0.75 |
| Overall dimensions | mm | 1940×1319×1655 | 2241×1532×1655 |
| Net.weight | kg | 2600 | 3200 |
