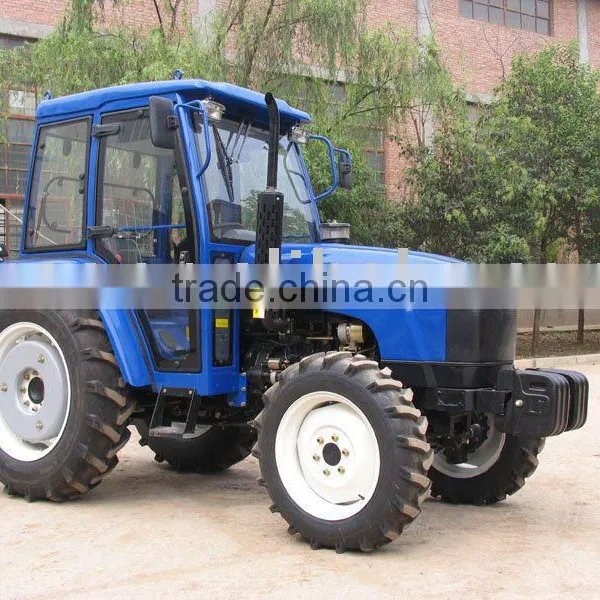

Four Wheeled Farm Tractor

Four Wheeled Farm Tractor thumbnail-1
Four Wheeled Farm Tractor photo-1
US$ 2,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Certificate CE
Brand Name TIMAC
Model Number TRACTOR 400, TRACTOR 404
Place of Origin Henan, China

FOUR WHEEL FARM TRACTOR



The main characteristics:

1. Adopt new diesel , reliability well , has bigger moment of torsion reserve system;

2. 10 inches of pair of effects clutch;

3. The speed change box archives place is 4 X (2 + 1);

4. Detached driving force of postposition exports a device , drive balances , bears the weight of a force big;

5. The entire hydraulic pressure front wheel adopt the independent oil road gets lost , gets lost nimble , reliable , saves labour;

6. The force moment adopt disk brake , braking is big , the braking is reliable.





Model TRACTOR 400 TRACTOR 404
Pattern 4×2 (two turn actuation)  4×4 (four-wheel drive)
Outlook size mm Long (in front of belt counterweight) 3513 3513
Width 1823 1750
High (to air vent) 2130 2130
Spread of axies (mm) 1880 1924
Front wheel tread (mm) 1200-1500 (commonly used 1300) 1250
Rear wheel tread (mm) 1200-1500 (commonly used 1300)
Smallest gully (mm) 400 325
Agronomy gully (mm) 450 375
Changes radius (mm) Unilateral brake 3.1 3.4
Unilateral does not apply the brake 3.5 4.1
Complete machine quality (kg) Structure quality 1665 1890
  Smallest use quality 1840 2080
Disposition quality (kg) First disposes 108 144
  Latter disposes 360 360
Fixed force of traction (KN) 9 12
Engine model 490BT
Demarcation power (KW) 29.4
Coupling 10 inch dry list function or double-acting
Gear box 4× (2 1) keeps off the composition type meshing wrap to shift gea
Speed range 2.4-31.9
Central rotation Screw round bevel gear pair
Differential device Two planetary gears, closed type
Differential lock Plug type
Final transmission Planet gear type
First driving axle The entire seal bevel gear type (four-wheel drive type uses)
Transfer case The straight tooth cylindrical gears (four-wheel drive type uses)
Front wheel tire specification 6.0-16   8.3-20
Trailing wheel tire specification 12.4-28
Diverter pattern Mechanical or the entire hydraulic pressure changes
Brake labor Biplate oil bath plate brake (mechanical type)
Hoist pattern The half minute sets at the type
Ploughs the deep control mode Strength, position control and fluctuation control
Suspension unit pattern Postpositioned three point suspension
Dynamic output speed of spindle (r/min) 540/760
