Product Details
| Condition: | New | Type: | Impact Crusher | Capacity(t/h): | 30-550 |
| Brand Name: | TIMAC | Model Number: | PF-1007, PF-1010, PF-1520 |
Product Description

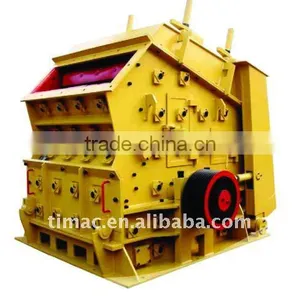

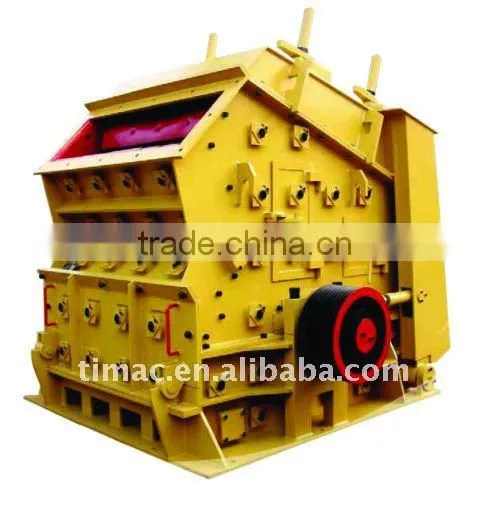

IMPACT CRUSHER
This series of impact crushers can process the material with side length of 100 to 500mm.
The compression strength can reach 350MPA.
The advantage of the impact crushers are big reduction ratio and cubic shape of the crushed materials.
IMPACT CRUSHER TECHNICAL PARAMETERS
| Model | Specifications (mm) | Feed opening (mm) | Max. feeding side length (mm) | Capacity (t/h) | Power (kw) | Total weight (t) | Dimensions (LXWXH) (mm) |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 45 | 12 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 55 | 15 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 110 | 17.7 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 100-180 | 132 | 22.4 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 130-250 | 220 | 27 | 3180×2720×2620 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 300-550 | 440 | 50.6 | 3959×3564×3330 |
Note: This series of impact crushers are suitable for hard rock crushing, 90% of the discharging size of granite (typical product) is less than 40mm.
