Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Bulldozer > CRAWLER BULLDOZER
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
BULLDOZER 220Y-1
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
TIMAC
Model Number
BULLDOZER 220Y-1
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
28400kg
Dimension(Long * Breadth * High)
7530*3725*3575mm

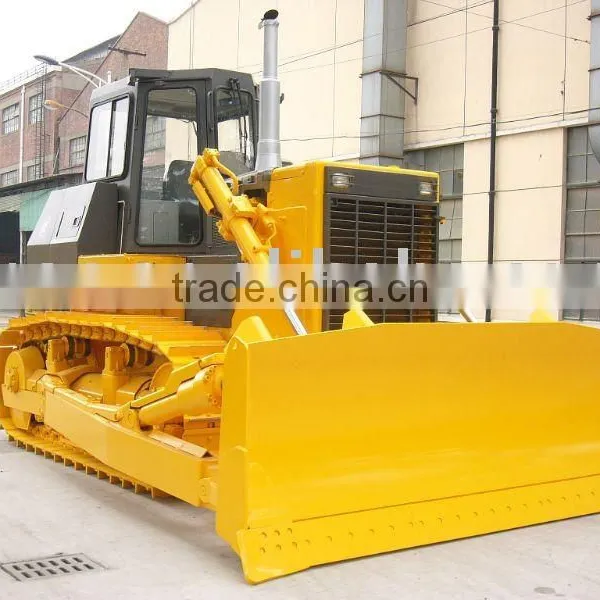

CRAWLER BULLDOZER
| NO | DESCRIPTION | UNIT | SPECIFICATON | ||
| 1 | MODEL | / | BULLDOZER 220Y-1 | ||
| 2 | Engine | Model | / | Chongqing Cummins NT855-C280S10 | |
| Type | / | Straight vertical, four-stroke, water cooling, direct injection type. Turbocharger. | |||
| Number of cylinder-bore*stroke | mm | 6-139.7*152.4 | |||
| Displacement | l | 14 | |||
| Fly wheel/rated revolution | kW/r/min | 162/1800 | |||
| Min. fuel consumption | g/kw.h | ≤235 | |||
| 3 | Start method | Type | / | Electric starting motor | |
| Starting motor | V/kW | 24V/11kW | |||
| Voltage/power | |||||
| Battery | / | 24V(12V*2)-195Ah | |||
| 4 | Lubrication system | Lubrication type | / | Forced lubrication. | |
| Cooling type | / | Water cooling | |||
| 7 | Air filter type | / | Dry type, precleaned cyclone air cleaner. | ||
| 8 | Transmission system | Hydraulic torque converter | / | 3-element, single stage, single phase | |
| / | Hand operated, hydraulic shift, planetary gear, multiple disc clutch, forced lubrication by gear pump. | ||||
| Transmission | |||||
| Bevel gear | / | Helical bevel gear, splash lubrication. | |||
| Steering clutch | / | Wet, multiple disc, spring loaded, hand-operated with booster and hydraulic released. | |||
| Steering brake | / | Wet, band brake, operated with hydraulic booster. | |||
| Final drive | / | Spur gear, double reduction, splash lubrication. | |||
| 9 | Travel Speed | Forward | 1st | km/h | 0-3.6 |
| 2nd | km/h | 0-6.5 | |||
| 3rd | km/h | 0-11.2 | |||
| Reverse | 1st | km/h | 0-4.3 | ||
| 2nd | km/h | 0-7.7 | |||
| 3rd | km/h | 0-13.2 | |||
| 10 | Under carriage | Suspension system | / | Equalizer bar | |
| Track tension | / | Hydraulic-adjusted | |||
| Sprocket | pics | Segmented | |||
| Number of track rollers (each side) | pics | 6 (4 single, 2 double) | |||
| Number of carrier rollers (each side) | pics | 2 | |||
| 11 | Track | Type | / | Sealed single grouser | |
| Track pitch | mm | 216 | |||
| Number of track shoes | pics | 38 | |||
| Track gauge | mm | 2000 | |||
| Length of track on ground | mm | 2730 | |||
| Track width | mm | 560 | |||
| Ground pressure | MPa | 0.078 | |||
| Ground clearance | mm | 405 | |||
| 12 | Hydraulic system of work equipment | Pump type | / | CBT3160 gear pump | |
| Rated delivery | L/min | 257 | |||
| Control valve | / | Hand-operated, servo valve. | |||
| Working pressure | MPa | 13.7 | |||
| Fuel tank | L | 110 | |||
| Blade Max. lift above the ground | mm | 1210 | |||
| Blade Max. drop below the ground | mm | 540 | |||
| Max. lift speed | m/s | 0.35 | |||
| Max. tilt | mm | 735 | |||
| Pitch adjustment | 0 | 55 | |||
| 13 | blade | type | / | Straight tilt blade | |
| Dimension | mm | 3725*1315 | |||
| Blade capacity | m3 | 6.44 | |||
| 15 | Mix. Turning radius | m | 3.3 | ||
| 16 | Ground ability | 0 | 30 | ||
| 17 | Dimension without ripper | mm | 5750*3725*3575 | ||
| Dimension with ripper | mm | 7530*3725*3575 | |||
| 18 | Operating weight without ripper | kg | 25500 | ||
| Operating weight with ripper | kg | 28400 | |||
| 19 | Three shank ripper | mm | |||
| Max. dig below ground | 555 | ||||
| Max. lift above ground | 666 | ||||
| 20 | Single shank ripper | mm | |||
| Max. dig below ground | 666 | ||||
| Max. lift above ground | 598.3 | ||||
| Standard equipment | Engine |
| Torque converter | |
| Transmission | |
| Hydraulic cylinder | |
| Engine cover | |
| Drive cab(with wiper, fan, rearview mirror) | |
| Blade | |
| Track | |
| Optional | Air-conditioner |
| Heater | |
| ROPS | |
| Driving cab decoration | |
| Lincon Central lubrication | |
| Ether start | |
| Lubrication oil heating pot | |
| Three-shank ripper | |
| Single-shank ripper | |
| Desert type air filter | |
| Angle blade | |
| U blade | |
| Garbage blade | |
| 610mm track | |
| 660mm track |
