US$ 2,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Certificate
CE
Brand Name
TIMAC
Model Number
TRACTOR 500, TRACTOR 504
Place of Origin
Henan, China

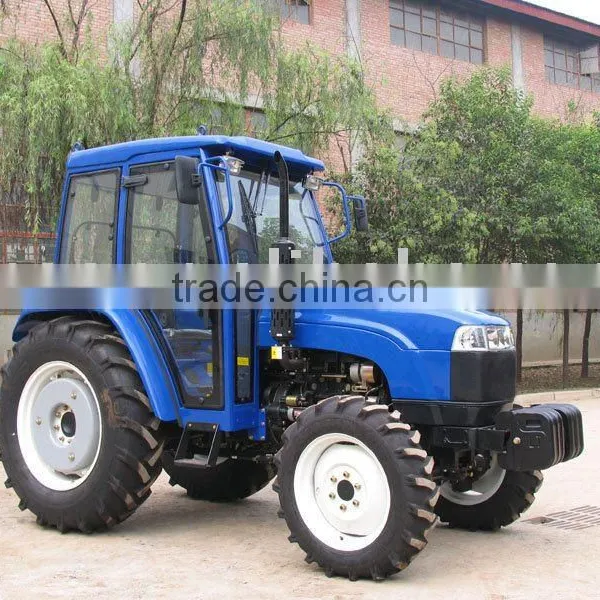

FOUR WHEEL FARM TRACTOR
The main characteristics:
1. Adopt new diesel , reliability well , has bigger moment of torsion reserve system;
2. 10 inches of pair of effects clutch;
3. The speed change box archives place is 4 X (2 + 1);
4. Detached driving force of postposition exports a device , drive balances , bears the weight of a force big;
5. The entire hydraulic pressure front wheel adopt the independent oil road gets lost , gets lost nimble , reliable , saves labour;
6. The force moment adopt disk brake , braking is big , the braking is reliable.
| Model | TRACTOR 500 | TRACTOR 504 | |
| Pattern | 4×2(Two turn actuation) | 4×4(Four-wheel drive) | |
| Outlook sizemm | Long (in front of belt counterweight) | 3579 | 3579 |
| Width | 1750 | 1750 | |
| High (to air vent) | 2130 | 2130 | |
| Spread of axies (mm) | 1946 | 1990 | |
| Front wheel tread (mm) | 1200-1500(Commonly used 1300) | 1250 | |
| Rear wheel tread (mm) | 1200-1500(Commonly used 1300) | ||
| Smallest gully (mm) | 400 | 325 | |
| Agronomy gully (mm) | 450 | 375 | |
| Changes radius (mm) | Unilateral brake | 3.1 | 3.4 |
| Unilateral brake | 3.5 | 4.1 | |
| Complete machine quality (kg) | Structure quality | 1665 | 1890 |
| Smallest use quality | 1840 | 2080 | |
| First disposes | 108 | 144 | |
| Latter disposes | 360 | 360 | |
| Fixed force of traction (KN) | 9 | 12 | |
| Engine model | 498BT | ||
| Demarcation power (KW) | 36.8 | ||
| Coupling | 10 inch dry list function or double-acting | ||
| Gear box | 4× (2 1) keeps off the composition type meshing wrap to shift gears | ||
| Speed range | 2.4-31.9 | ||
| Central rotation | Screw round bevel gear pair | ||
| Differential device | Two planetary gears, closed type | ||
| Differential lock | Plug type | ||
| Final transmission | Planet gear type | ||
| First driving axle | The entire seal bevel gear type (four-wheel drive type uses) | ||
| Transfer case | The straight tooth cylindrical gears (four-wheel drive type uses) | ||
| Front wheel tire specification | 6.0-16 8.3-20 | ||
| Trailing wheel tire specification | 12.4-28 | ||
| Diverter pattern | Mechanical or the entire hydraulic pressure changes | ||
| Brake labor | Biplate oil bath plate brake (mechanical type) | ||
| Hoist pattern | The half minute sets at the type | ||
| Ploughs the deep control mode | Strength, position control and fluctuation control | ||
| Suspension unit pattern | Postpositioned three point suspension | ||
| Dynamic output speed of spindle (r/min) | 540/760 | ||
