Crawler Excavator

Zhengzhou Timeway Machine Tool Co., Ltd.

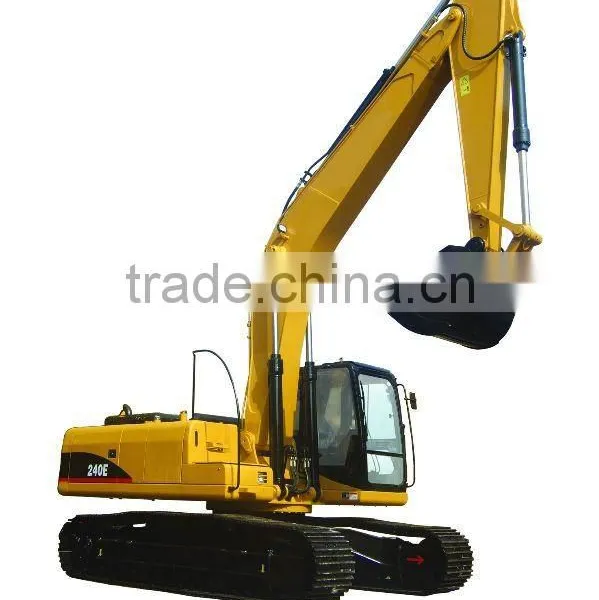

Crawler Excavator thumbnail-1
Crawler Excavator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
EXCAVATOR 240E
Condition:
New
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TIMAC
Model Number EXCAVATOR 240E
Condition New
Moving Type Crawler Excavator
Operating Weight 24200kg
Bucket capacity 1.1M3
Maximum Digging Height 9730mm
Maximum Digging Depth 6930mm
Machine Weight 24200kg
Max Digging Radius 10360mm

Crawler Excavator



DESCRIPTIONSPECIFICATON
MODELEXCAVATOR 240E
Working weight24200kg
Bucket capacity1.1M3
Track width600mm/800mm
Transport dimension 10055*2990*3280(mm)
Overall dimensionLength of track on ground3840mm
Ground clearance of counter weight1070mm
Tail swing radius2950mm
Total length10045mm
Total height 3280mm
Total width 2990mm
Track gauge2390mm
Min. ground clearance460mm
Track width600/800mm
Track height950mm
Working rangeMax. working radius10360mm
Max. digging depth6930mm
Max. vertical digging depth6320mm
Max. digging height9730mm
Max. dumping height6810mm
Min. swing radius3920mm
PerformanceGround pressure48Kpa/37.5Kpa
Swing speed12r/min
Travelling speed high/low5.5/3.5km/h
Grade ability35°
Noise inside the cab ≤80db(A)
Fuel tank340L
EngineCompany Cummins 6BTA5.9-C
Type 6 cylinder, inline, turbocharged
Rated horsepower133KW/2000rpm
Bore-stroke102*120mm
Displacement5.9L
Min. fuel consumption≤228g/kw.h
Max. torque /revolution651Nm/1500rpm
Main hydraulic pumpCompany KAWASAKI
Type K3V112DT-1X7R-9N4P-2V
Rated pressure34.3Mpa
Max. delivery 228*2L/min
Pump type 2*variable flow axial piston pump+1 gear pump
Method of power adjustmentGross power adjustment + variable power + negative flow control
SwingCompany KAWASAKI
motorType M5X180CHB-12A-69A/255-169-RG14D20A5
 Rated pressure 25Mpa
 Max. delivery 169.4cc/rev
Travel  motorCompany JAPAN NEBTESCO
Type GM35VL-A-87/135-3
Rated pressure 34.81MPa
Max. delivery 134.7cc/rev (max)
The pressure of hydraulic control systemWorking part31.4Mpa
Traveling part31.4Mpa
Hydraulic oil tank180L
Hydraulic oil filterDouble filter in the tank
Swing systemSwing speed 12RPM
Type constant closed disc type brake with buffer function
Chassis systemTrack featurethree grouser, grease tension
Track rollers and carrier rollersFloating sealing
Quantity2 carrier rollers and 9 track rollers
Brake typeHydraulic brake
Working equipmentArm length 5950mm
Rod length2020mm
Bucket digging force≥135KN
Rod crowed force≥108KN
Driving cabCab Imported cab, SAE certificate
Air-conditionerJiangsu chuang dao
Seat Direction adjustment
Instrument panel hour meter, engine revolution, oil temperature, water temperature, oil pressure.
ElectricPower24V
instrumentCompany XUZHOU KANG DA
 Battery VARTA  160A.H





Standard equipmentEngineCummins 6BTAA5.9-C
Hydraulic pumpKAWASAKI
Control valveKAWASAKI
Swing motor KAWASAKI
Travel motor JAPAN NEBTESCO
Cylinder HENG LI
Electrical InstrumentImported
Driving cabComfortable
Seat Grammer
Painting NIPPON
