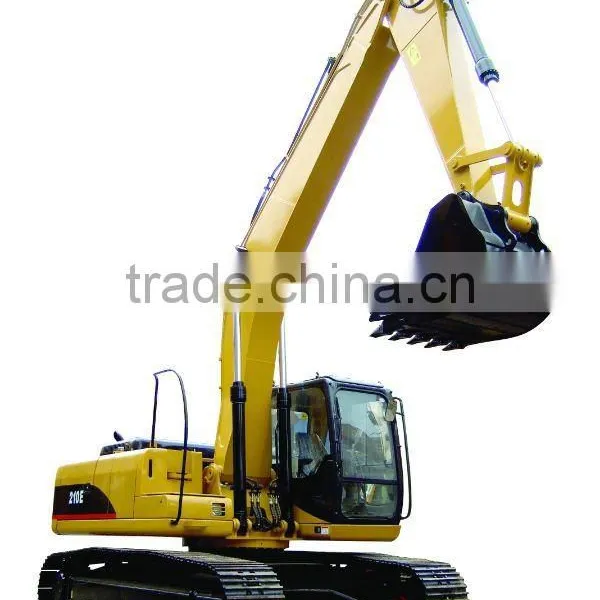

CRAWLER EXCAVATOR
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
EXCAVATOR 210E
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
TIMAC
Model Number
EXCAVATOR 210E
Condition
New
Moving Type
Crawler Excavator
Operating Weight
21470kg
Bucket capacity
0.90M3
Maximum Digging Height
9489mm
Maximum Digging Depth
6057mm
Machine Weight
21470kg
Max Digging Radius
9910mm
CRAWLER EXCAVATOR
| DESCRIPTION | SPECIFICATON | |
| MODEL | EXCAVATOR 210E | |
| Working weight | 21470kg | |
| Bucket capacity | 0.90M3 | |
| Track width | 600mm/800mm | |
| Transport dimension | 9540*2980*3020(mm) | |
| Overall dimension | Length of track on ground | 3650mm |
| Ground clearance of counter weight | 1070mm | |
| Total length | 9540mm | |
| Total height | 3130mm | |
| Total width | 2980mm | |
| Track gauge | 2380mm | |
| Min. ground clearance | 490mm | |
| Track width | 600mm | |
| Track height | 945mm | |
| Tail swing radius | 2810mm | |
| Working range | Max. working radius | 9910mm |
| Max. digging depth | 6638 mm | |
| Max. vertical digging depth | 6057 mm | |
| Max. digging height | 9489mm | |
| Max. dump height | 6672mm | |
| Min. swing radius | 3650mm | |
| Performance | Ground pressure | 44Kpa/35Kpa |
| Swing speed | 12r/min | |
| Travelling speed high/low | 5.4/3.1km/h | |
| Grade ability | 35° | |
| Noise inside the cab | ≤80db(A) | |
| Fuel tank | 360L | |
| Engine | Company | Cummins 6BTA5.9-C |
| Type | 6 cylinder, inline, turbocharged | |
| Rated horsepower | 112KW/1950rpm | |
| Bore-stroke | 102*120mm | |
| Displacement | 5.9L | |
| Min. fuel consumption | ≤228g/kw.h | |
| Max. torque / revolution | 597Nm/1600rpm | |
| Main hydraulic pump | Company | KAWASAKI |
| Type | K3V112DT-1X7R-9N2P-1V | |
| Rated pressure | 31.4Mpa | |
| Max. delivery | 208*2L/min | |
| Pump type | 2*variable flow axial piston pump+1 gear pump | |
| Method of power adjustment | Gross power adjustment + variable power + negative flow control | |
| Swing | Company | KAWASAKI |
| motor | Type | M5X130CHB-10A-12B/260-RG10D20K1 |
| Rated pressure | 25.5Mpa | |
| Max. delivery | 129.2c/rev | |
| Travel motor | Company | JAPAN NEBTESCO |
| Type | GM35VL-A-75/130 | |
| Rated pressure | 34.81MPa | |
| Max. delivery | 130.4cc/rev (max) | |
| The pressure of hydraulic control system | Working part | 31.4Mpa |
| Traveling part | 31.4Mpa | |
| Hydraulic oil tank | 160L | |
| Hydraulic oil filter | Double filter in the tank | |
| Swing system | Swing speed | 12RPM |
| Type | constant closed disc type brake with buffer function | |
| Chassis system | Track feature | three grouser, grease tension |
| Track rollers and carrier rollers | Floating sealing | |
| Quantity | 2 carrier rollers and 7 track rollers | |
| Brake type | Hydraulic brake | |
| Working equipment | Arm length | 5700mm |
| Rod length | 2800mm | |
| Bucket digging force | 120KN | |
| Rod crowed force | 95KN | |
| Driving cab | Cab | Imported cab, SAE certificate |
| Air-conditioner | Jiangsu chuang dao | |
| Seat | Direction adjustment | |
| Instrument panel | hour meter, engine revolution, oil temperature, water temperature, oil pressure. | |
| Electric | Power | 24V |
| instrument | Company | XUZHOU KANG DA |
| Battery | VARTA 160A.H | |
| Standard equipment | Engine | Cummins 6BTAA5.9-C |
| EURO II | ||
| Hydraulic pump | KAWASAKI | |
| Control valve | KAWASAKI | |
| Swing motor | KAWASAKI | |
| Travel motor | JAPAN NEBTESCO | |
| Cylinder | HENG LI | |
| Electrical Instrument | Imported | |
| Driving cab | luxury | |
| Seat | Grammer | |
| Painting | NIPPON |
