Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > China CNC Pipe Thread Lathe

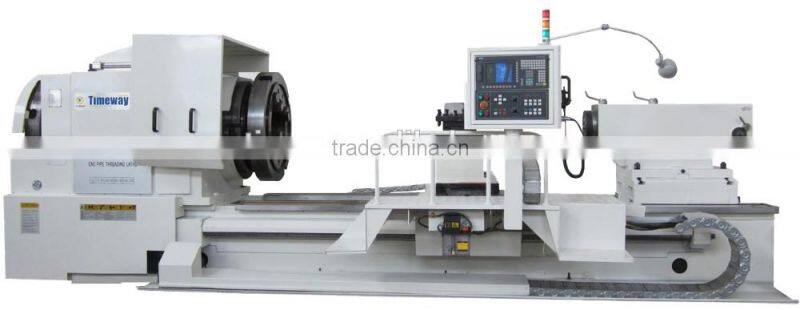

China CNC Pipe Thread Lathe

Name: China CNC Pipe Thread Lathe
Brand: TIMAC
SKU: 140798048
Availability: InStock

US$ 170,000 - 200,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 1250mm

Brand Name TIMAC

Model Number QK-460A

Voltage Customer's Requirement

Power(W) 28kw

Dimension(L*W*H) 6300x2520x2120mm

Weight 11000kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

CNC Pipe Thread Lathe (Oil Country Lathe)

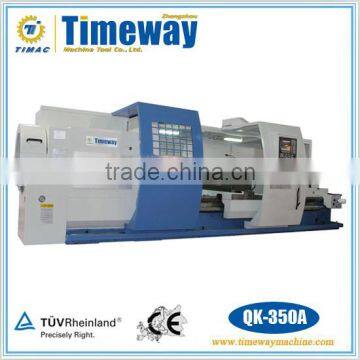

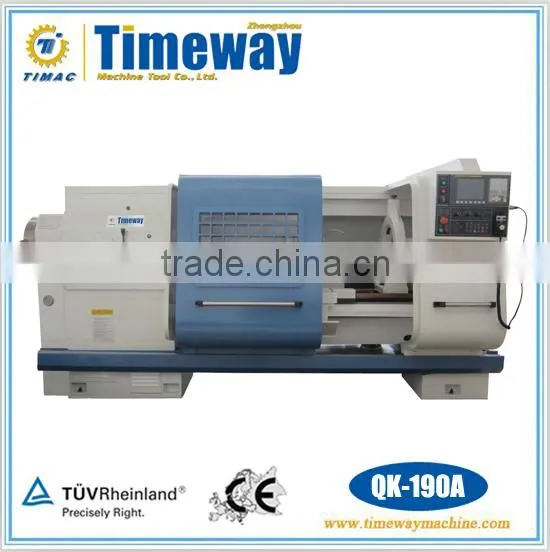

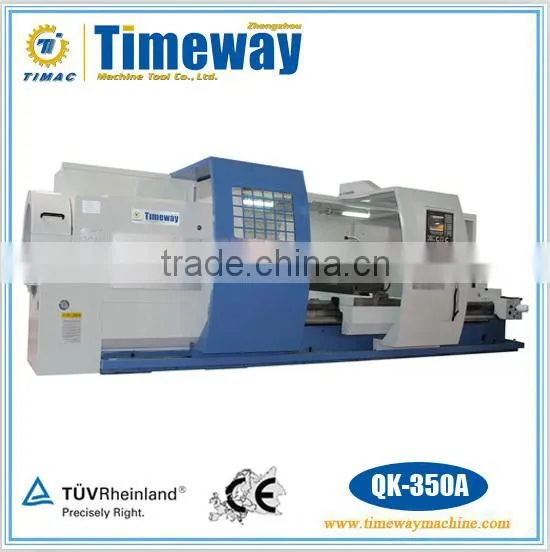

QK-120A QK-190A QK-260A QK-350A QK-460A

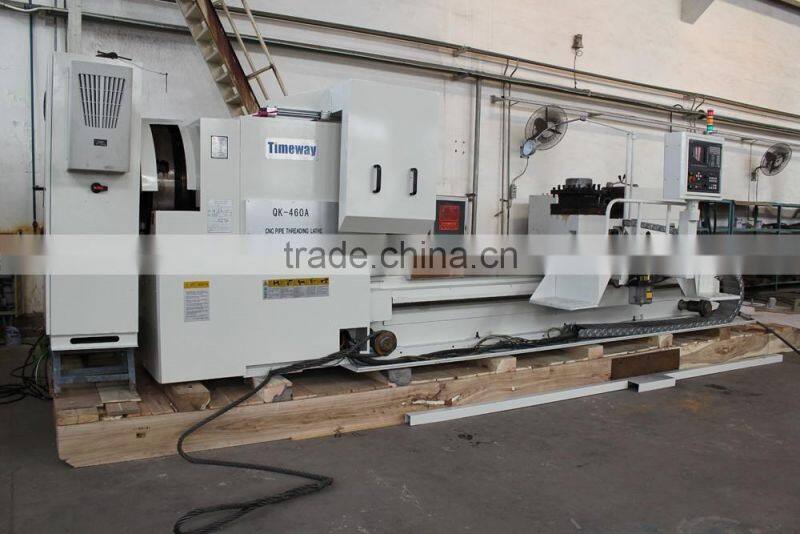

(465mm Large Spindle Bore x 3000/5000 Workpiece Length)

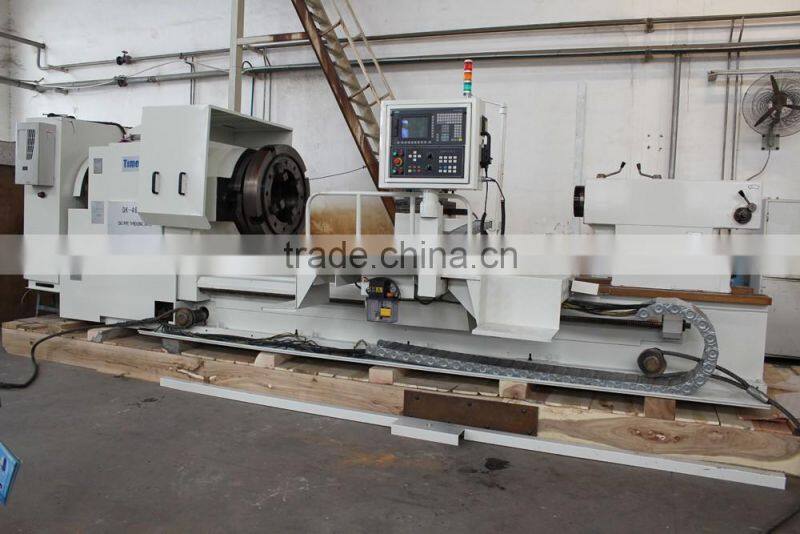

Main Outlook

Product Description

Features:

This machine was designed for use in demanding petroleum industry applications and integrates decades of experience.
Massive headstock with mian spindle running in tapered roller bearins, and two lathe chuck mounts.
The wide machine bed features large, hardened and ground guideways and high rigidity.
High torque drives and preloaded ball screws on all axes.
Automatic 4-step gears with infinitely variable speed ranges.
Hardened and ground gears for effective power transmission.
Heavy-duty 4-station tool holder with automatic tool changing function.
Including high performance coolant system, and central lubrication unit.
Control technology with award-winning reliability and many years of experience-FANUC or SIEMENS CNC system.

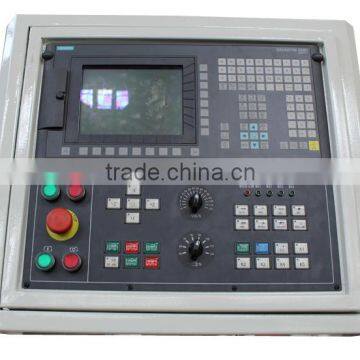

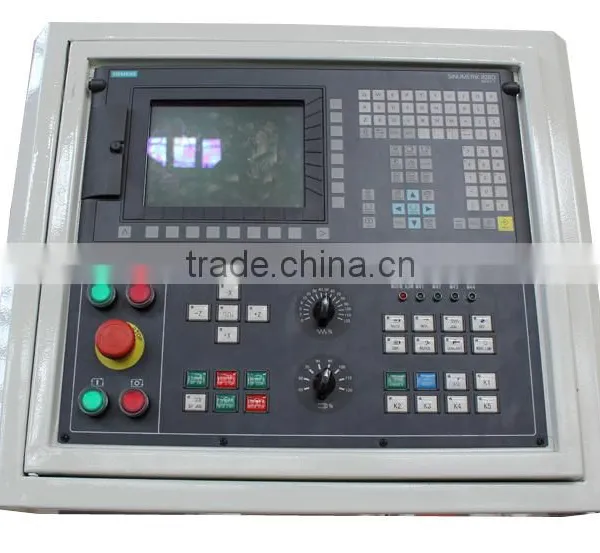

Electronic hand-wheel at the control panel for manual operation ensure easy, quick setup of new workpieces and tools.

Technical Parameter:

Specification		Unit	QK- 120A	QK- 190A	QK-260A	QK-350A	QK- 460A
Capacity	Centre height		385		500	550	650
	Swing over bed	mm	770		1000	1100	1250
	Swing over carriage	mm	480		630	730	900
	External diameter of pipes (manual chuck)	mm	120	190	70-260	114-340	300-460
	External diameter of pipes (hydraulic chuck)	mm	---	----	---	Optional: 127-340	---
	Maximum length of workpiece	mm	750/1000/1500/2000/3000		1500/3000/5000		3000/5000
	Maximum turning length	mm	600/800/1350/1850/2850		1300/2800/4800		2800/4800
	Span of guideway	mm	550		755		1100
Spindle	Spndle bore	mm	130	200	275	355	465
Spindle	Spindle nose		C11		A2-15		A2-28
Headstock	Step of Spindle speed (3phase asyn-chronous motor)		manual 3 steps,auto 6 steps 16 speeds	manual 2 steps,auto 4 steps 8 speeds	---	---	---
	Step of Spindle speed (Variable frequency motor)		---	---	auto 4 gear steps,stepless speed change in the step.
	Range of spindle speed (3phase asyn-chronous motor)		25-800	90-450	---	---	---
	Range of spindle speed (Variable frequency motor)		---	---	6-400	5-320	5-200
	Main motor power (3phase asyn-chronous motor)	kw	11		---	---	---
	Main motor power (Variable frequency motor)		---	---	18.5		28/38
Chuck	Chuck type(manual chuck)		manual 3 jaw φ380	manual 3 jaw φ500	manual 4 jaw φ630	manual 4 jaw φ800	manual 4 jaw φ1000
Chuck	Chuck type(hydraulic chuck)					Optional: 3 jaw φ760
Feed	Min.feed increment of X-/Z-axis	mm	0.001/0.001
	Rapid speeds of X-/Z-axis	mm/min	3000/6000
	Max.travel of x-axis	mm	390		630		800
Carriage	Tool-post working position		Vertical 4-position240		Vertical 4-position300
	Indexing time	s	2.5		4
	Indexing repeatility	mm	0.008		0.01
	Section of tool shank	mm	32		40
Tailstock	Diameter of tailstock quill	mm	100		160
	Travel of tailstock quill	mm	250		300
	Taper hole of tailstock quill		Morse 5		Morse 6
Accuracy	Workpiece accuracy		IT6-IT7
Accuracy	Surface roughness	μm	Ra1.6
CNC	Alternatives		FANUC 0i TD; SIEMENS 840 DSL; FAGOR 8055TC
