Manual Operation Tube Threading Lathe for Turning Pipe Threads
US$ 20,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC 355mm(14") Hollow Spindle Oil Country Lathe -- QK-350AUS$ 40,000 - 200,000MOQ: 1 Set -
Pipe Threading Turning LatheUS$ 20,000 - 150,000MOQ: 1 Set
-
Heavy Duty CNC Horizontal Large Spindle Bore Tube (pipe) Thread Lathe For Oil FieldUS$ 170,000 - 200,000MOQ: 1 Set
-
Q-280S Heavy Duty Threading Turning Lathe Machine for Oil FieldUS$ 20,000 - 200,000MOQ: 1 Set
-
Manual Horizontal Tube Threading Lathe for Oil FieldUS$ 20,000 - 50,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Manual
Max. Swing Diameter
630/800mm
Brand Name
TIMAC
Model Number
Q-225
Voltage
Customer's Requirement
Power(W)
7.5kw
Dimension(L*W*H)
5157x1360x1555mm
Weight
5150kg
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
Manual Operation Tube Threading Lathe for Turning Pipe Threads
Q-130 Q-200 Q-225

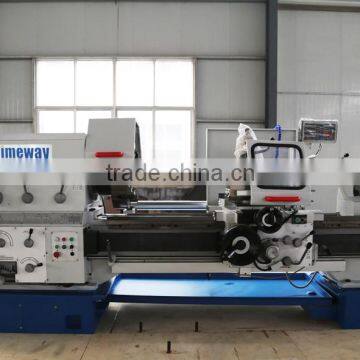

Main Outlook
Product Description
Features:
- The oil country lathes are used for turning pipe threads, inside and outside.
- They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.
- Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides
- High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
- Heavy machine bed made of premium cast-iron with hardened and ground guideways.
- Central, practical controls for feeds and thread leads.
- Wide spectrum of inch and metric threads.
- Gears are hardened and ground.
- Heavy-duty 4-station tool holder.
- Coolant system is included.
Technical Parameter:
| Specification | Unit | Q-130 | Q-200 | Q-225 | |
| Capacity | Swing over bed | mm | Φ630/Φ800 | Φ630/Φ800 | Φ630/Φ800 |
| Swing over cross slide | mm | Φ340/Φ540 | Φ340/Φ540 | Φ340/Φ540 | |
| Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | |
| Pipe threading range | mm | Φ30-126 | Φ50-193 | Φ50-220 | |
| Bed width | mm | 550 | 550 | 550 | |
| X-axis travel | mm | 320 | 320 | 320 | |
| Z-axis travel | mm | 1310/2810 | 1310/2810 | 1310/2810 | |
| Max. load capacity | kg | 3000 | 3000 | 3000 | |
| Spindle | Spindle bore | mm | Φ130 | Φ200 | Φ225 |
| Spindle speed steps | steps | FWD.18/REV.9 | FWD.12/REV.6 | FWD.12/REV.6 | |
| Spindle speed | rpm | 12-642/19-800 | 24-300/38-384 | 24-300/38-384 | |
| Chuck size | mm | Φ400 | Φ520 | Φ520 | |
| Chuck type | - | 3-jaw manual | 4-jaw manual | 4-jaw manual | |
| Turret | Turret type | - | Manual 4 stations | Manual 4 stations | Manual 4 stations |
| Tool shank size | mm | 32x32 | 32x32 | 32x32 | |
| Turret travel | mm | 200 | 200 | 200 | |
| Feed | X-axis feed kinds/range | mm/r | 22/0.02-0.45 | 22/0.02-0.45 | 22/0.02-0.45 |
| X-axis rapid feed | mm/min | 2300 | 2300 | 2300 | |
| Z-axis feed kinds/range | mm/r | 26/0.07-1.33 | 26/0.07-1.33 | 26/0.07-1.33 | |
| Z-axis rapid feed | mm/min | 4000 | 4000 | 4000 | |
| Thread Cutting | No. of Metric thread and range | mm | 52/1-224 | 24/1-14 | 24/1-14 |
| No. of Inch thread and range | T.P.I. | 40/2-28 | 40/2-28 | 40/2-28 | |
| No. of Module thread and range | mm | - | - | - | |
| No. of DP thread and range | D.P. | - | - | - | |
| Tailstock | Tailstock quill diameter | mm | Φ100 | Φ100 | Φ100 |
| Tailstock quill taper | - | MT5# | MT5# | MT5# | |
| Tailstock quill travel | mm | 250 | 250 | 250 | |
| Power | Main motor power | kw | 7.5 | 7.5 | 7.5 |
| Rapid motor power | kw | 0.3 | 0.3 | 0.3 | |
| Coolant motor power | kw | 0.125 | 0.125 | 0.125 | |
| Others | Machine dimensions | mm |
3657/5157 x1360x1480 |
3657/5157 x1360x1555 |
3657/5157 x1360x1555 |
| Machine weight | kg | 3800/4600 | 4200/5050 | 4300/5150 | |
Spindle Speed and Steps: Through changing frequency to realizing stepless change speed in the shift.
For Q-130 series: 3shifts, 30-650rpm stepless.
For Q-200 series: 4shifts, 20-500rpm stepless.
For Q-225 series: 4shifts, 20-500rpm stepless.
Standard Configuration:
- 3/4 - jaw chuck, 2 sets
- Taper turning device, 1 set
- Out board support, 1 piece
- Manual moving tailstock
- Chuck & tool post guard
- Coolant system, Halogen light
- Maintenance tool & tool box
- Operation manual in English
- DRO (Optional)

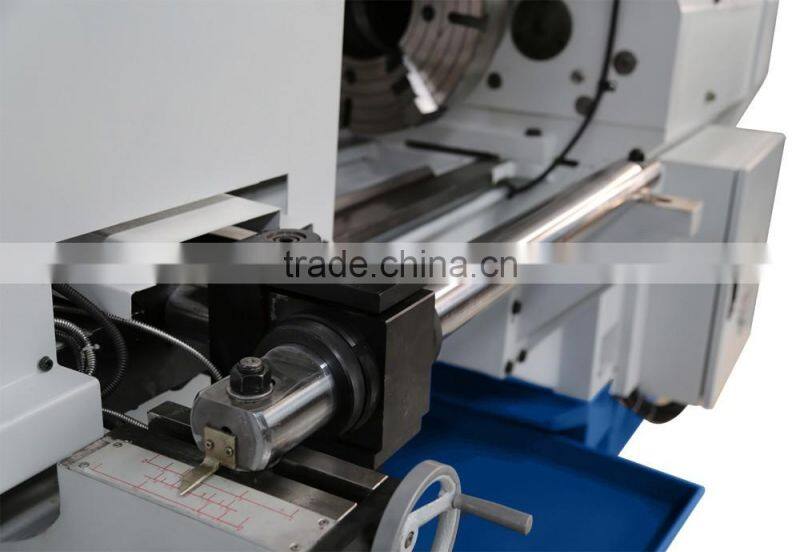

Detail Images
Machining Taper Thread:
Measuring Taper Thread:

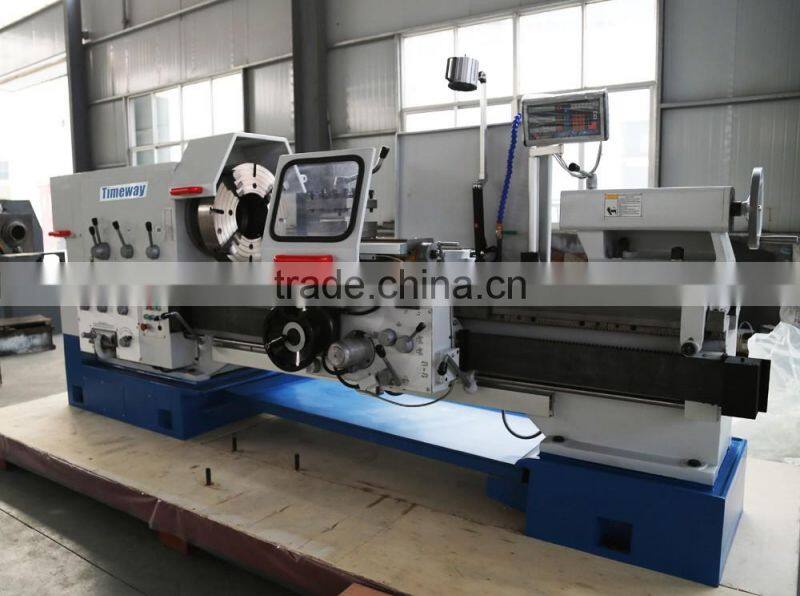

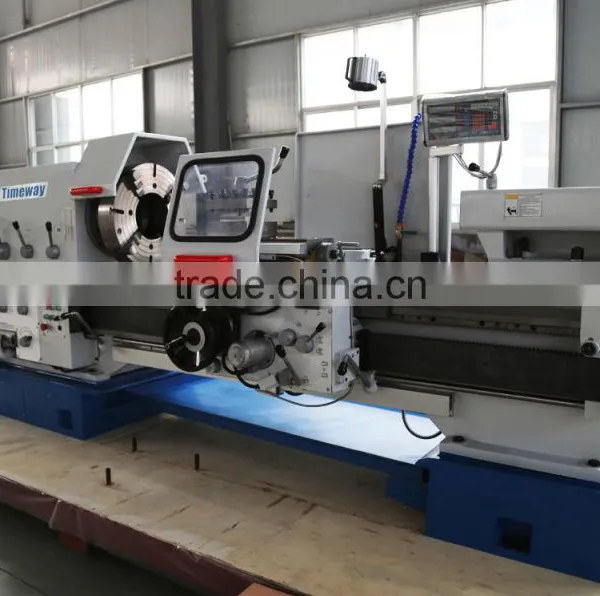

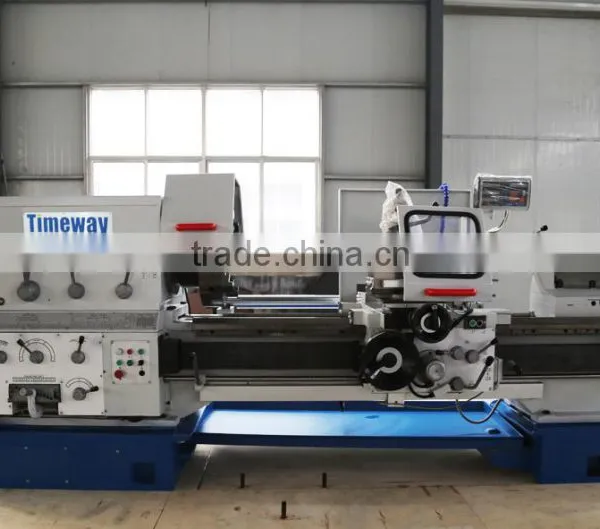

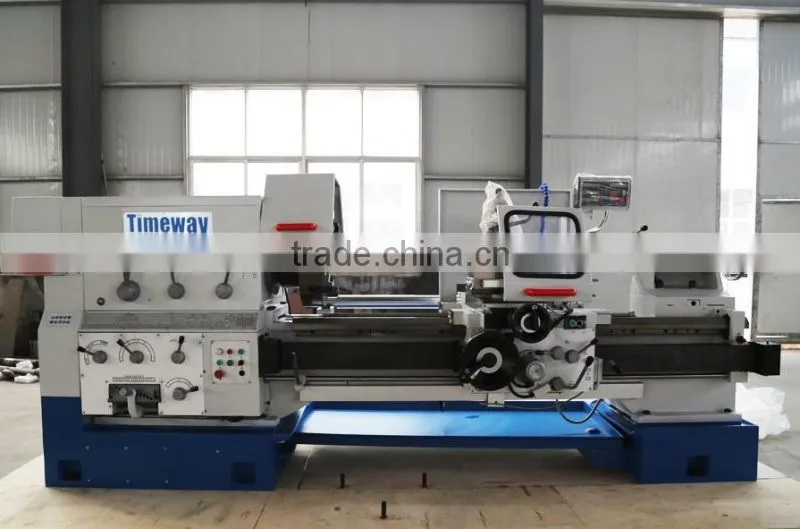

Actual Photos:(Q-200, Q-225)
