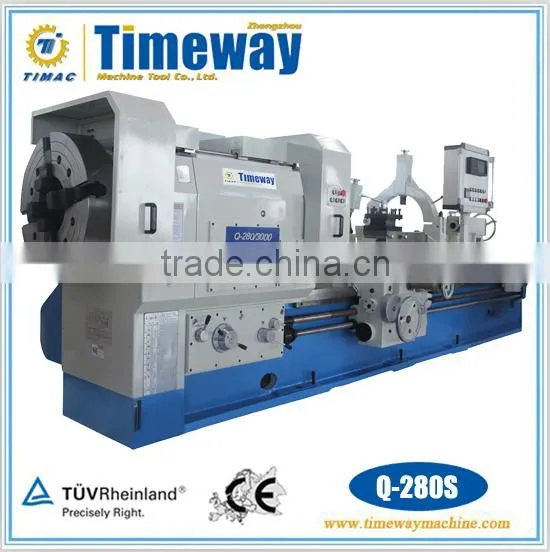

Q-280S Heavy Duty Threading Turning Lathe Machine for Oil Field
US$ 20,000 - 200,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manual Horizontal Tube Threading Lathe for Oil FieldUS$ 20,000 - 50,000MOQ: 1 Set -
Pipe Thread Cutting Lathe Machine(Oil Country Lathe Machine)US$ 25,000 - 75,000MOQ: 1 Set
-
Horizontal Flat Bed Tube Lathe With Large Spindle BoreUS$ 20,000 - 100,000MOQ: 1 Set
-
Large Spindle Bore CNC Tube Cut-off LathesUS$ 40,000 - 200,000MOQ: 1 Set
-
Conventional Big Bore Double Chuck LatheUS$ 30,000 - 150,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Manual
Max. Swing Diameter
1000mm
Brand Name
TIMAC
Model Number
Q-280S
Voltage
As per customer request
Power(W)
AC18.5kw
Dimension(L*W*H)
As actual
Weight
As actual
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
Heavy Duty Cutting Threading Turning Lathe Machine for Oil Field
Q-280S Q-360S Q-360A Q-460S
Application:
The series lathe is including all functions and performances of common lathe, it is used for turning internal and external (taper) threads. So pipe threading lathe can become a kind of special-use lathe.
According to different diameter of workpieces, customer can choose different machine tools. We can provide follows:
Q-280S (280mm), Q-360S (360mm),
Q-360A (360mm), Q-460S (460mm),
Main Outlook
Product Description
Features:
- This lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage.
- It is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.
- The machine is equipped with a tapering unit which can work out a 1:4 taper.
- The machine is able to cut both metric and with threads without changing the translating gear.
- The dripping worm in the apron can protect the mechanisms of the lathe automatically.
- The guide way is hardened and finely finished.
- The great power of the machine is competent at heavy load and power cutting.
- The floor center rest can be moved freely as required by the user.
- The center rest is provided with an adjustable clamp unit for long pipes, greatly reducing intensity of labor.
-
The double 4-jaw chucks offer free clamp of both short and long pipes.
Technical Parameter:
| Specification | Unit | Q-280S | Q-360S | Q-460S |
| Diameter of spindle bore | mm | Φ280 | Φ360 | Φ460 |
| Max. swing over bed | mm | Φ1000 | Φ1000 | Φ1250 |
| Max. swing over tool post | mm | Φ700 | Φ640 | Φ890 |
| Max. workpiece lengt between centers | mm | 1500/2000/3000/4000/5000/6000/7000/8000/9000 | ||
| Max. turning length. | mm | 1300/1800/2800/3800/4800/5800/6800/7800/8800 | ||
| Max. load capacity between two centers | kg | 4000 | 6000 | 6000 |
| Width of bed | mm | 600 | 755 | 970 |
| Spindle speed step | steps | 8 | 8 | 8 |
| Spindle speed range | rpm | 5-315 | 6.3-315 | 6.3-315 |
| Main motor power | kw | AC18.5 | AC22 | AC30 |
| Number and range of Metric thread | mm | 44 kinds, 1-120 | ||
| Number and range of Inch thread | T.P.I. | 37 kinds, 30-11/8 | ||
| Number and range of Module thread | mm | 46kinds, 0.5-60 | ||
| Number and range of Pitch thread | D.P. | 46kinds, 0.5-60 | ||
| Tool post station | - | Vertical 4-station | ||
| Tool section | mm | 32x32 | 45x45 | 45x45 |
| Diameter of tailstock sleeve | mm | Φ120 | Φ160 | Φ160 |
| Tailstock taper | - | Morse No.6 | Metric No.80 | Metric No.80 |
| Tailstock quill travel | mm | 300 | 300 | 300 |
| Rapid motor power | kw | 1.5 | 1.5 | 1.5 |
| Coolant pump power | kw | 0.15 | 0.15 | 0.15 |
Notes: Q-360A is improved on the basis of the Q-360S, increasing the center height of spindle, then increasing swing diameter.
For Q-360A: Max.swing over bed: 1250mm, Max. swing over carriage: 900mm.
Standard Configuration:
- 4-jaw chuch(front & rear)
- Steady rest
- Follow rest
- Taper turning attachment
- Oil gun
- Coolant system
- Working light
- Electric tailstock
- General tools
- Foundation bolts
- Operation manual(English edition)
Detail Images

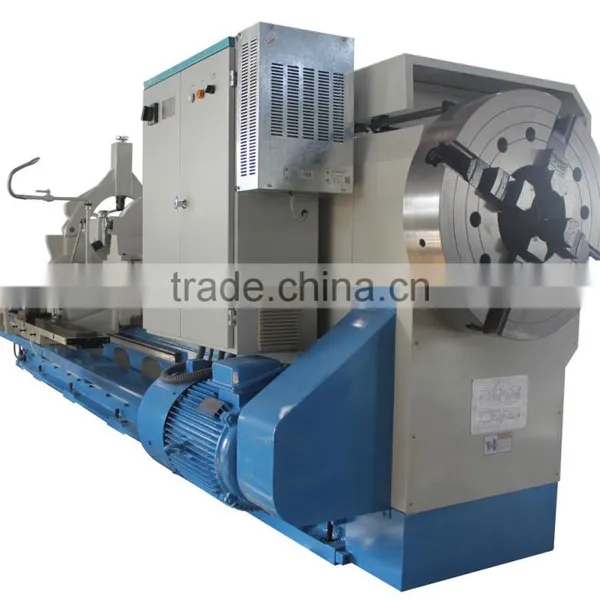

• Spindle Box and 4-jaw Chuck • Carriage Unit • Electric Tailstock
• Taper Turning Device • Operation Panel
