Manual Horizontal Tube Threading Lathe for Oil Field
US$ 20,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pipe Thread Cutting Lathe Machine(Oil Country Lathe Machine)US$ 25,000 - 75,000MOQ: 1 Set -
Horizontal Flat Bed Tube Lathe With Large Spindle BoreUS$ 20,000 - 100,000MOQ: 1 Set
-
Large Spindle Bore CNC Tube Cut-off LathesUS$ 40,000 - 200,000MOQ: 1 Set
-
Conventional Big Bore Double Chuck LatheUS$ 30,000 - 150,000MOQ: 1 Set
-
Q-225 Large Spindle Bore Pipe Thread Lathe(Oil Country Lathe)US$ 20,000 - 50,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Manual
Max. Swing Diameter
1000mm
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
Q-280 x3M
Voltage
As request
Power(W)
22kw
Dimension(L*W*H)
6500x2100x1600mm
Weight
11500kg
Certification
ISO, CE Standard
After-sales Service Provided
Engineers available to service machinery overseas

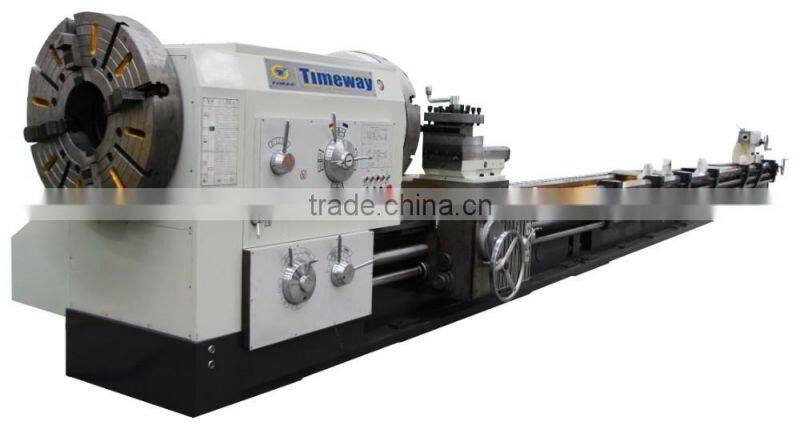

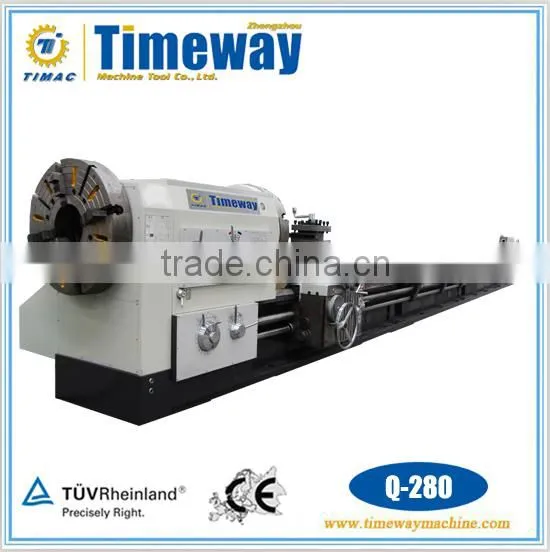

Manual Horizontal Tube Threading Lathe for Oil Field
Q-200 Q-225 Q-240 Q-280 Q-330

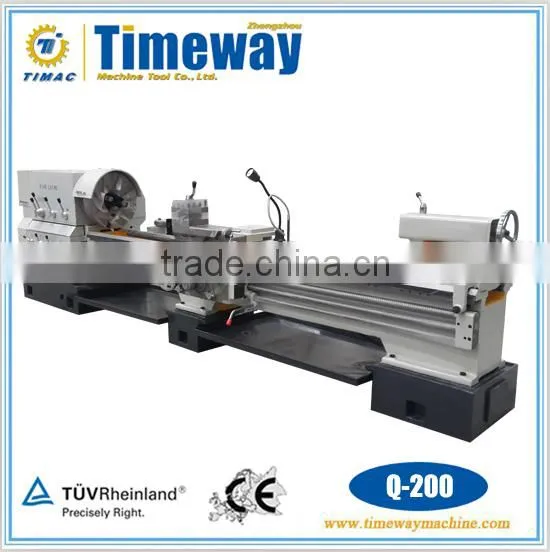

Main Outlook
Product Description
Features:
- The oil country lathes are used for turning pipe threads, inside and outside.
- They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.
- Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides
- High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
- Heavy machine bed made of premium cast-iron with hardened and ground guideways.
- Central, practical controls for feeds and thread leads.
- Wide spectrum of inch and metric threads.
- Gears are hardened and ground.
- Heavy-duty 4-station tool holder.
- Coolant system is included.
Machining Inner and Outer Taper Threads:
Technical Parameter:
| Specification | Unit | Q-200 | Q-225 | Q-240 | Q-280 | Q-330 | |
| Capacity | Swing over bed | mm | Φ630/Φ800 | Φ630/Φ800 | Φ800 | Φ1000 | Φ1000 |
| Swing over cross slide | mm | Φ340/Φ540 | Φ340/Φ540 | Φ480 | Φ610 | Φ610 | |
| Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | |
| Pipe threading range | mm | Φ50-193 | Φ50-220 | Φ60-230 | Φ130-270 | Φ190-320 | |
| Bed width | mm | 550 | 550 | 705 | 755 | 755 | |
| X-axis travel | mm | 320 | 320 | 320 | 520 | 520 | |
| Z-axis travel | mm | 1310/2810 | 1310/2810 | 1310/2810 | 1300/2800 | 1300/2800 | |
| Max. load capacity | kg | 3000 | 3000 | 3000 | 5000 | 5000 | |
| Spindle | Spindle bore | mm | Φ200 | Φ225 | Φ240 | Φ280 | Φ330 |
| Spindle speed steps | steps | FWD.12/REV.6 | FWD.12/REV.6 | 12 | 12 | 9 | |
| Spindle speed | rpm | 24-300/38-384 | 24-300/38-384 | 20-460 | 16-380 | 7.5-280 | |
| Chuck size | mm | Φ520 | Φ520 | Φ630 | Φ800 | Φ780 | |
| Chuck type | - | 4-jaw manual | 4-jaw manual | 4-jaw electric | 4-jaw manual | 4-jaw electric | |
| Turret | Turret type | - | Manual 4 stations | Manual 4 stations | Manual 4 stations | Manual 4 stations | Manual 4 stations |
| Tool shank size | mm | 32x32 | 32x32 | 32x32 | 40x40 | 40x40 | |
| Turret travel | mm | 200 | 200 | 200 | 300 | 300 | |
| Feed | X-axis feed kinds/range | mm/r | 22/0.02-0.45 | 22/0.02-0.45 | 22/0.02-0.45 | 64/0.05-12.15 | 22/0.02-0.45 |
| X-axis rapid feed | mm/min | 2300 | 2300 | 2300 | 1870 | 1870 | |
| Z-axis feed kinds/range | mm/r | 26/0.07-1.33 | 26/0.07-1.33 | 26/0.07-1.33 | 64/0.1-24.3 | 26/0.07-1.33 | |
| Z-axis rapid feed | mm/min | 4000 | 4000 | 4000 | 3740 | 3740 | |
|
Thread Cutting |
No. of Metric thread and range | mm | 24/1-14 | 24/1-14 | 1-15 | 30/1-30 | 23/1-15 |
| No. of Inch thread and range | T.P.I. | 40/2-28 | 40/2-28 | 1-14 | 27/1-28 | 22/2-28 | |
| No. of Module thread and range | mm | - | - | 0.5-7.5 | - | - | |
| No. of DP thread and range | D.P. | - | - | 2-28 | - | - | |
| Tailstock | Tailstock quill diameter | mm | Φ100 | Φ100 | Φ100 | Φ140 | Φ140 |
| Tailstock quill taper | - | MT5# | MT5# | MT5# | MT6# | MT6# | |
| Tailstock quill travel | mm | 250 | 250 | 250 | 300 | 300 | |
| Power | Main motor power | kw | 7.5 | 7.5 | 18.5 | 22 | 22 |
| Rapid motor power | kw | 0.3 | 0.3 | 1.1 | 1.5 | 1.5 | |
| Coolant motor power | kw | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | |
| Others | Machine dimensions | mm |
3657/5157 x1360x1555 |
3657/5157 x1360x1555 |
4190/5690 x2000x1520 |
5000/6500 x2100x1600 |
5000/6500 x2100x1630 |
| Machine weight | kg | 4200/5050 | 4300/5150 | 8500/9500 | 10000/11500 | 11500/13000 | |
Standard Configuration:
- 4 - jaw independent chuck, 2 sets
- Taper turning device, 1 set
- Out board support, 1 piece
- Manual moving tailstock
- Chuck & tool post guard
- Coolant system, Halogen light
- Maintenance tool & tool box
- Operation manual in English
Detail Images

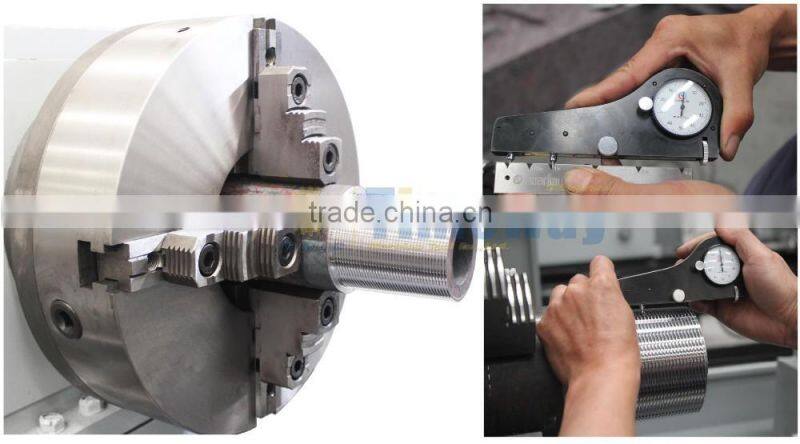

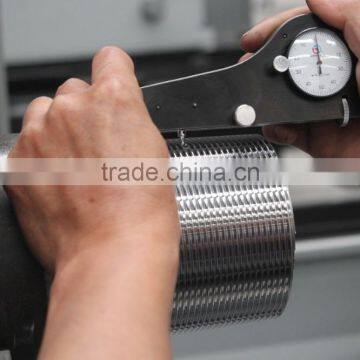

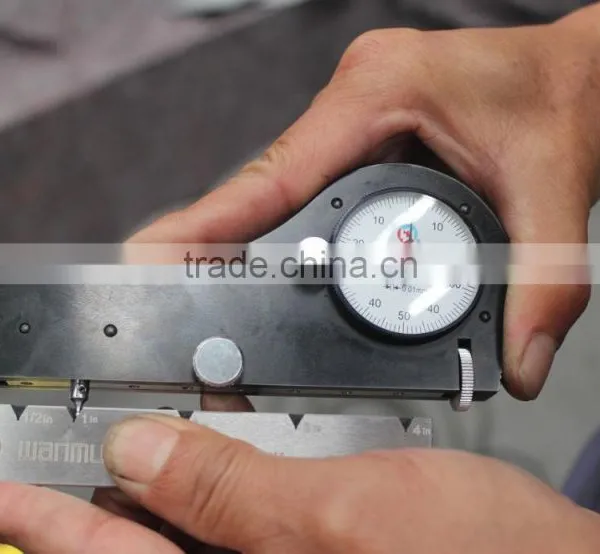

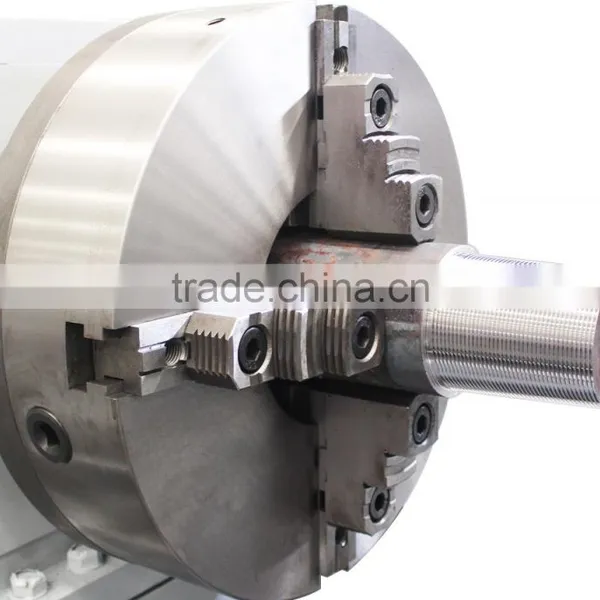

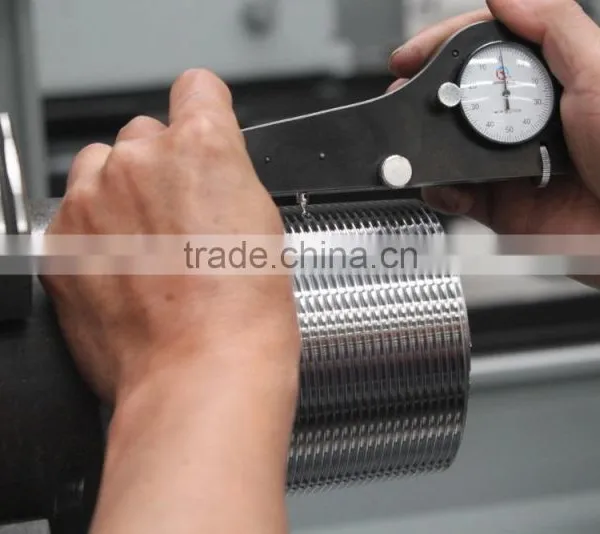

Taper Threads Cutting and Testing:

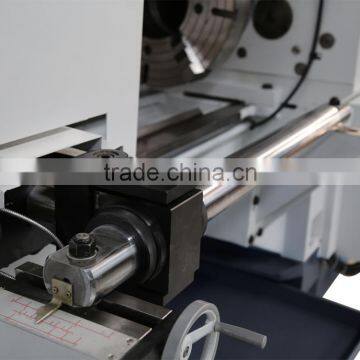

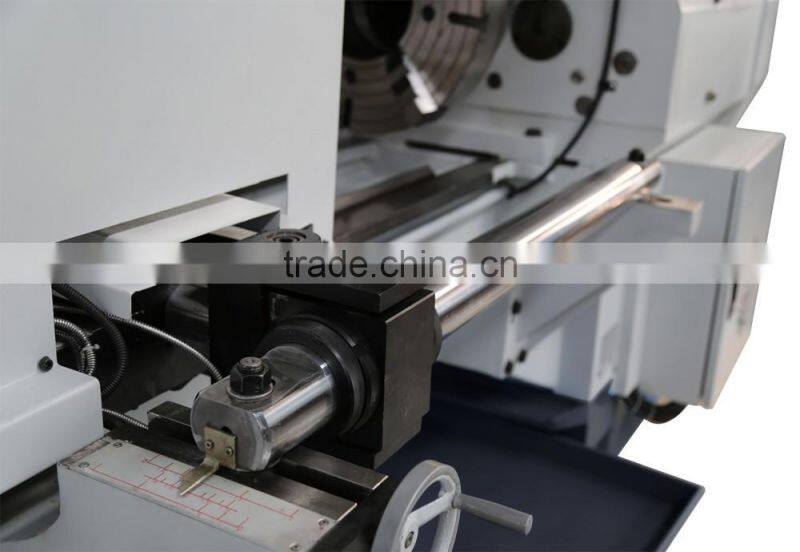

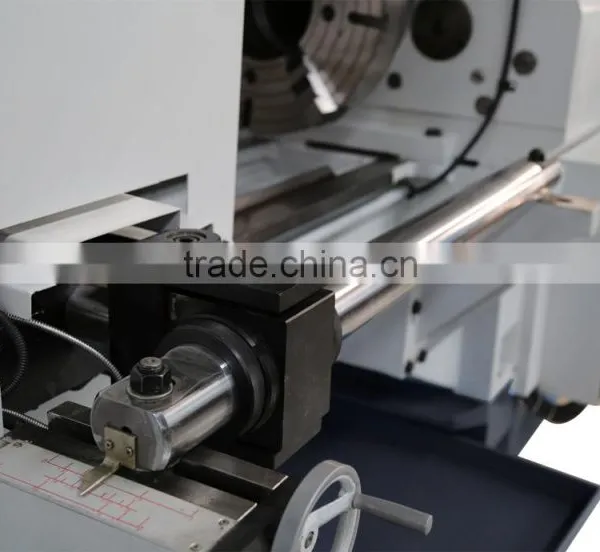

Taper Turning Device:
