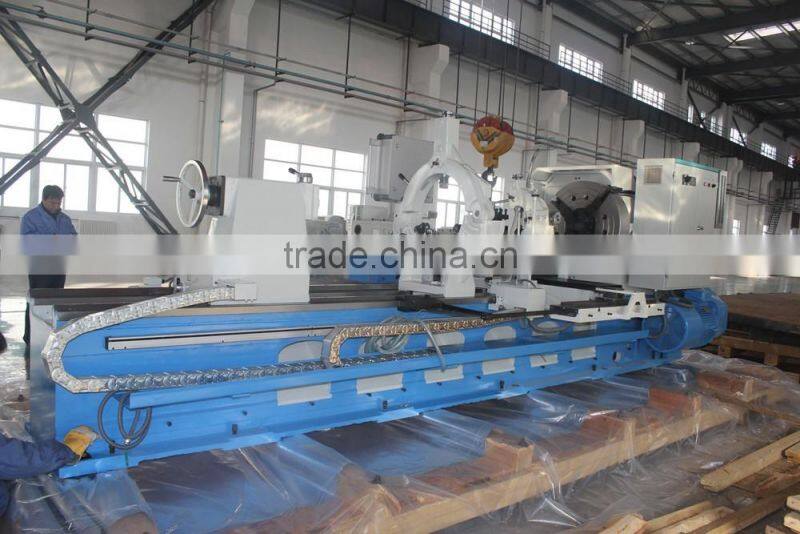

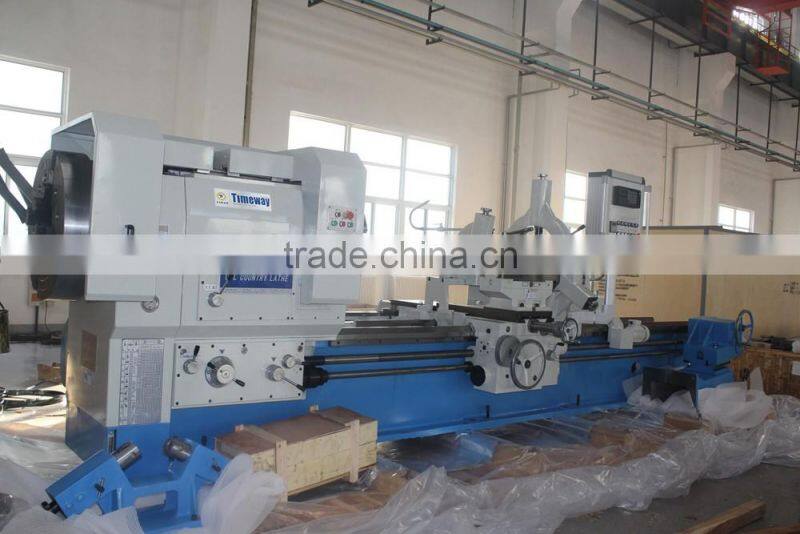

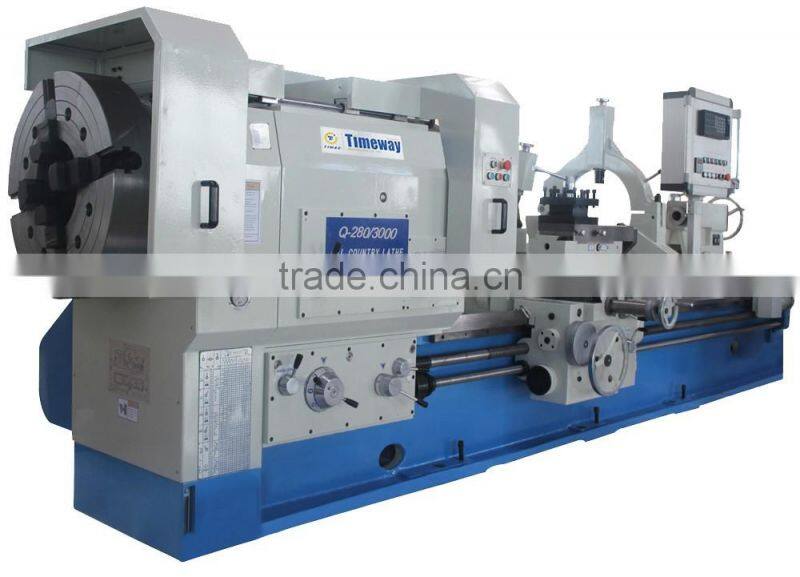

Horizontal Manual Large Spindle Bore Lathe Machine

Horizontal Manual Large Spindle Bore Lathe Machine

Q-280S     Q-360S      Q-460S

Features:

• This lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage.
• It is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.

• The machine is equipped with a tapering unit which can work out a 1:4 taper.

• The machine is able to cut both metric and with threads without changing the translating gear.

• The dripping worm in the apron can protect the mechanisms of the lathe automatically.

• The guide way is hardened and finely finished.

• The great power of the machine is competent at heavy load and power cutting.

• The floor center rest can be moved freely as required by the user.

• The center rest is provided with an adjustable clamp unit for long pipes, greatly reducing intensity of labor.

• The double 4-jaw chucks offer free clamp of both short and long pipes.

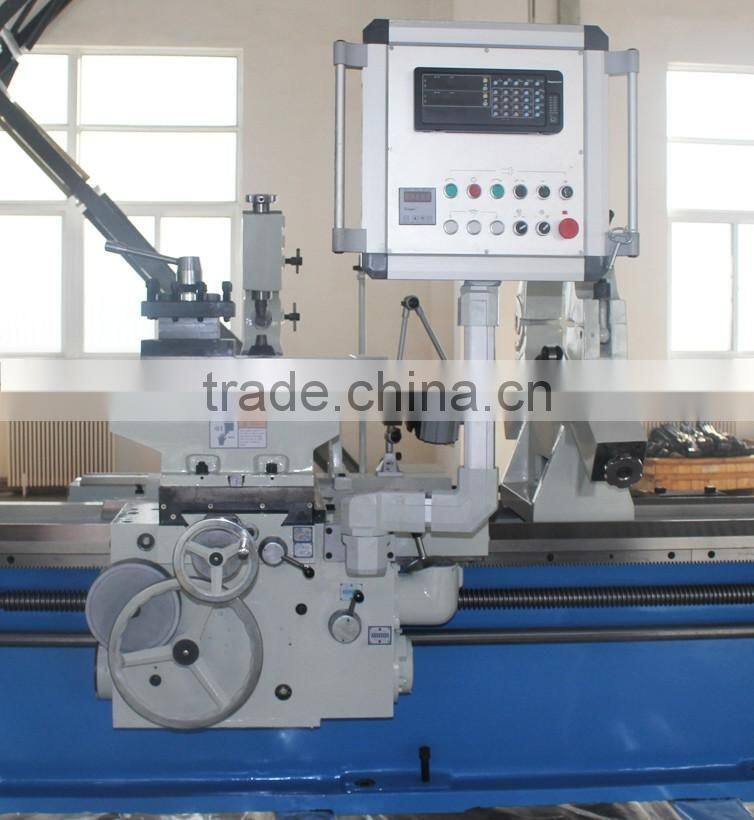

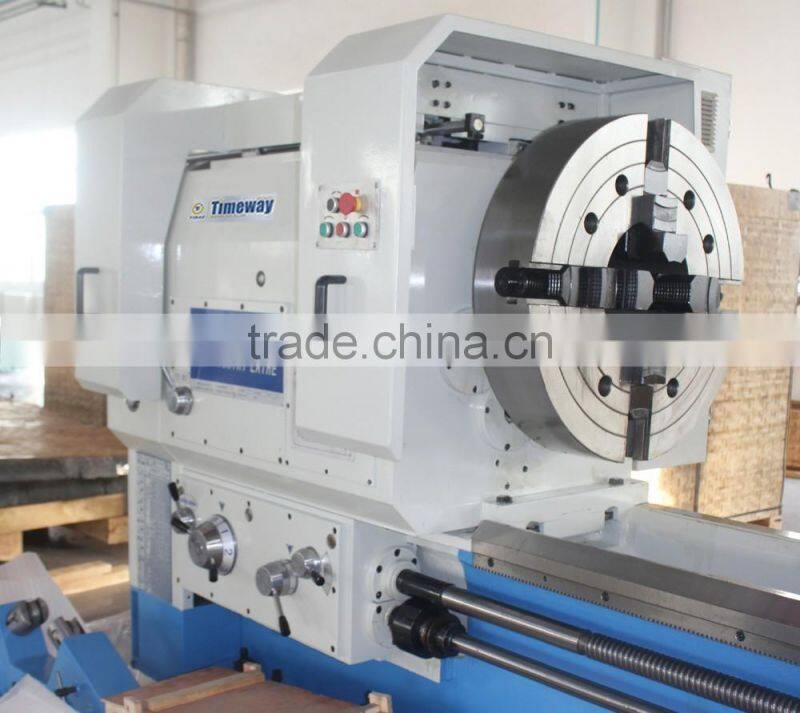

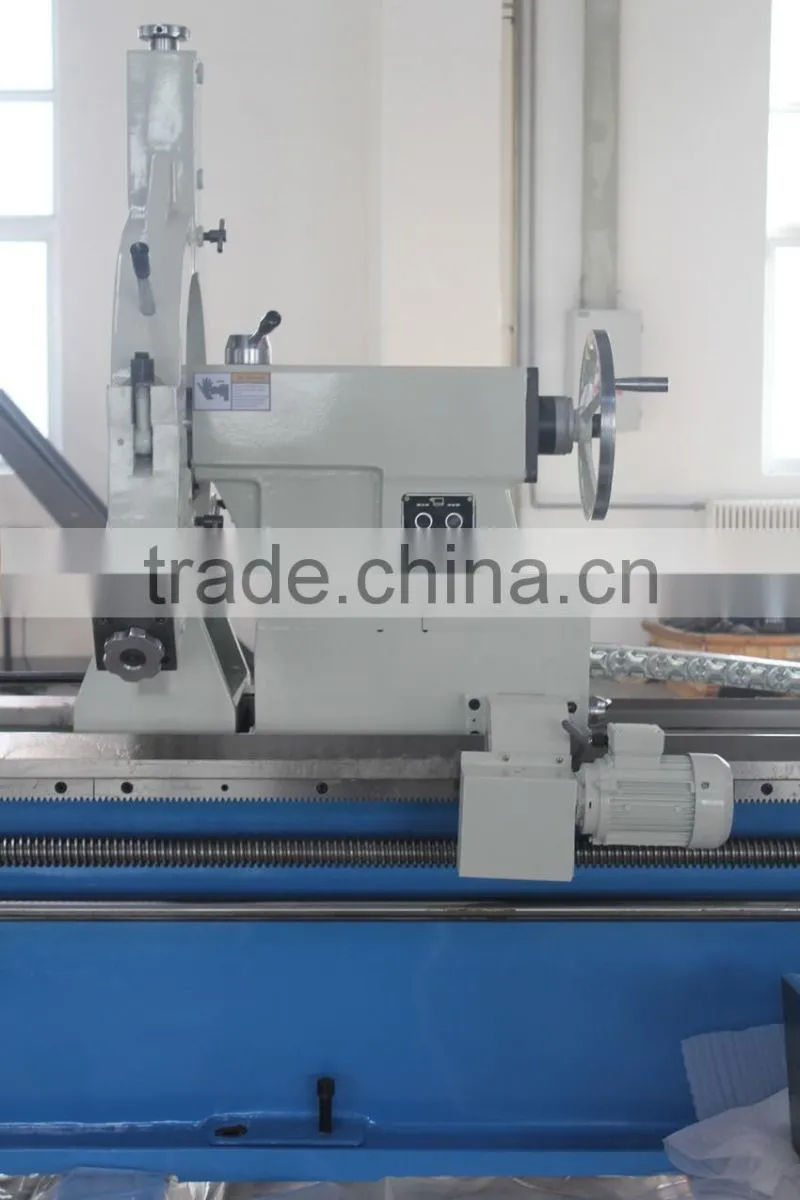

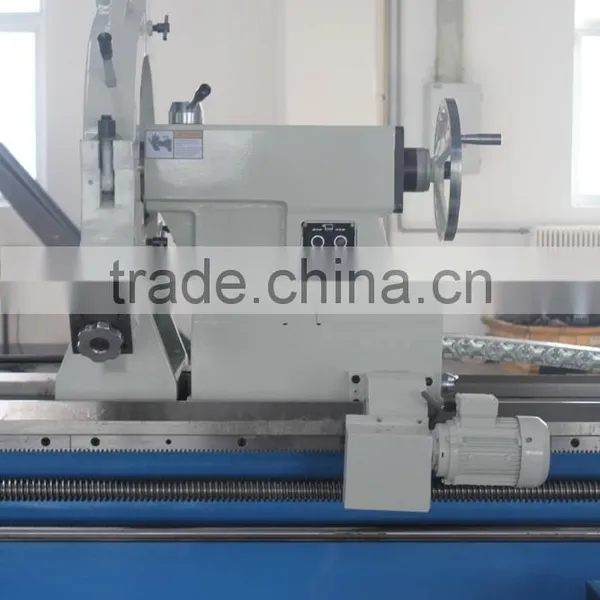

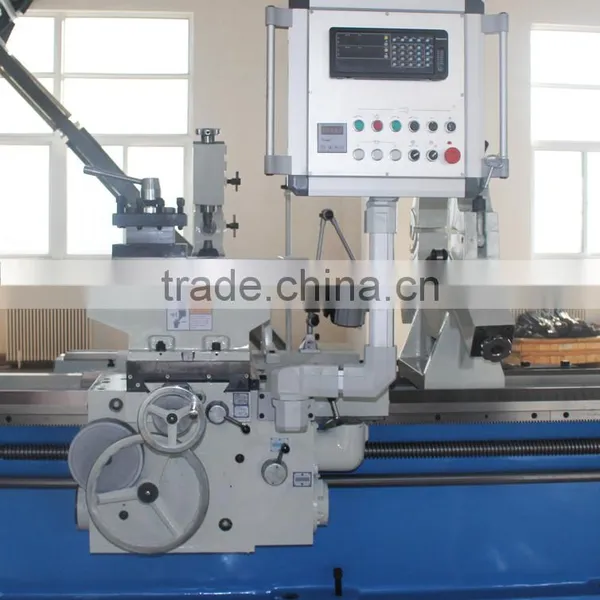

         • Spindle Box and 4-jaw Chuck                                 • Carriage Unit                    • Electric Tailstock (Optional)

Technical Parameter:

Standard Configuration:

• 4-jaw chuch(front & rear)

• Steady rest

• Follow rest

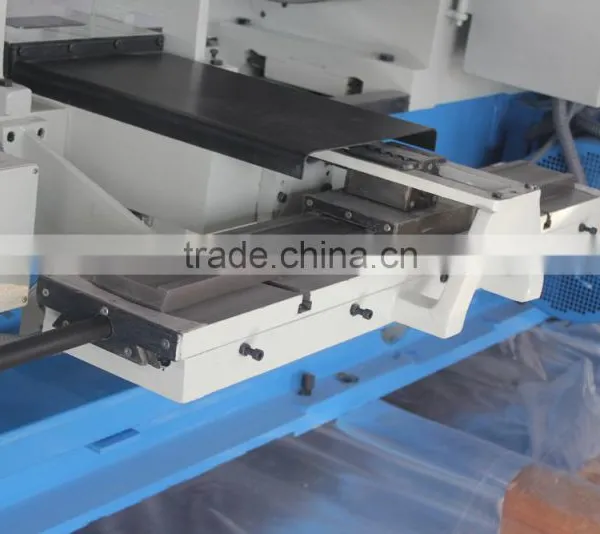

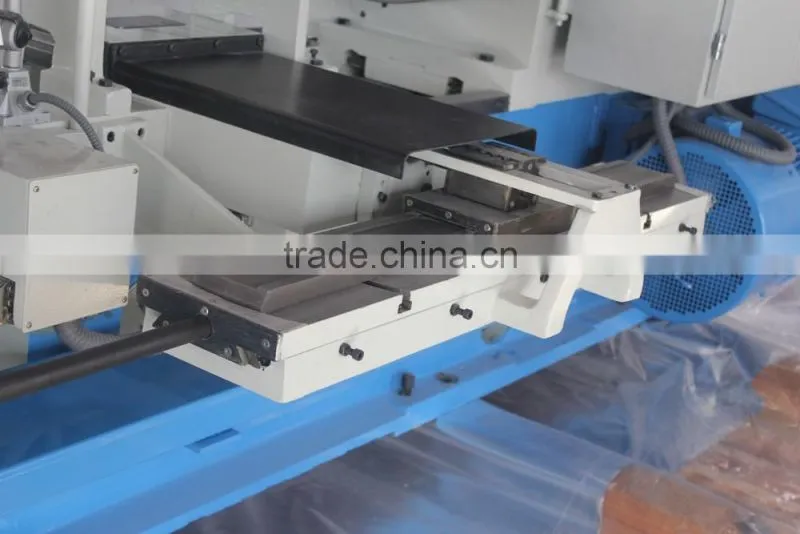

• Taper turning attachment

• Oil gun

• Coolant system

• Working light

• Electric tailstock

• General tools

• Foundation bolts

• Operation manual(English edition)

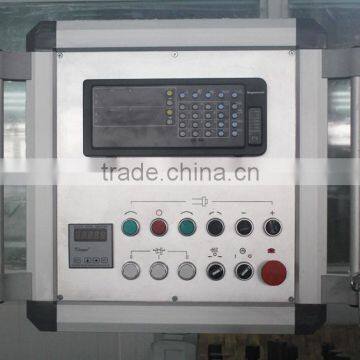

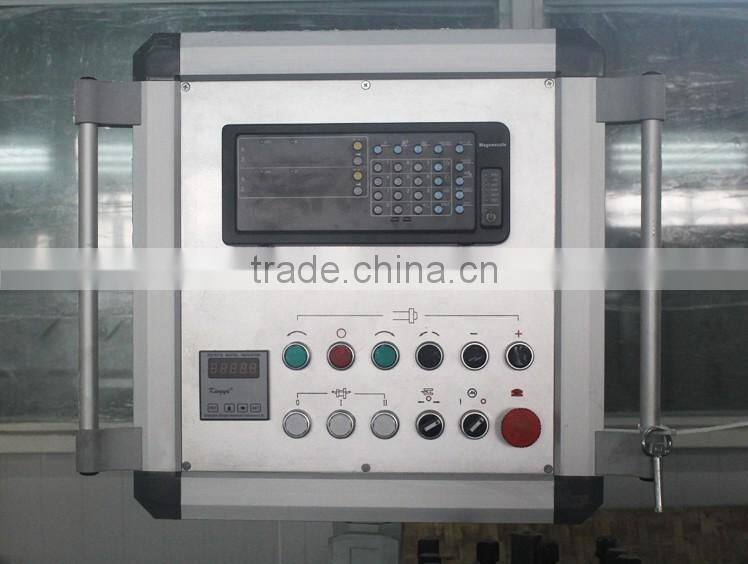

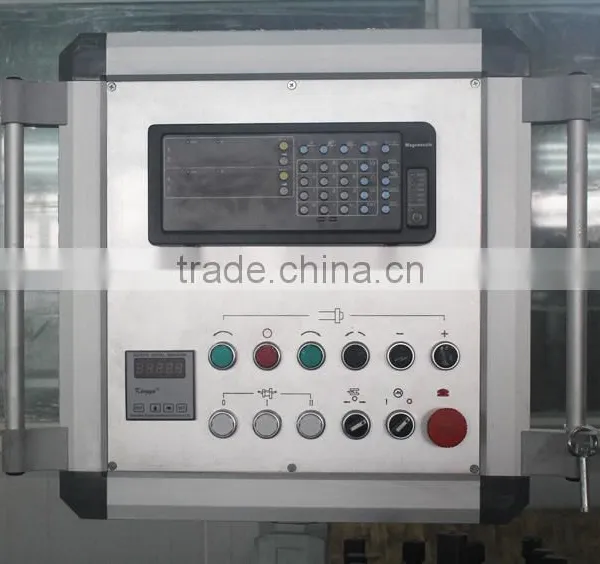

                       • Taper Turning Device                                                        • Operation Panel

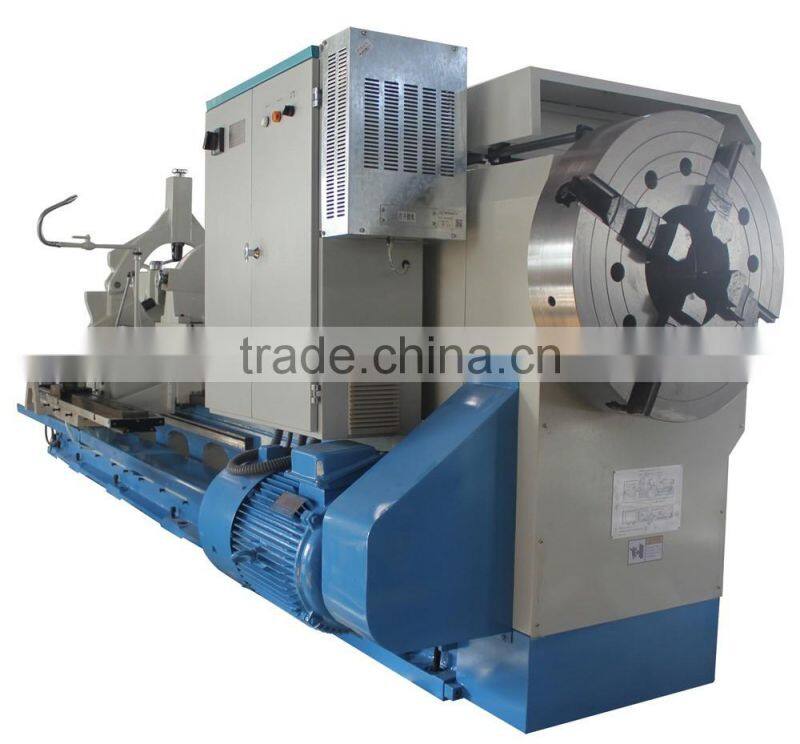

                     • Electric Cabinet & Inverter Motor                                   • Rear Support for Long Bar
