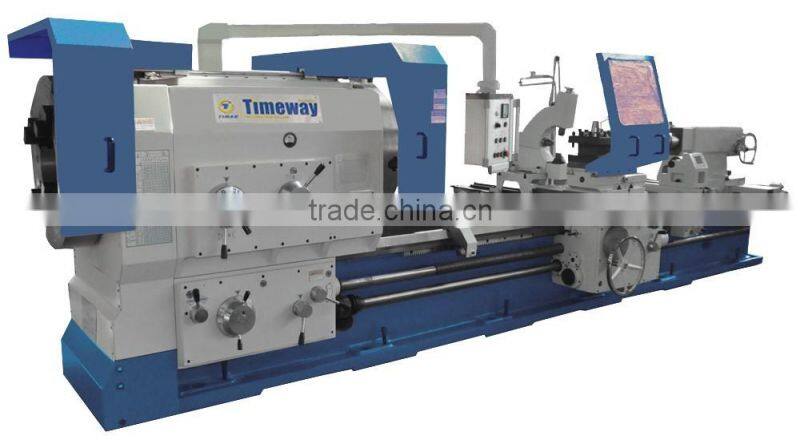

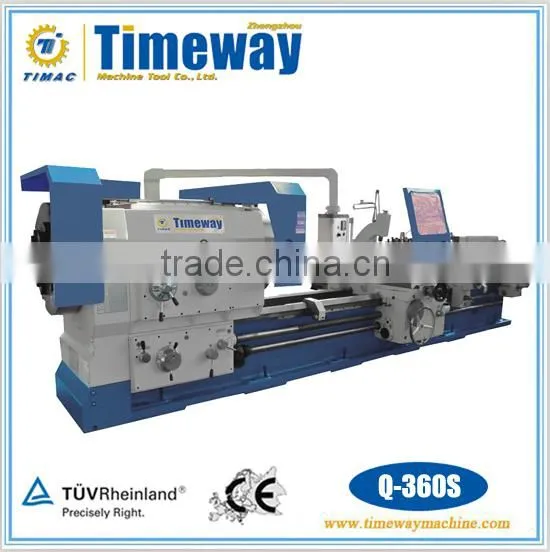

Q-360S Pipe Thread Lathe Machine
USD $50,000 - $150,000
/ Set
1 Set(Min.Order)
- 200 Set / Sets per Month
- China port.
- T/T Credit Card
You May Like
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Manual | Max. Swing Diameter: | 1000mm | Place of Origin: | Henan, China |
Brand Name: | TIMAC | Model Number: | Q-360S | Voltage: | 380v 50hz |
Power(W): | 22kw | Dimension(L*W*H): | As actual | Weight: | As actual |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Horizontal Pipe Threading Lathe Machine
Q-280S Q-360S Q-460S
Main Outlook
Product Description
- This lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage.

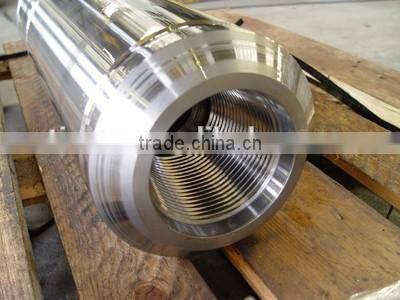

- It is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.
- The machine tool is equipped with a tapering unit which can work out a 1:4 taper.
- The machine tool is able to cut both metric and with threads without changing the translating gear.
- Dripping worm in the apron can protect the mechanisms of the lathe automatically.
- The guide way is hardened and finely finished.
- The great power of the machine is competent at heavy load and power cutting.
- The floor center rest can be moved freely as required by the user.
- Center rest is provided with an adjustable clamp unit for long pipes, greatly reducing intensity of labor.

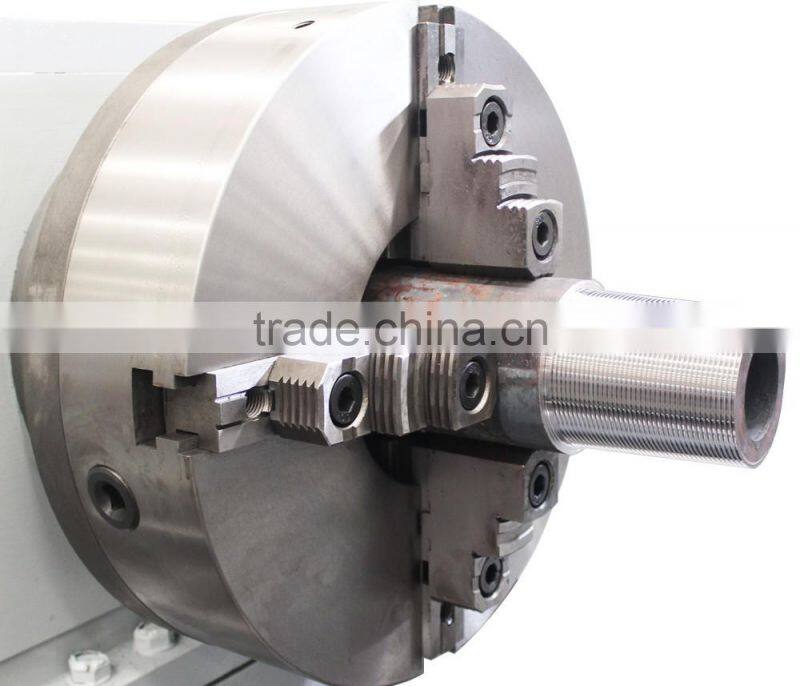

- Double 4-jaw chucks offer free clamp of both short and long pipes.
Technical Parameter:
Specification | Unit | Q-280S | Q-360S | Q-460S |
Diameter of spindle bore | mm | Φ280 | Φ360 | Φ460 |
Max. swing over bed | mm | Φ1000 | Φ1000 | Φ1250 |
Max. swing over tool post | mm | Φ700 | Φ640 | Φ890 |
Max. workpiece lengt between centers | mm | 1500/2000/3000/4000/5000/6000/7000/8000/9000 | ||
Max. turning length. | mm | 1300/1800/2800/3800/4800/5800/6800/7800/8800 | ||
Max. load capacity between two centers | kg | 4000 | 6000 | 6000 |
Width of bed | mm | 600 | 755 | 970 |
Spindle speed step | steps | 8 | 8 | 8 |
Spindle speed range | rpm | 5-315 | 6.3-315 | 6.3-315 |
Main motor power | kw | AC18.5 | AC22 | AC30 |
Number and range of Metric thread | mm | 44 kinds, 1-120 | ||
Number and range of Inch thread | T.P.I. | 37 kinds, 30-11/8 | ||
Number and range of Module thread | mm | 46kinds, 0.5-60 | ||
Number and range of Pitch thread | D.P. | 46kinds, 0.5-60 | ||
Tool post station | - | Vertical 4-station | ||
Tool section | mm | 32x32 | 45x45 | 45x45 |
Diameter of tailstock sleeve | mm | Φ120 | Φ160 | Φ160 |
Tailstock taper | - | Morse No.6 | Metric No.80 | Metric No.80 |
Tailstock quill travel | mm | 300 | 300 | 300 |
Rapid motor power | kw | 1.5 | 1.5 | 1.5 |
Coolant pump power | kw | 0.15 | 0.15 | 0.15 |
Standard Configuration:
- 4-jaw chuch(front & rear)
- Steady rest
- Follow rest

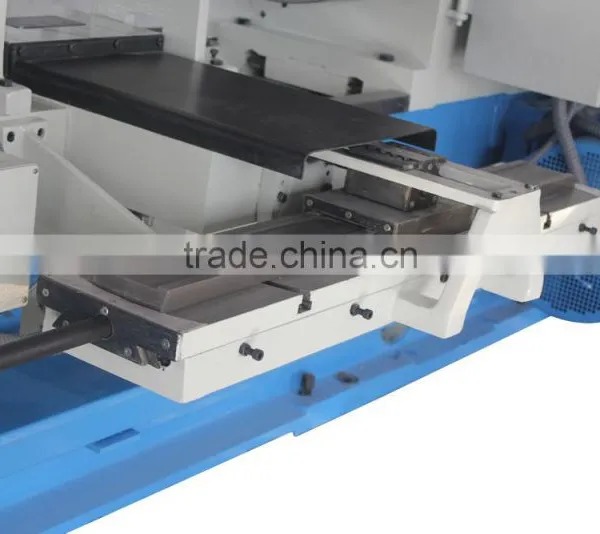

- Taper turning attachment
- Oil gun
- Coolant system
- Working light

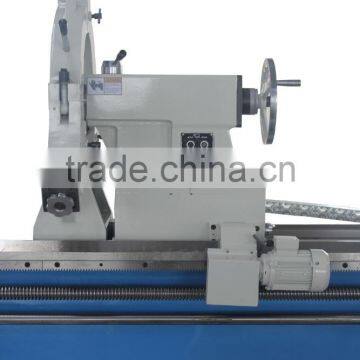

- Electric tailstock
- General tools
- Foundation bolts
- Operation manual(English edition)

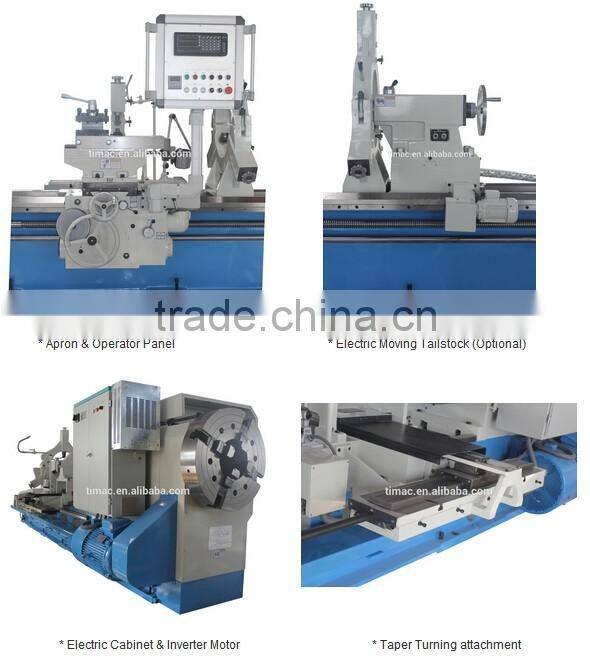

Detail Images

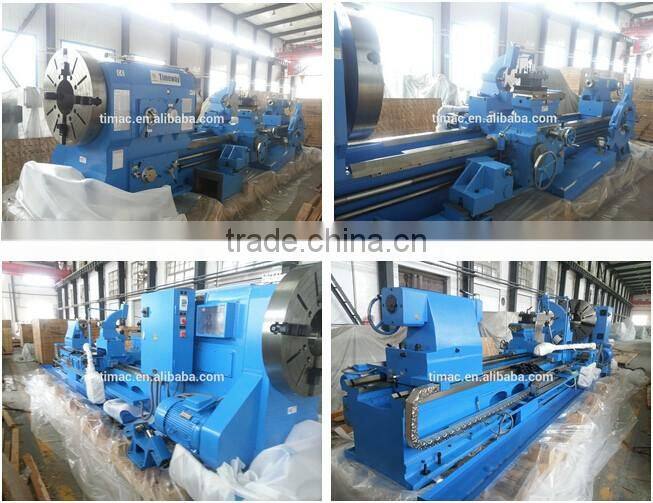

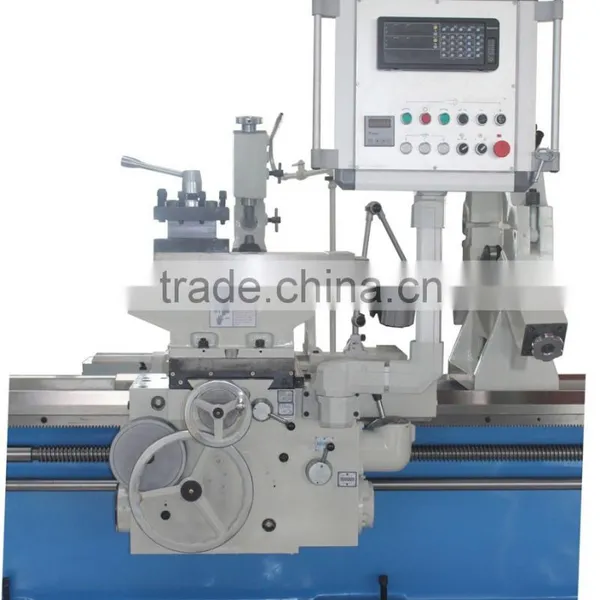

Q-360S Series Photos:

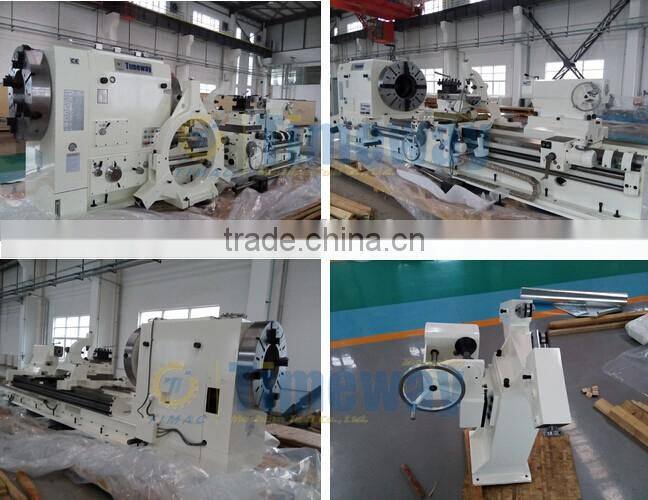

Q-460S Series Photos:
