Heavy Duty CNC Horizontal Pipe Threading Turning Machine
- 50 Set / Sets per Month
- China Port
- T/T Credit Card
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 1100mm | Brand Name: | TIMAC |
Model Number: | QK-350A | Voltage: | As request | Power(W): | 18.5kw |
Dimension(L*W*H): | 6300x2520x2120mm | Weight: | 11000kg | Certification: | CE; ISO9001 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

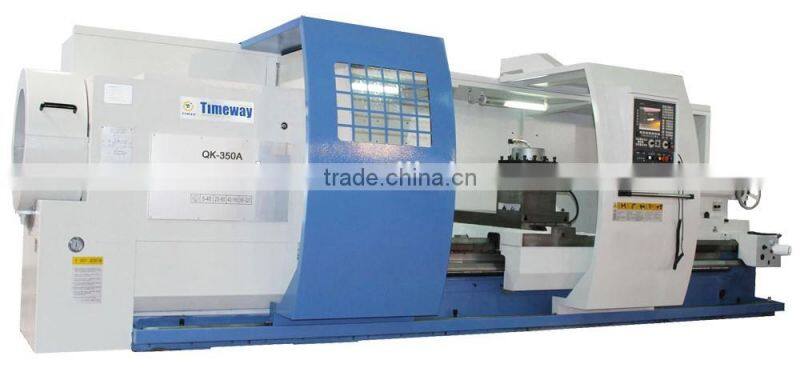

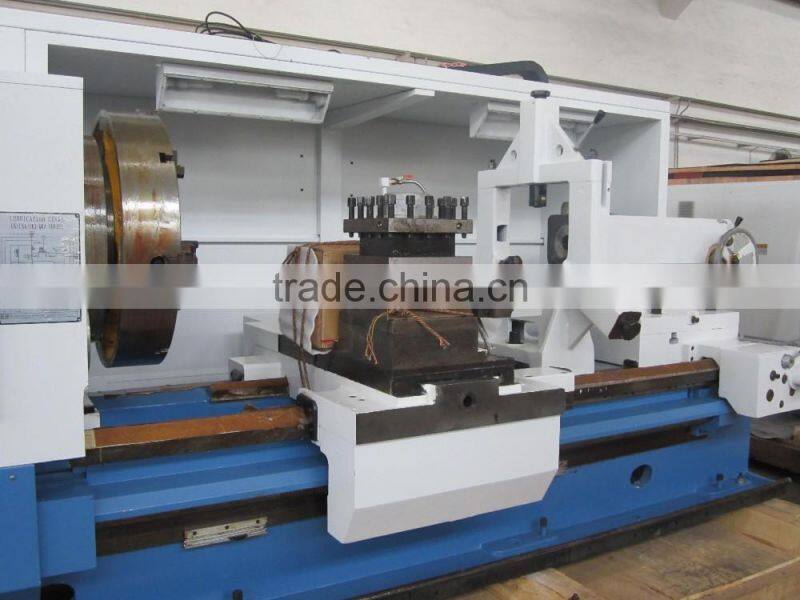

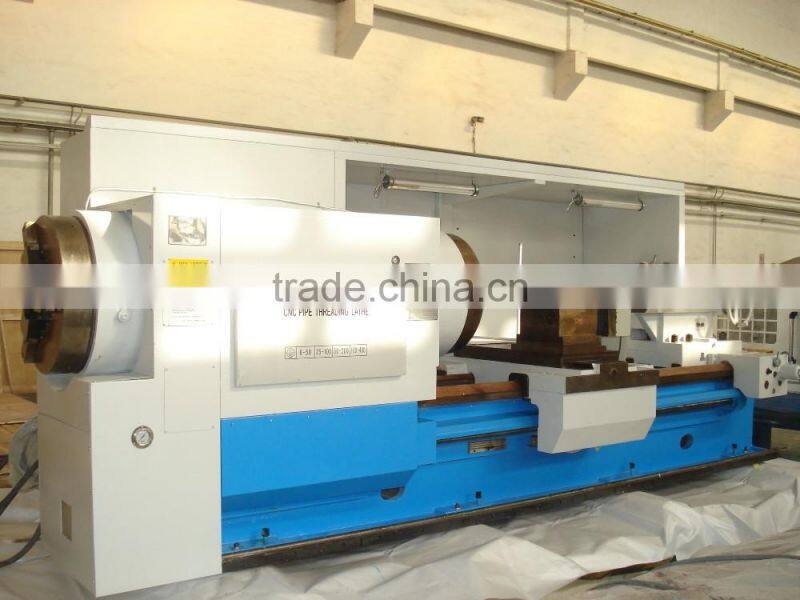

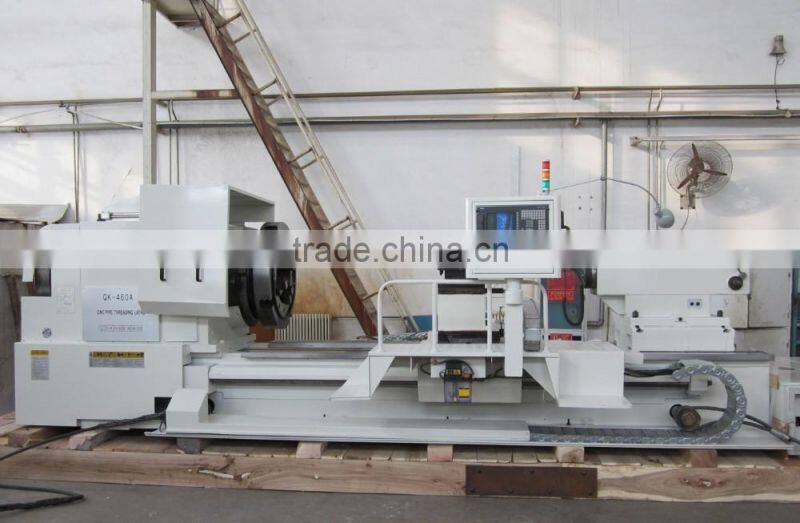

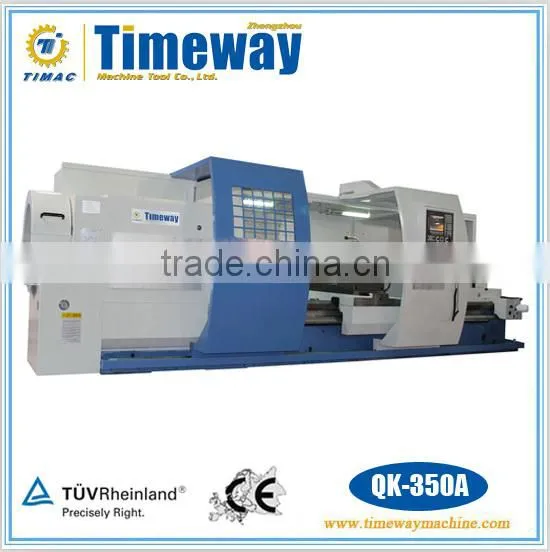

Heavy Duty CNC Horizontal Pipe Threading Turning Machine
QK-120A QK-190A QK-260A QK-350A QK-460A
Application:

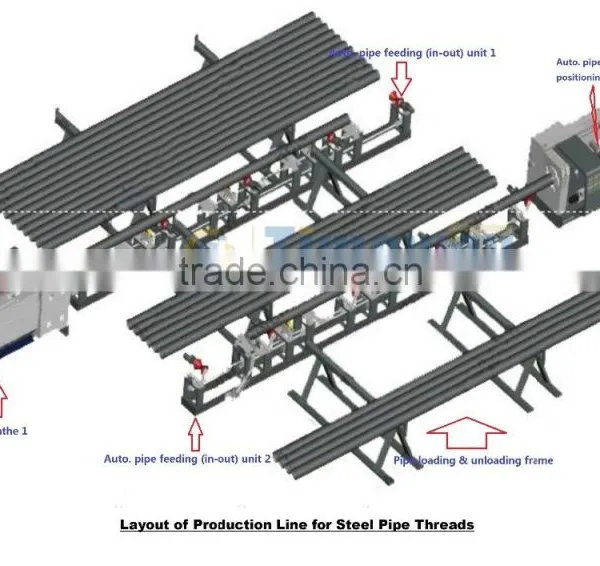

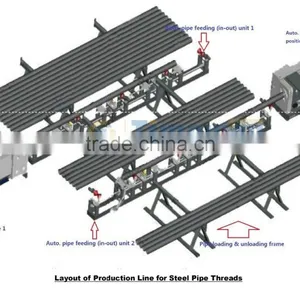

We, Timeway Machine sold 6", 8", 10", 14", 18" hollow spindle CNC oil country lathes designed to perform all sizes of the threads used in the oil & gas industry; center height 385mm, 500mm, 550mm, 650mm; distance between centres from 750mm up to 5000mm; 3-jaw self-centering chuck or 4-jaw independent chuck on both sides of gear box. All machines are in conformity to the CE norms.
Features:

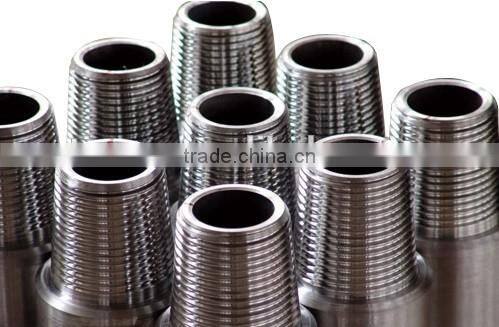

1. The lathe was developed mainly for the turning of oil-field pipe threads.
2. It is suitable for the turning of arious kinds of pipe threads, and is also can be used as universal CNC Lathe.
3. The machine is simple CNC lathe which use half closed-loop control system, which belong to popular CNC pipe thread lathe.
4. It can cut many complex parts as shaft, sleeve and dish, internal and external cylindrical surfaces, concal surfaces, holows, end plane, grrove, chamfer, screw thread, and so on.
5. It is suitable for repeated and medium batch manufacturing in chief.
Technical Parameter:
Specification | Unit | QK-120A | QK-190A | QK-260A | QK-350A | QK-460A | |
Capacity | Centre height | 385 | 500 | 550 | 650 | ||
Swing over bed | mm | 770 | 1000 | 1100 | 1250 | ||
Swing over carriage | mm | 480 | 630 | 730 | 900 | ||
External diameter of pipes (manual chuck) | mm | 120 | 190 | 70-260 | 114-340 | 300-460 | |
Maximum length of workpiece | mm | 750/1000/1500/2000/3000 | 1500/3000/5000 | 3000 | |||
Maximum turning length | mm | 600/800/1350/1850/2850 | 1300/2800/4800 | 2800 | |||
Span of guideway | mm | 550 | 755 | 1100 | |||

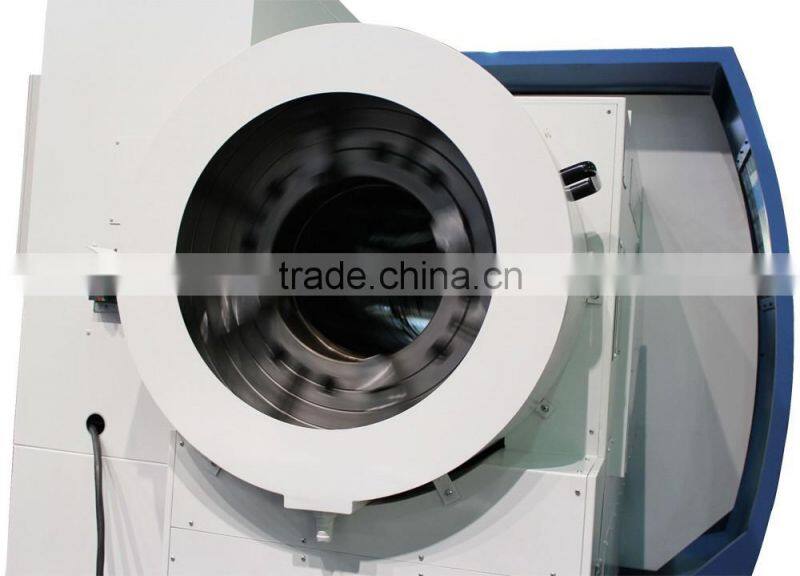

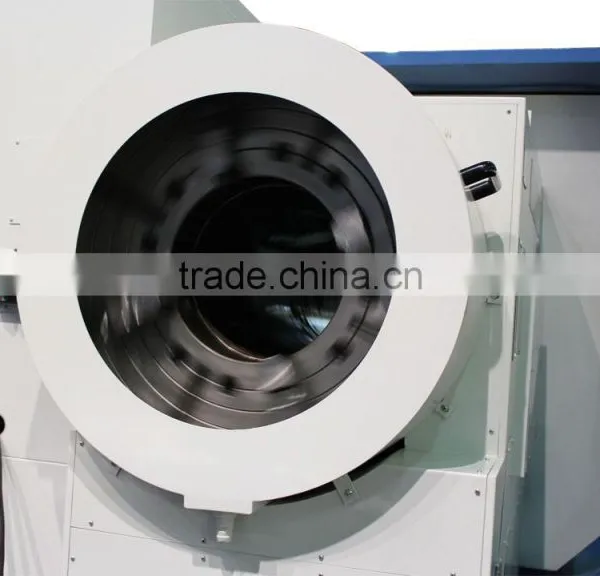

Spindle | Spndle bore | mm | 130 | 200 | 275 | 355 | 465 |
Spindle nose | C11 | A2-15 | A2-28 | ||||
Headstock | Step of Spindle speed(Three-phase asyn-chronous motor) | manual 3 steps,auto 6 steps 16 speeds | manual 2 steps,auto 4 steps 8 speeds | --- | --- | --- | |
Step of Spindle speed(Variable frequency motor) | --- | --- | auto 4 gear steps,stepless speed change in the step. | ||||
Range of spindle speed(Three-phase asyn-chronous motor) | 25-800 | 90-450 | --- | --- | --- | ||
Range of spindle speed(Variable frequency motor) | --- | --- | 6-400 | 5-320 | 5-200 | ||
Main motor power(Three-phase asyn-chronous motor) | kw | 11 | --- | --- | --- | ||
Main motor power (Variable frequency motor) | 18.5 | 28/38 | |||||

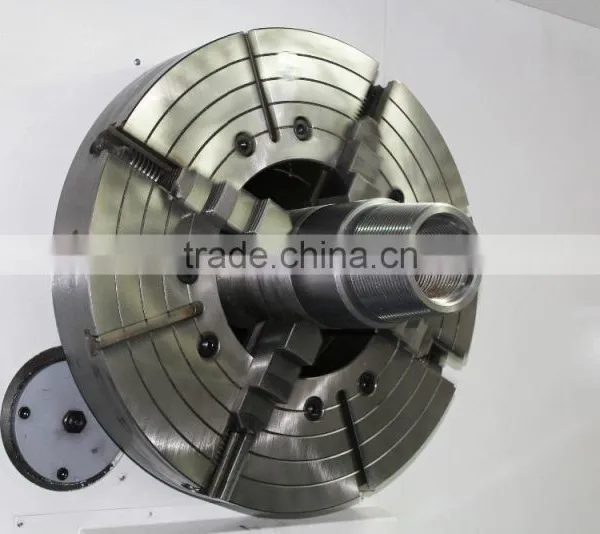

Chuck type(manual chuck) | manual 3 jaw 380 | manual 3 jaw 500 | manual 4 jaw 630 | manual 4 jaw 800 | manual 4 jaw 630 | ||
Feed | Min.feed increment of X-/Z-axis | mm | 0.001/0.001 | ||||
Rapid speeds of X-/Z-axis | mm/min | 3000/6000 | |||||
Max.travel of x-axis | mm | 390 | 630 | 800 | |||

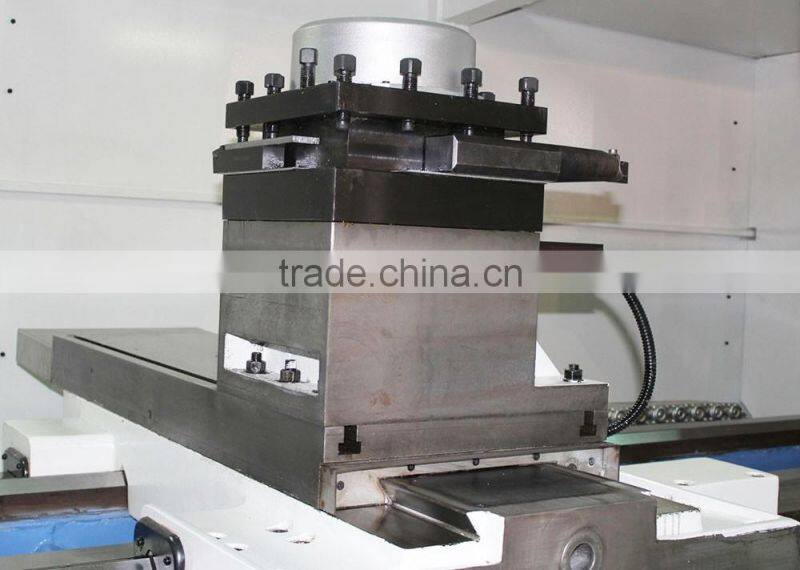

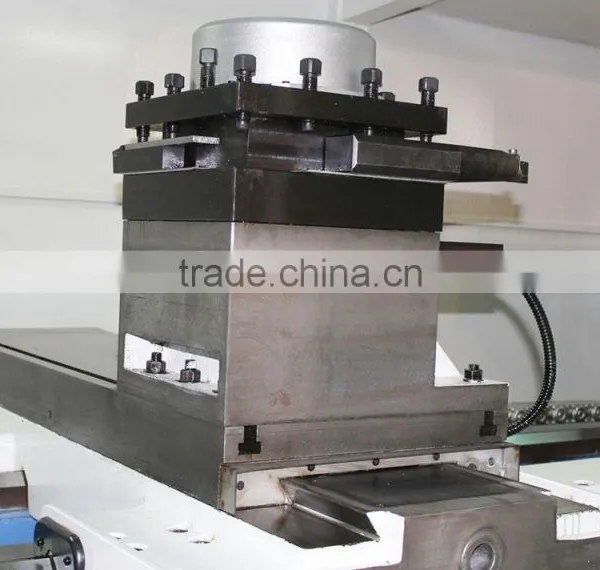

Carriage | Tool-post working position | Vertical 4-position240 | Vertical 4-position300 | ||||
Indexing time | s | 2.5 | 4 | ||||
Indexing repeatility | mm | 0.008 | 0.01 | ||||
Section of tool shank | mm | 32 | 40 | ||||
Tailstock | Diameter of tailstock quill | mm | 100 | 160 | |||
Travel of tailstock quill | mm | 250 | 300 | ||||
Taper hole of tailstock quill | Morse 5 | Morse 6 | |||||
CNC system | Alternatives | FANUC 0i TD; SIEMENS 840 DSL; FAGOR 8055TC |
Standard Configurations:
- FANUC CNCsystem

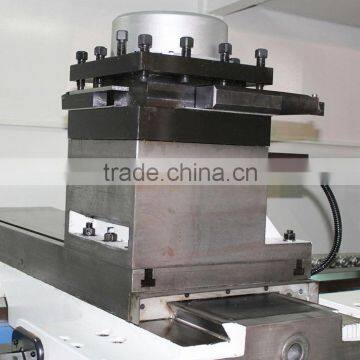

- Vertical 4-station electric tool-post
- Electric Tailstock

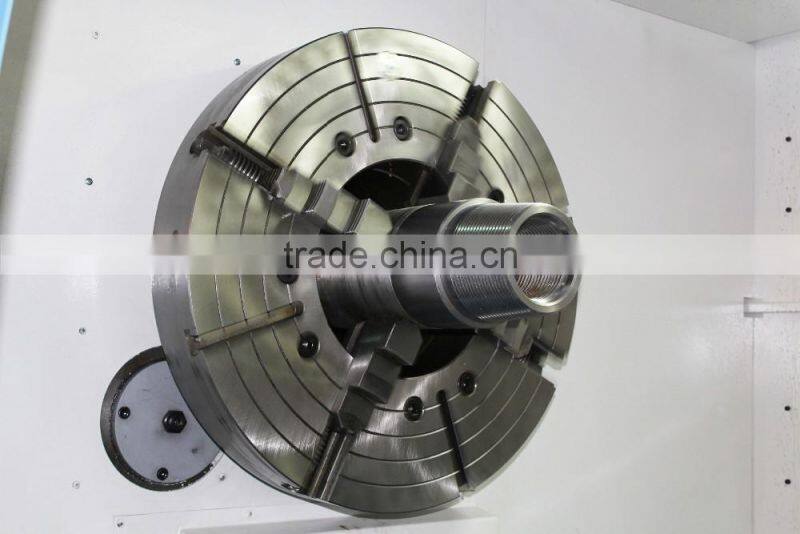

- Manual 4-jaw chuck
- Central lubrication system
- Working light
- Coolant system
- Semi-closed cover
- Electric cabiner with air Conditioner
- Tool box and tools
- Programming manual
- Operator manual
Optional Configurations:
- SIEMENS/FAGOR CNC system
- Hydraulic chuck
- Hydraulic or manual tailstock
- Six and eight stations tool-post
- Hydraulic or pneumatic 3-jaw chuck
- Live center
- Special accessories
