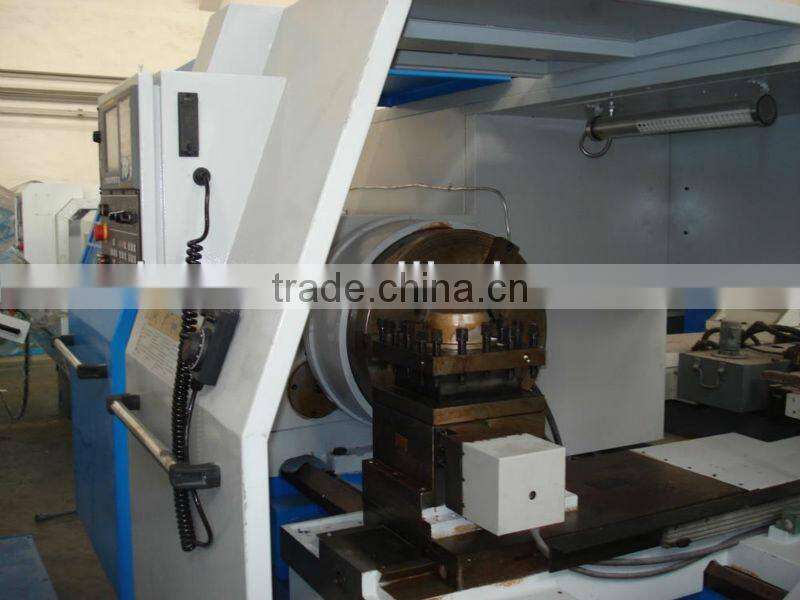

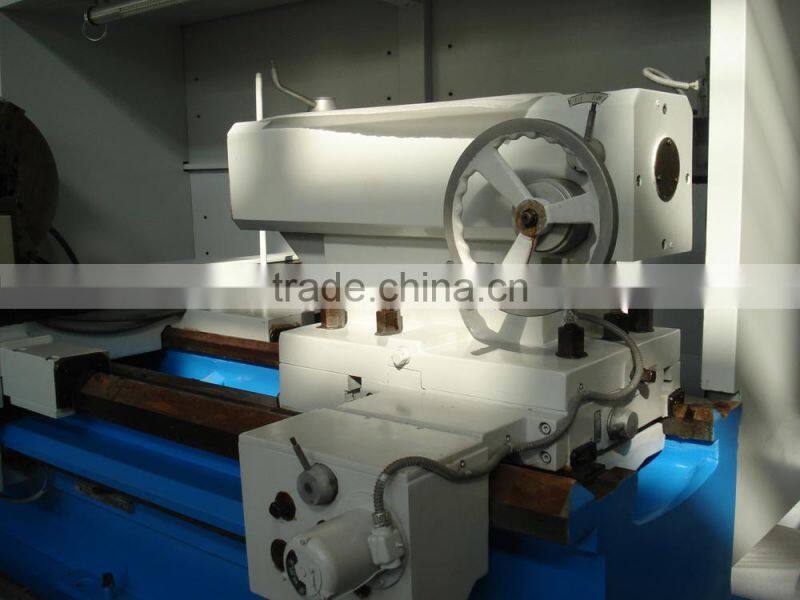

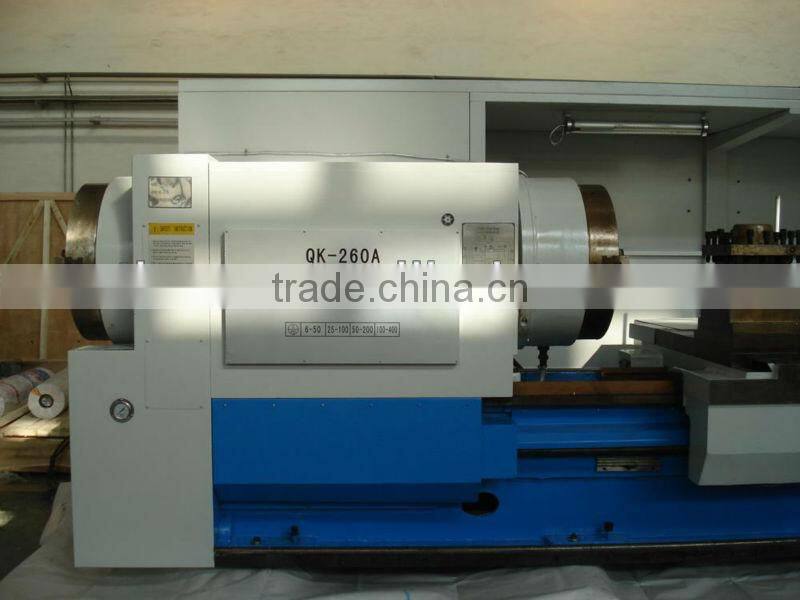

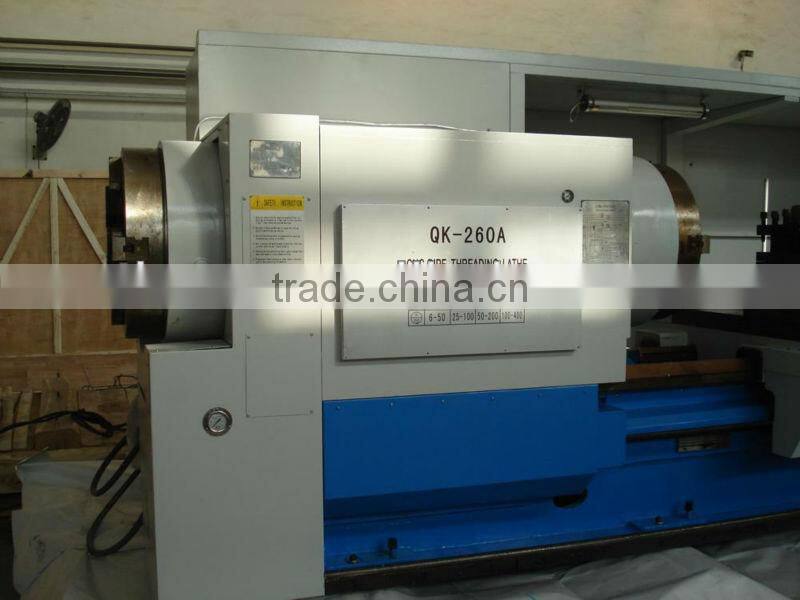

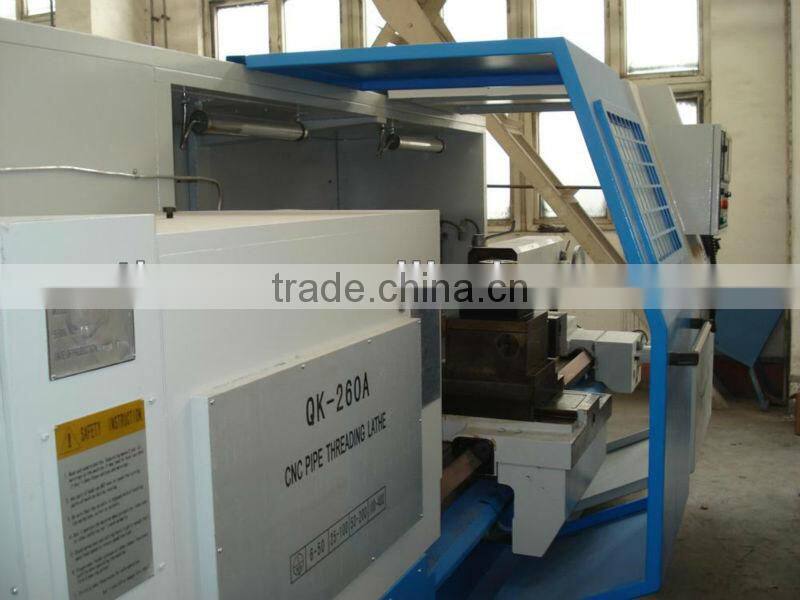

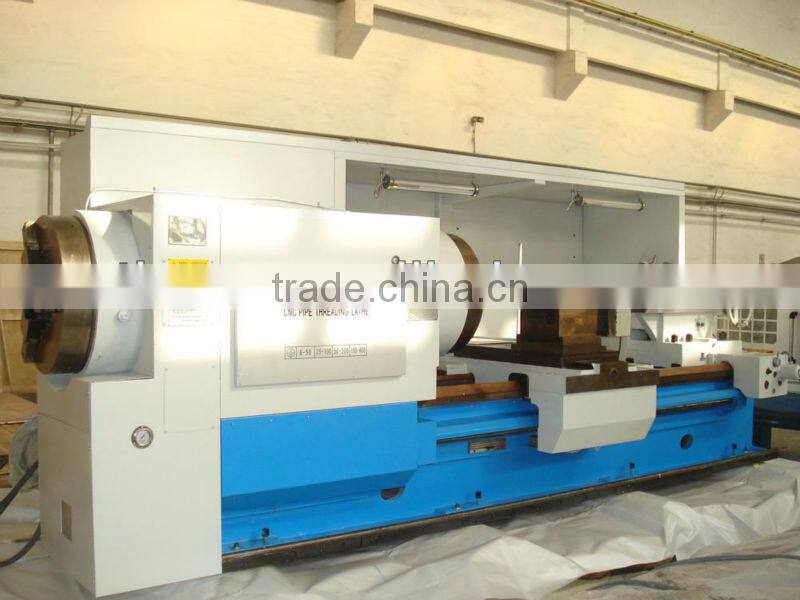

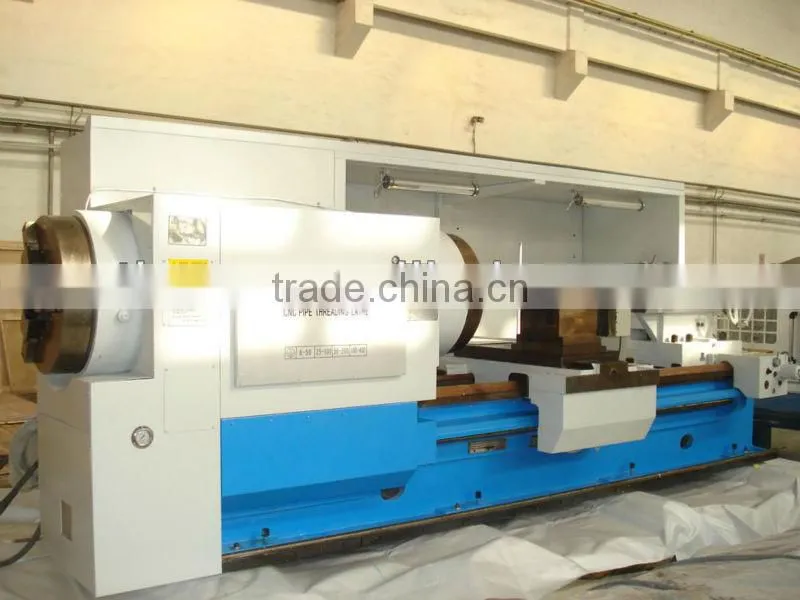

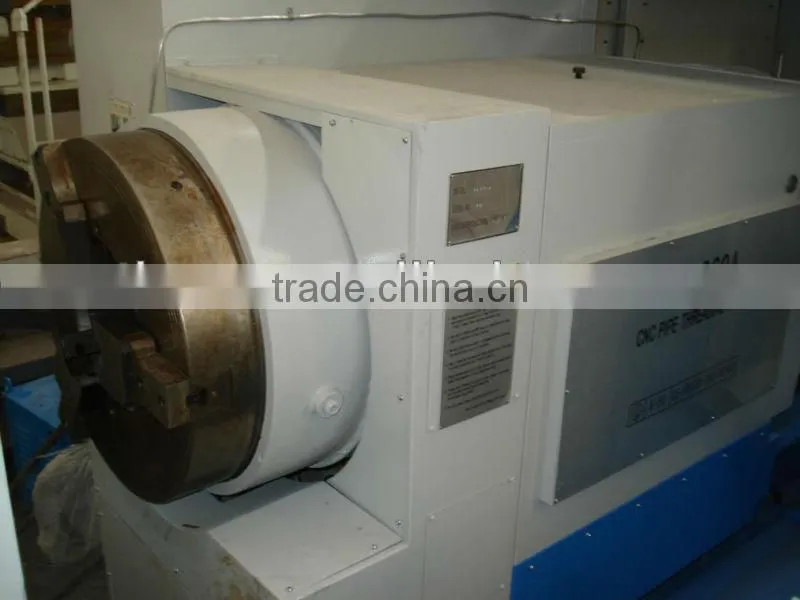

Help Center10" Large Spindle Bore CNC Pipe Theading Lathe Machine QK-260A / CNC Oil Field Lathe
Related Products
-
11" CNC Oil Country Lathe , Oil Field Lathe, Pipe Thread Lathe (QK-280S)US$ 1,000 - 200,000MOQ: 1 Set -
CNC Oil Country Lathe QK-460AUS$ 89,000 - 115,000MOQ: 1 Set
-
14" Hollow Spindle CNC Pipe Threading Lathe QK-350AUS$ 100,000 - 130,000MOQ: 1 Set
-
465mm CNC Big Bore Oilfield Lathe QK-460AUS$ 110,000 - 180,000MOQ: 1 Set
-
Large Bore 225mm Pipe Thread Lathe, Oil Pipe Threading Lathe(Oil Country Lathe) Q-210US$ 35,850 - 55,000MOQ: 1 Set
Specifications
1. CNC oil field pipe thread turning lathe2. CNC oil country lathe
3. 10" large spindle bore
4. Double hollow chucks
CNC PIPE THREAD LATHE - CNC OIL COUNTRY LATHE
(275mm Large Spindle Bore x 1500/3000/5000mm Workpiece Length)
Features:
1. The lathe was developed mainly for the turning of oil-field pipe threads.
2. It is suitable for the turning of arious kinds of pipe threads, and is also can be used as universal CNC Lathe.
3. The machine is simple CNC lathe which use half closed-loop control system, which belong to popular CNC pipe thread lathe.
4. It can cut many complex parts as shaft, sleeve and dish, internal and external cylindrical surfaces, concal surfaces, holows, end plane, grrove, chamfer, screw thread, and so on.
5. It is suitable for repeated and medium batch manufacturing in chief.
Specification | Unit | QK-260A | QK-350A |
Max. diameter of pipe | mm | 260 | 340 |
Diameter of spindle bore | mm | 285 | 355 |
Max. swing over bed | mm | 1000 | 1100 |
Max. swing over toolpost | mm | 630 | 730 |
Distance between two centers | mm | 1500/3000/5000 | 1500/3000/5000 |
Max. turning length | mm | 1300/2800/4800 | 1300/2800/4800 |
Width of guideway | mm | 755 | 755 |
Max.load capacity between two cneters( add a steady rest increase 0.5T) | T | 5 | 5 |
Spindle front department type |
| 1:4; φ412.775 | 1:4; φ412.775 |
Spindle speed |
| Auto-4 steps, stepless | Auto-4 steps, stepless |
Spindle speed range | r/min | 6-400 | 5-320 |
Toolpost size | mm | 300x300 | 300x300 |
Tools section size | mm | 40x40 | 40x40 |
Max. cross travel of tools | mm | 540 | 540 |
Max. cutting force of tools | N | 29400 | 29400 |
Max. longitudinal feeding foce of tools | N | 11760 | 11760 |
Max. cross feeding force of tools | N | 8157 | 8157 |
Diameter of tailstock quill | mm | 160 | 160 |
Travel of tailstock | mm | 300 | 300 |
Tailstock taper |
| Morse 6 | Morse 6 |
Rapid move of tailstock | m/min | 2.1 | 2.1 |
Auto-lubrication device |
| AMO-III-150S | AMO-III-150S |
Hydraulic cycloid pump model |
| BRB43724-5 | BRB43724-5 |
Hydraulic cycloid pump flow | L/min | 6.3 | 6.3 |
Gear pump motor model |
| AO2-8014 | AO2-8014 |
Gear pump model |
| CB—B6 | CB—B6 |
Gear pump rated pressure | Mpa | 2.54(25kgf/cm2) | 2.54(25kgf/cm2) |
Oil cylinder work pressure | Mpa | 0.98-1.176 (10-12kgf/cm2) | 0.98-1.176 (10-12kgf/cm2) |
Coolant pump model |
| JCB-45 | JCB-45 |
Coolant pump motor power | W | 150 | 150 |
Main motor (inverter) model |
| UABP180L-4-33.3-18.5-1MB3 | UABP180L-4-33.3-18.5-1MB3 |
Main motor (inverter) power | KW | 18.5 | 18.5 |
Main motor (inverter) speed | r/min | 960 | 960 |
X axis servo motor torque | N.m | FANUC: 22 SIEMENS: 27 | FANUC: 22 SIEMENS: 27 |
X axis servo motor speed | r/min | FANUC: 2000 SIEMENS: 3000 | FANUC: 2000 SIEMENS: 3000 |
Z axis servo motor torque | N.m | FANUC: 22/40 SIEMENS: 36 | FANUC: 22/40 SIEMENS: 36 |
Z axis servo motor speed | r/min | FANUC: 1500 SIEMENS: 3000 | FANUC: 1500 SIEMENS: 3000 |
Toolpost motor power | W | 180 | 180 |
Toolpost motor speed | r/min | 1400 | 1400 |
Basic Accessories:
FANUC 0i TD controller, FANUC feeding motors, RS232 interface(I/O port), Movable electronic handwheel(MPG), 2pcs four jaw chucks, Vertical type 4 station electric toolpost, Electric tailstock, Work light, Tricolor alarming light, Cooling system, Auto. lubricating system, Operation manuals(English edition).
ISO, CE, TUV, SGS certified company.
