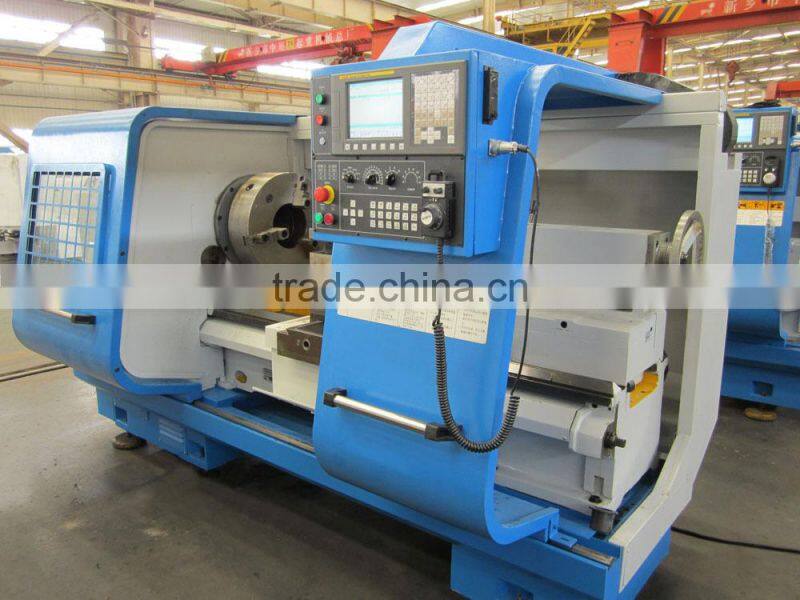

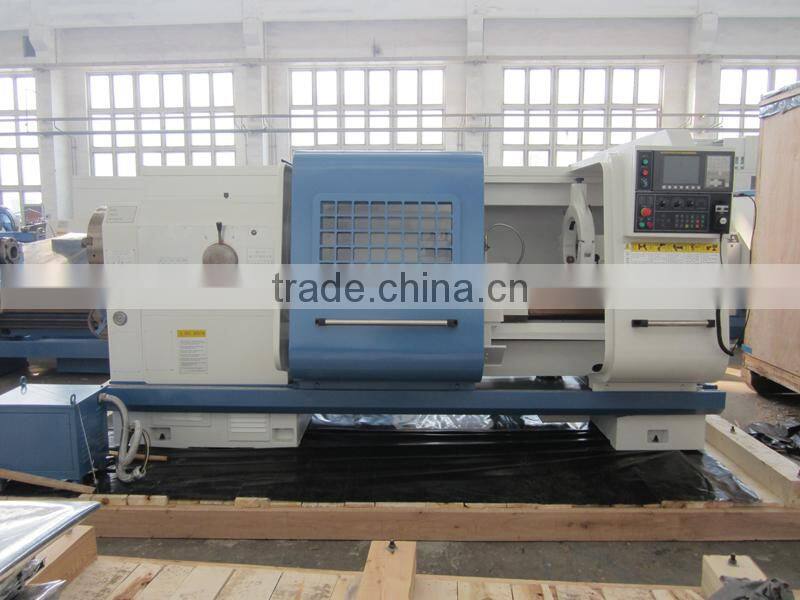

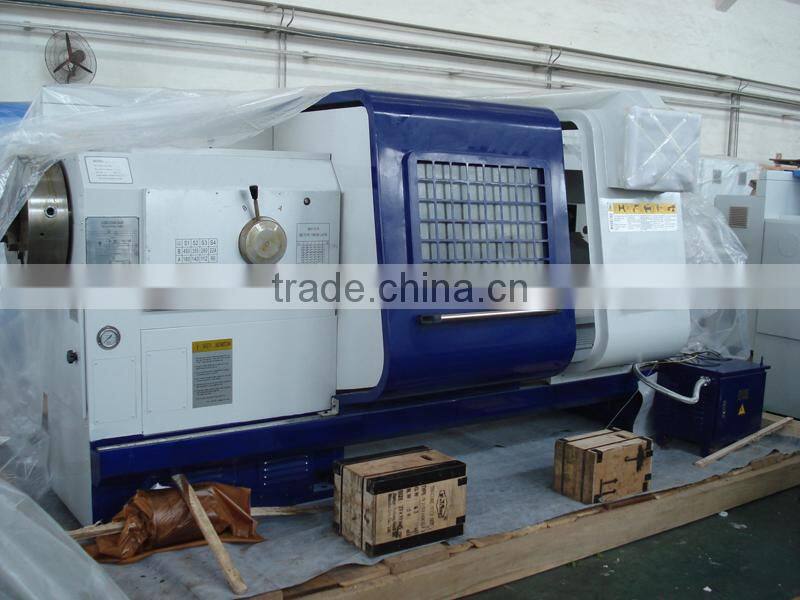

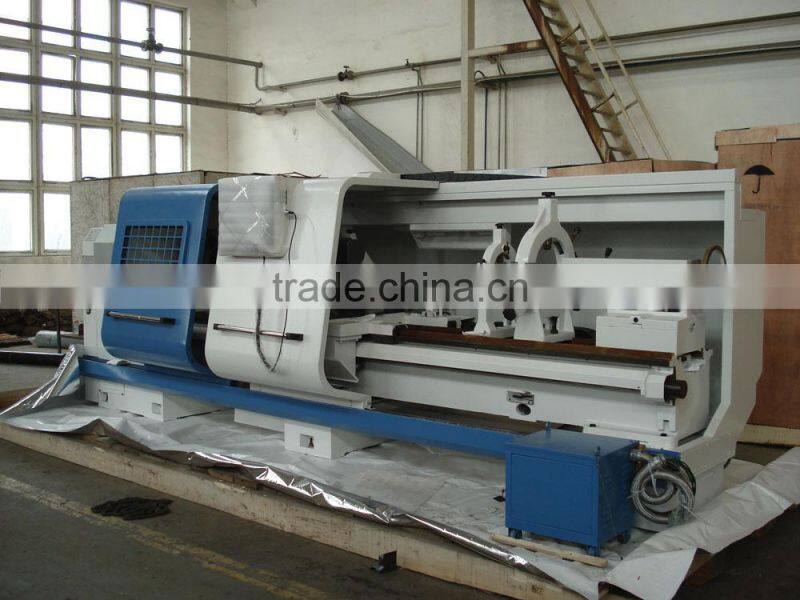

8" CNC Oil Country Lathe QK-190A
- 50 Set / Sets per Month
- Tianjin Qingdao Shanghai Port
- T/T Credit Card
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 770mm | Place of Origin: | Henan, China |
Brand Name: | TIMAC | Model Number: | QK-190A | Voltage: | As request |
Power(W): | 11kw | Dimension(L*W*H): | 4.41*2.2*2.19M | Weight: | 6.8tons |
Certification: | CE; ISO9001 |
Product Description

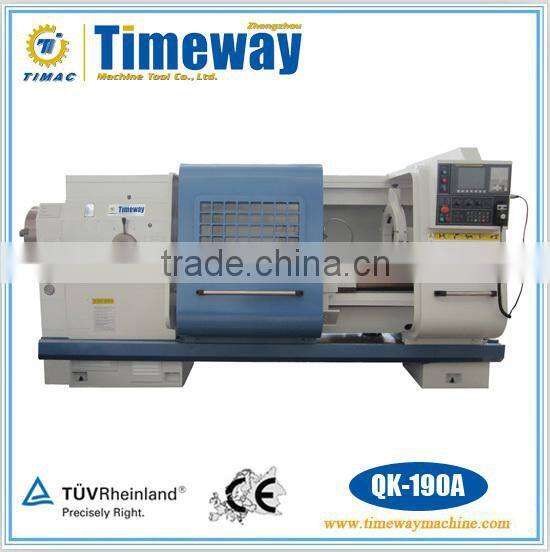

CNC Oil Country lathe (QK-190A)
Application:
We, Timeway Machine sold 6", 8", 10", 14", 18" hollow spindle CNC oil country lathes designed to perform all sizes of the threads used in the oil & gas industry; center height 385mm, 500mm, 550mm, 650mm; distance between centres from 750mm up to 5000mm; 3-jaw self-centering chuck or 4-jaw independent chuck on both sides of gear box. All machines are in conformity to the CE norms.
Parameter:
Specification | Unit | QK-120A | QK-190A | QK-260A | QK-350A | QK-460A | |
Capacity | Centre height | 385 | 500 | 550 | 650 | ||
Swing over bed | mm | 770 | 1000 | 1100 | 1250 | ||
Swing over carriage | mm | 480 | 630 | 730 | 900 | ||
External diameter of pipes (manual chuck) | mm | 120 | 190 | 70-260 | 114-340 | 300-460 | |
Maximum length of workpiece | mm | 750/1000/1500/2000/3000 | 1500/3000/5000 | 3000 | |||
Maximum turning length | mm | 600/800/1350/1850/2850 | 1300/2800/4800 | 2800 | |||
Width of guideway | mm | 550 | 755 | 1100 | |||
Spindle | Spndle bore | mm | 130 | 200 | 275 | 355 | 465 |
Spindle nose | C11 | A2-15 | A2-28 | ||||
Headstock | Step of Spindle speed(Three-phase asyn-chronous motor) | manual 3 steps,auto 6 steps 16 speeds | manual 2 steps,auto 4 steps 8 speeds | --- | --- | --- | |
Step of Spindle speed(Variable frequency motor) | --- | --- | auto 4 gear steps,stepless speed change in the step. | ||||
Range of spindle speed(Three-phase asyn-chronous motor) | 25-800 | 90-450 | --- | --- | --- | ||
Range of spindle speed(Variable frequency motor) | --- | --- | 6-400 | 5-320 | 5-200 | ||
Main motor power(Three-phase asyn-chronous motor) | kw | 11 | --- | --- | --- | ||
Main motor power (Variable frequency motor) | 18.5 | 28/38 | |||||
Chuck type(manual chuck) | manual 3 jaw 380 | manual 3 jaw 500 | manual 4 jaw 630 | manual 4 jaw 800 | manual 4 jaw 630 | ||
Feed | Min.feed increment of X-/Z-axis | mm | 0.001/0.001 | ||||
Rapid speeds of X-/Z-axis | mm/min | 3000/6000 | |||||
Max.travel of x-axis | mm | 390 | 630 | 800 | |||
Carriage | Tool-post working position | Vertical 4-position240 | Vertical 4-position300 | ||||
Indexing time | s | 2.5 | 4 | ||||
Indexing repeatility | mm | 0.008 | 0.01 | ||||
Section of tool shank | mm | 32 | 40 | ||||
Tailstock | Diameter of tailstock quill | mm | 100 | 160 | |||
Travel of tailstock quill | mm | 250 | 300 | ||||
Taper hole of tailstock quill | Morse 5 | Morse 6 |
*** Standard configuration:
1. CNC Controller: FANUC 0i TD or Siemens SINUMERIK 828D,
2. X/Z-axis feeding driver servo motor: FANUC or SIMENS
3. Spindle speed step: Manual 2 steps and auto. hydraulic 4 steps
4. Bed: integral box structure, adopts high performance cast iron (HT300) processed by second aging;
Guideway surface with medium frequency quencying and precision ground by imported guideway grinder.
5. Φ 500mm 3- jaw self-centering chuck (front & rear): Zhonghuan ()
6. 4-station electric tool post: Yasun ()
7. X/Y-axis ball screw pair: JCSJM ()
8. Spindle bearing: HRB ()
9. Manual moving tailstock
10. Auto. lubrication: ISHAN ()
11. Dynamic precision test and offset: RENISHAW laser detector, UK
13. Voltage: 380V, 3-phase, 50HZ (or as clients' need)
***Optional configuration & extra costs:
1. Fagor 8055i CNC system
2. Pneumatic 3-Jaw chuck
3. Hydraulic tailstock (for sleeve move)
4. 6 or 8 station electric toolpost

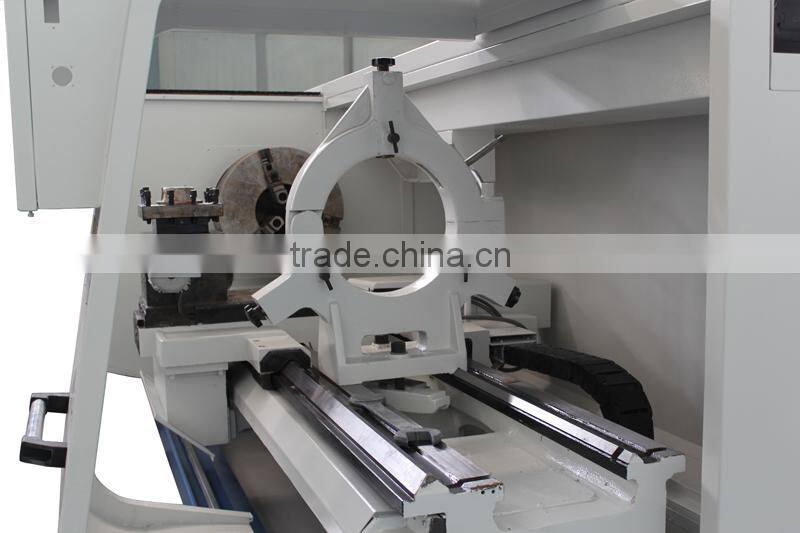

5. Steady rest (50-425mm)
6. Follow rest (50-220mm):
7. Out board support bracket (50mm-425mm) for long pipe
8. Auto bar feeder
* Automic bar feeder production line
If you have any queries please give us a
call or send us a message.
We will be happy to assist you!
