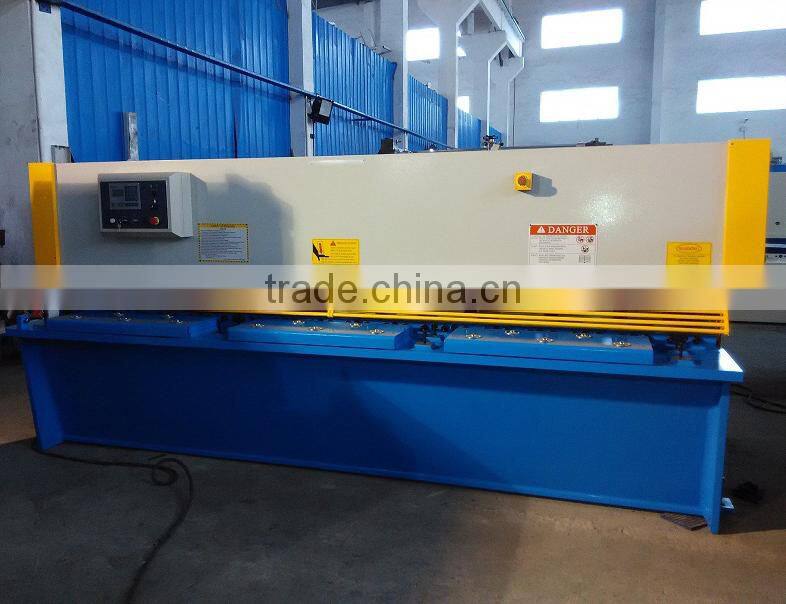

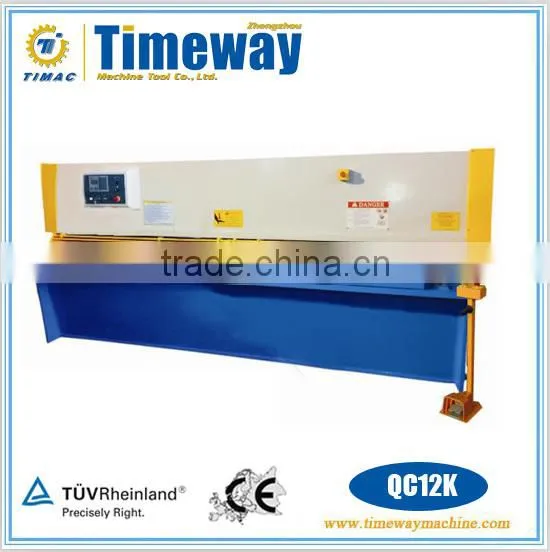

QC12K Series Hydraulic CNC Shearing Machine
CNC Swing Bean Shear
Features:
1.NC CNC System and encoder form closed-loop controlling system. Both the shearing travel and shearing
times can be controlled.It can guarantee the Shearing accuracy of long workpiece precisely. Meanwhile, the
CNC system have the function of automatic testing, compensation and other additional Function.
2.The shearing times can be shown by the Digital Readout device. The travel of upper toolpost can be adjusted
steplessly. The cutting edge’s gap of up and down blade can be adjusted The gap’s adjustment of the upper
and bottom’s cutting edge is guided by the indicator.
3.The front feeding adopts ball screw, ball guideway, pneumatic clamping device. The positioning accuracy of
feeding is ±0.01mm.
4.It adopts protective fence electrical cabinet interlocking human safety protector.
Parameter:
Model | Unit | QC12K-6×2500×2500 | QC12K-6×3200×2500 | QC12K-6×3200×3000 | |
Main | Shear Size | mm | 6×2500 | 6×3200 | 6×3200 |
Shear Angle | deg | 1.5º | 1.5º | 1.5º | |
Strokes | min-1 | 18 | 14 | 14 | |
Main Motor Power | KW | 7.5 | 7.5 | 7.5 | |
Front | Max. Strokes |
| 2500 | 2500 | 3000 |
Positioning Precision | mm | ±0.10/300 | ±0.10/300 | ±0.10/300 | |
Qty. of Gripper |
| 5 | 7 | 7 | |
Pressure of Air-supply | Mpa | 0.6 | 0.6 | 0.6 | |
Overall Dimension | mm | 4900×3290×1730 | 5260×4005×1730 | 5650×4000×1730 | |
Weight | kg | 9155 | 10350 | 11500 | |
