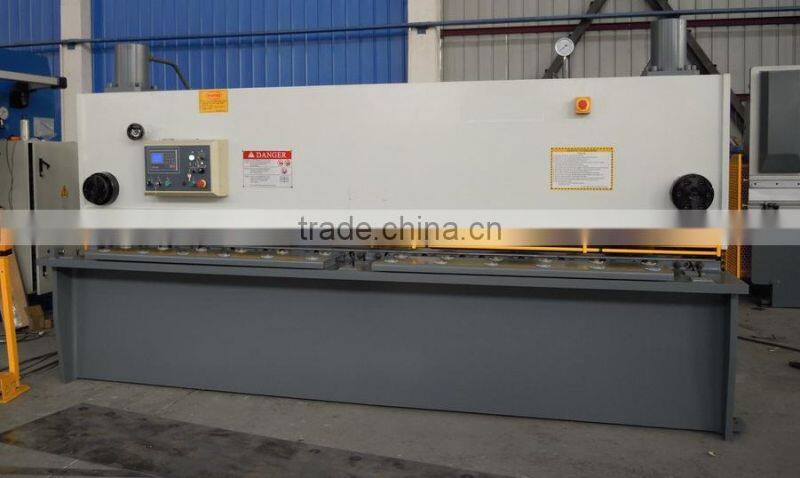

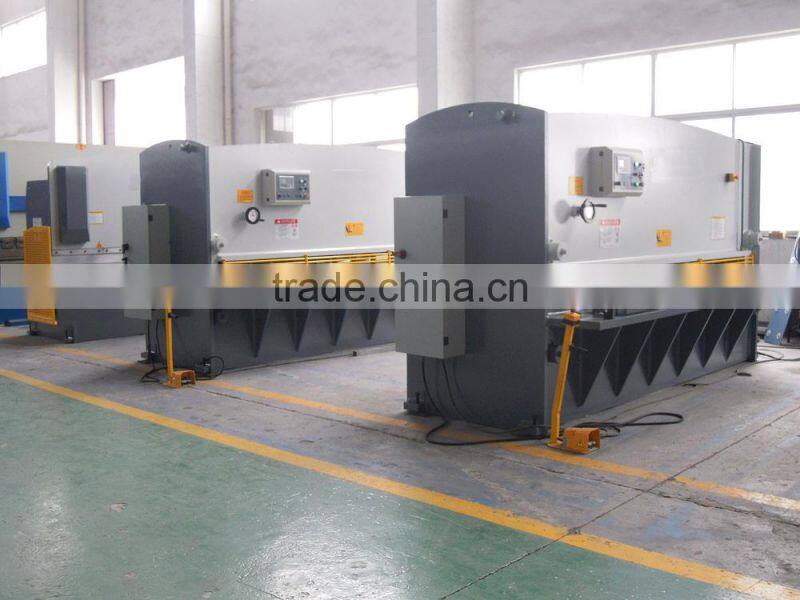

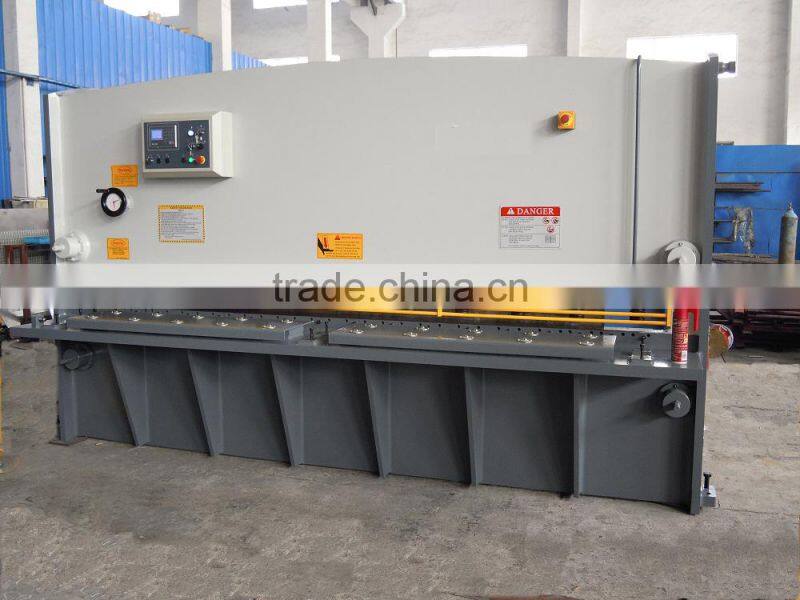

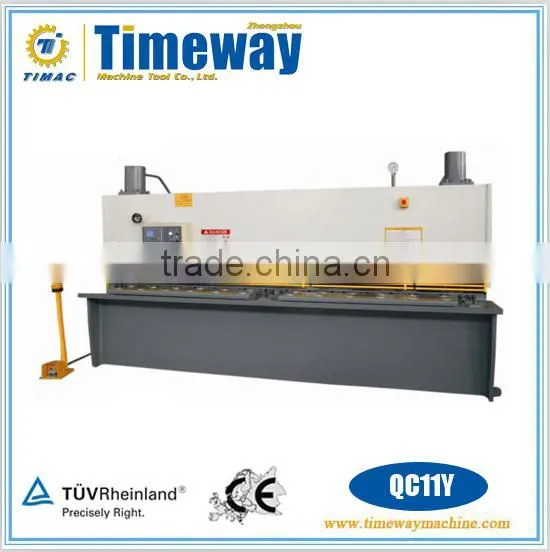

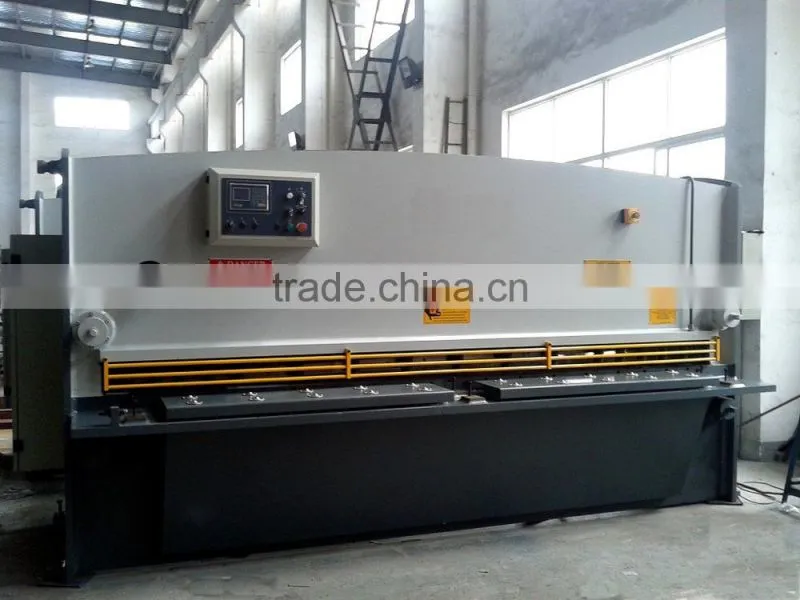

QC11Y Series Hydraulic Guillotine Shearing Machine
Guillotine Shear

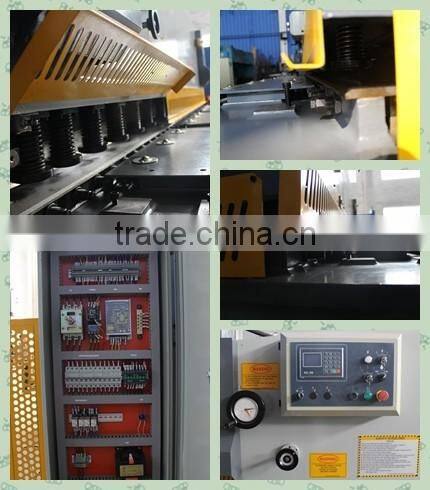

Features:
1.The frame and blade's holder adopt overall welding structure , vibrating to elimate stress, which can keep
good accuracy.
2.It adopts three-point support ball screw guideway, keeping good accuracy, which can improve the quality of
shearing.
3.The handwheel can adjust the gap between blades quickly, exactly and easily .
4.The rectangular blade, whose four cutting edge can be used, with a long service life. The shear angle could
be adjusted to reduce the the distortion of working piece.
5.The upper tool post adopts medial structure, which is easy to down ramp and can improve the accuracy of
workpiece, adjusting the travel of upper tool post steplessly.
Parameter:
Model |
Throat Depth |
Back Gauge Range |
Shear Angle |
Strokes |
Main motor |
Overall Dimension |
Weight |
(mm) |
(mm) |
|
(min-1) |
(KW) |
(mm) |
(kg) |
|
4×2000 |
100 |
600 |
1º 30º |
≥18 |
5.5 |
2640×1560×1650 |
4000 |
6×2500 |
100 |
600 |
1º 30º |
≥14 |
7.5 |
3160×1610×1650 |
5200 |
8×3200 |
100 |
600 |
1º 30º |
≥10 |
11 |
3860×1610×1650 |
6400 |
10×4000 |
100 |
600 |
2º |
≥7 |
15 |
4800×2000×2150 |
12500 |
12×5000 |
100 |
800 |
2º |
≥6 |
18.5 |
5820×2450×2400 |
18000 |
16×6000 |
100 |
800 |
2º |
≥5 |
30 |
6850×2650×2600 |
35000 |
20×2500 |
100 |
800 |
2.5º |
≥6 |
30 |
3420×2150×2100 |
12000 |
25×3200 |
100 |
1000 |
3º |
≥5 |
37 |
4150×2600×2600 |
23000 |
25×4000 |
100 |
1000 |
3º |
≥5 |
45 |
4890×2800×2800 |
26000 |
32×2500 |
100 |
800 |
3.5º |
≥5 |
45 |
3480×2600×2600 |
21000 |
32×3200 |
100 |
1000 |
3.5º |
≥5 |
45 |
4180×2800×2800 |
27000 |
Tips:We have 2 Diffreent type
Germany HACO Type
The Ordinary Type
