Home > Products > Sawing Machine > Semi Automatic Horizontal Metal Band Sawing Machine GBS-550/650)

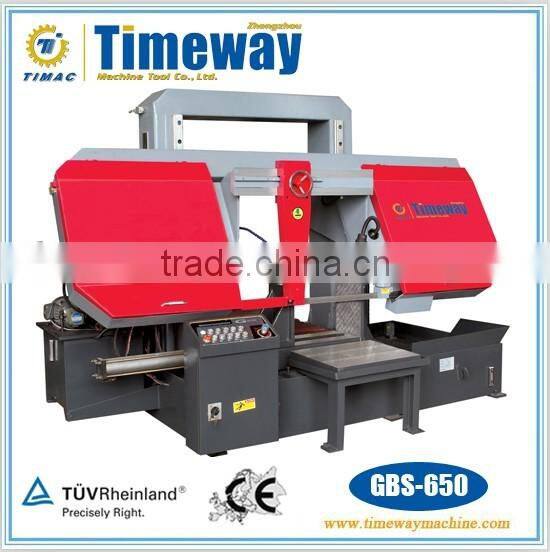

Semi Automatic Horizontal Metal Band Sawing Machine GBS-550/650)
- 100 Set / Sets per Month
- China port (As your requirement)
- T/T
You May Like
-
Big Sized Semi-automatic Horizontal Metal Band Sawing Machine (GBS-800)
-
Large Semi Automatic Horizontal Metal Band Sawing Machine (GBS-1000)
-
Fully Automatic Double Column Metal Band Saws
-
Double Column Horizontal Hydraulic Band Sawing Machine for Cutting Metal
-
NC Horizontal Metal Band Saws with PLC Control
-
Gantry Semi-automatic Horizontal Metal Band Sawing Machine (GBS-1600)
Product Details
| Brand Name | TIMAC | Model Number | GBS-550 GBS-650 | |
| Condition | New | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Semi Automatic Horizontal Metal Band Sawing Machine
Features:
Double-column portal horizontal band-sawing machine series is a kind of large and middle sized machine in
automatic and semi-automatic mode widely uses for cutting ferrous and non-ferrous metals. It has the advantages of narrow sawing cut, material saving, energy saving, high sawing precision, convenient
operation and high.
Parameter:
Model | Unit | GBS-550 | GBS-650 |
Cutting capacity | mm | 550 (550WX550H) | 650 (650WX650H) |
Blade speed | m/min | 30/50/60 | 20/45/65 |
Blade size | mm | 41x1.25x6460 | 41x1.25x6860 |
Motor main | kw | 5.5 (4P) | 5.5 (4P) |
Motor hydraulic | kw | 1.5 | 1.5 |
Coolant pump | kw | 0.075 | 0.075 |
Workpiece clamping |
| Hydraulic vice | Hydraulic vice |
Blade tensioning |
| Manual | Manual |
Main drive |
| Gear drive | Gear drive |
Table height | mm | 510 | 510 |
Size outward (LxWxH) | mm | 3030x1585x1990 | 3270x1585x2160 |
Standard Accessories:
Blade cleaning brush, Working light, Saw frame height selector gauge, Out feed with auxiliary plate table,
One piece of bi-metal saw blade, One set of tools with tool box, Roller table 1.5M long.
Optional Accessories:
Automatic chip conveyor, Power roller table 2M long, Laser projector, Hydraulic blade tension, roller table 2m
long, Hydraulic shuttle table feeding.

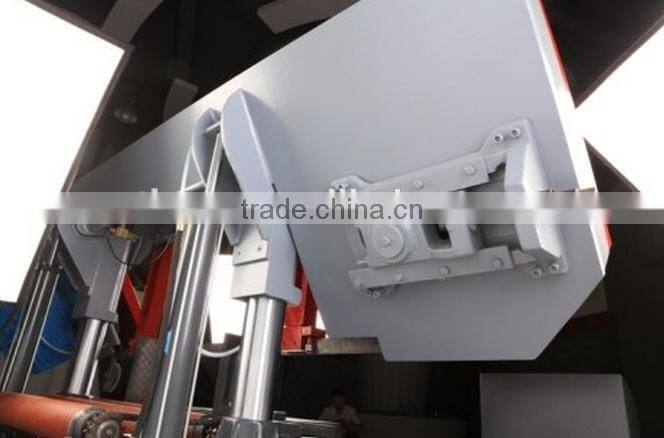

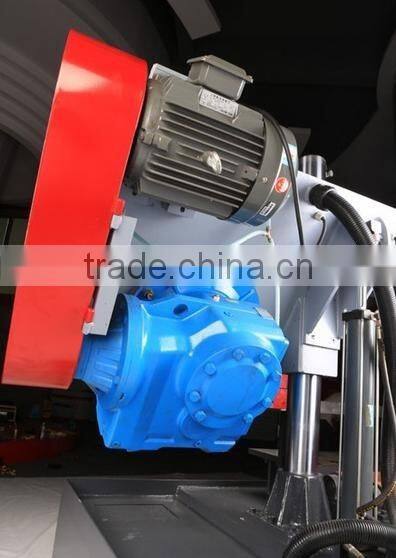

Details:
