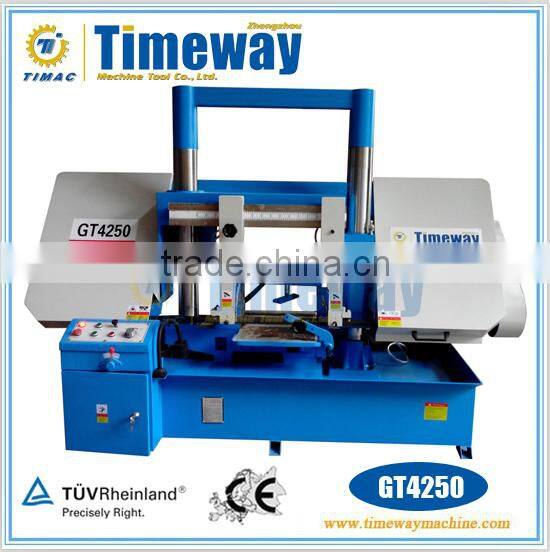

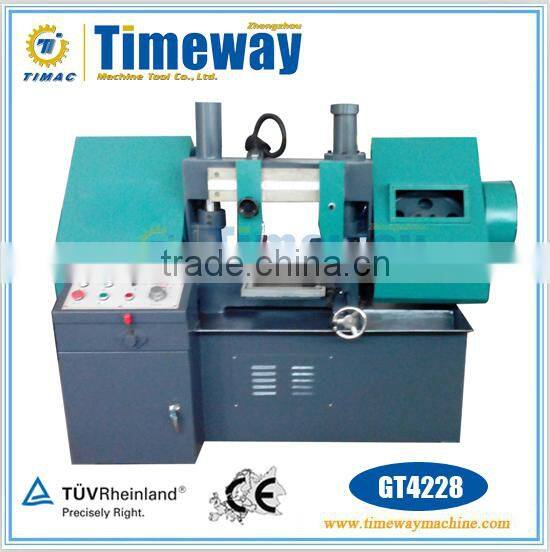

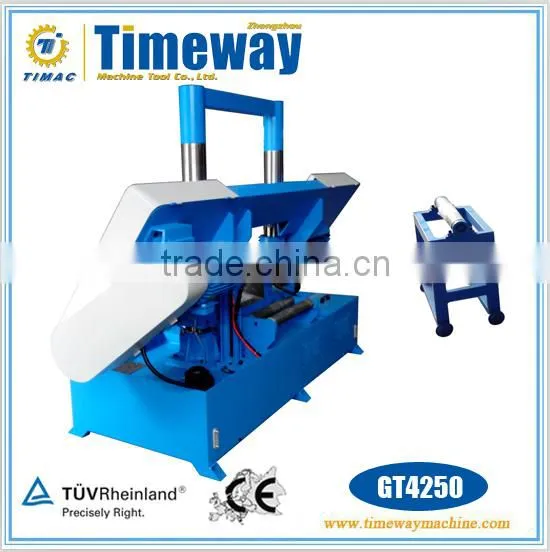

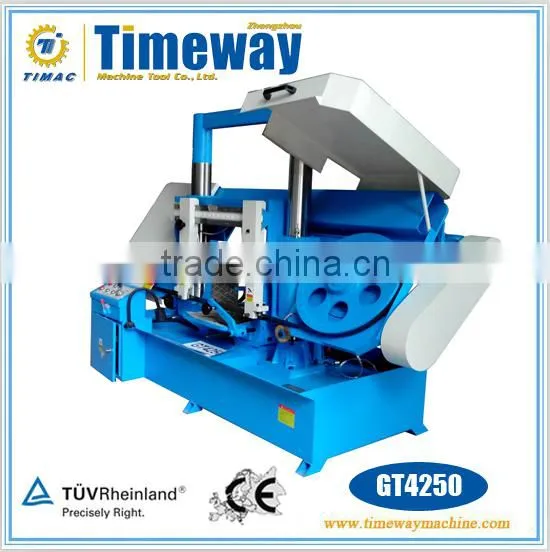

Double Column Horizontal Hydraulic Band Sawing Machine for Cutting Metal
GT4220 GT4228 GT4235 GT4240 GT4250
Features
1. Double column horizontal band sawing machine mainly used for all kinds of large-scale material sawing with high efficiency and high precision save material saving energy etc.
2. Double column structure vertical lifting high stability.
3. The hydraulic pressure controls the speed of saw stepless speed regulation.
4. The clamping of workpieces adopts hydraulic control, easy and smiple. Can make 3 hydraulic tension saw blades per request.
Technical Parameters
| Specifications | Units | GT4220 | GT4228 | GT4235 | GT4240 | GT4250 |
| Cutting capacity | mm | Φ200/200*200 | Φ280/280*280 | Φ350/350*350 | Φ400/400*400 | Φ500/500*500 |
| Blade size | mm | 2650*27*0.9 | 3505*34*1.1 | 4115*34*1.1 | 5000*41*1.3 | 5800*41*1.3 |
| Blade speed | m/min | 27/45/69 | 27/45/69 | 27/45/69 | 27/45/69 | 27/45/69 |
| Clamping type | Manual | Hydraulic | Hydraulic | Hydraulic | Hydraulic | |
| Main motor power | kw | 1.5 | 2.2 | 3 | 4 | 5.5 |
| Hydraulic motor power | kw | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 |
| Coolant pump power | kw | 0.04 | 0.04 | 0.04 | 0.125 | 0.125 |
| Overall dimension | mm | 1300*800*1100 | 1860*1000*1400 | 2000*1100*1500 | 2500*1300*1600 | 2800*1300*2000 |
|
|
|
|
|
|
|
|
|
Zhengzhou Timeway Machine Tool CO., Ltd. is a professional machinery manuafacture and exporter with many years' hiotory. Our products sell well in the domestic market and are exported to more than 80 countries and regions.
Main Products: CNC Lathe, Lathe, Machining Center, Milling Machine, Grinding Machine, Drilling & Milling Machine, Shearing Machine, Bending Machine, CNC Milling Machine, Sawing Machine, Boring Machine, Press Brake.
Main Markets: Western Europe, South Americal, Mid East, North ern Europe, Africa, etc.
