Pneumatic Friction Screw Forging Press
US$ 8,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
J53-630B
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
TIMAC
Model Number
J53-630B
Voltage
3 Phase 380V 10%/50-60Hz
Power(W)
55kw
Dimension(L*W*H)
4694*4320*6060mm
Weight
38513kg
Certification
CE ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Pneumatic Friction Screw Forging Press
J53-630B J53 Series

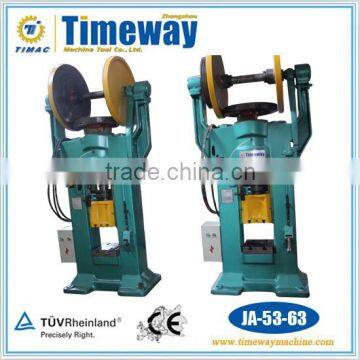

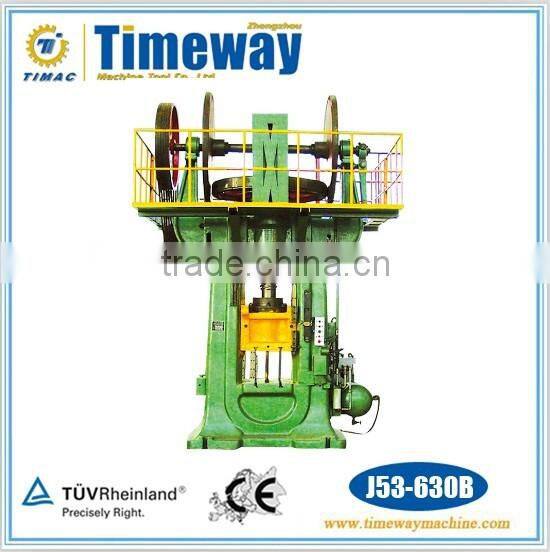

Main Outlook
Main Performances
Performance and Feature
- The series friction screw press is suitable for die forging, extruding, cutting edge, bending of nonferrous and ferrous metal.
- The press, with simple in constructure, large energy, low noise, long life, safe and reliable in operation, convenient service etc.
- The machine tool can be widely used in aviation, auto, tractor, tool manufacturing, texitile machinery industries etc. Among them, model JA-53-300 has won the silver medal in china.
Specifications List
| Model |
Nominal capacity KN |
Energy KJ |
Slide stroke mm |
Strokes per minute Min-1 |
Space for installing die mm |
Bed dimension mm |
Bottom of slide mm |
Overall dimensions mm |
Main motor power kw |
Total weight kg |
| JA-53-63 | 630 | 2.25 | 200 | 35 | 235 | 315*270 | 275*227 | 1010*1141*2655 | 5.5 | 2490 |
| J-53-100B | 1000 | 5 | 310 | 19 | 220 | 500*450 | 390*280 | 1393*1884*3375 | 7.5 | 5743 |
| J-53-160C | 1600 | 10 | 360 | 17 | 260 | 560*510 | 440*444 | 1465*2240*3730 | 11 | 8186 |
| J-53-300B | 3000 | 20 | 400 | 15 | 300 | 650*570 | 520*485 | 1820*2581*4345 | 22 | 13921 |
| J-53-400E | 4000 | 40 | 500 | 14 | 400 | 820*730 | 636*636 | 3200*2812*5165 | 30 | 22000 |
| J-53-630B | 6300 | 80 | 600 | 11 | 470 | 920*820 | 760*700 | 4694*4320*6060 | 55 | 38513 |
| J-53-1000C | 10000 | 160 | 700 | 10 | 500 | 1200*1000 | 1190*800 | 4400*6062*7290 | 90 | 82000 |
| J-53-1000K | 10000 | 160 | 700 | 10 | 500 | 1200*1000 | 1190*800 | 4400*5240*7300 | 90 | 76155 |
| J-53-1600C | 16000 | 280 | 700 | 10 | 550 | 1250*1100 | 1000*900 | 4700*6120*8090 | 132 | 103386 |
| J-53-1600D | 16000 | 280 | 700 | 10 | 550 | 1250*1100 | 1000*900 | 4700*6120*8090 | 75*2 | 104850 |
| J-53-2500E | 25000 | 500 | 800 | 9 | 680 | 1560*1200 | 1560*1060 | 5360*7000*8190 | 110*2 | 213000 |
| J-53-3150A | 31500 | 700 | 800 | 9 | 800 | 2000*1300 | 1900*1110 | 7000*5400*10210 | 160*2 | 350000 |
| J-53-4000 | 40000 | 850 | 800 | 9 | 800 | 2350*1300 | 2200*1110 | 7961*5580*10210 | 185*2 | 380000 |
| J-53-6300 | 63000 | 1000 | 800 | 9 | 800 | 2350*1300 | 2200*1110 | 8366*5780*10490 | 185*2 | 420000 |
| J-53-8000 | 80000 | 1150 | 800 | 8 | 800 | 2350*1300 | 2200*1110 | 8366*5780*10490 | 185*2 | 450000 |
| J-53-10000 | 100000 | 1650 | 800 | 8 | 900 | 2600*1600 | 2500*1440 | 9410*6400*12750 | 280*2 | 600000 |
Detailed Images

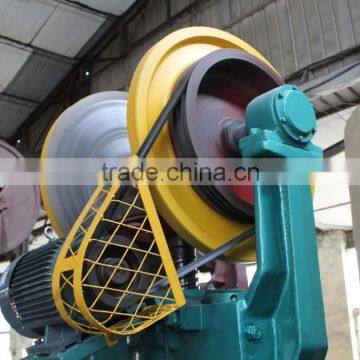

The machine tool adopts China famous brand 3Phase main motor, driving double disc transfer power to screw, then realize slide up and down moving. The base of motor is adjustable, low noise, running stable. As well as equipped with protection guard.

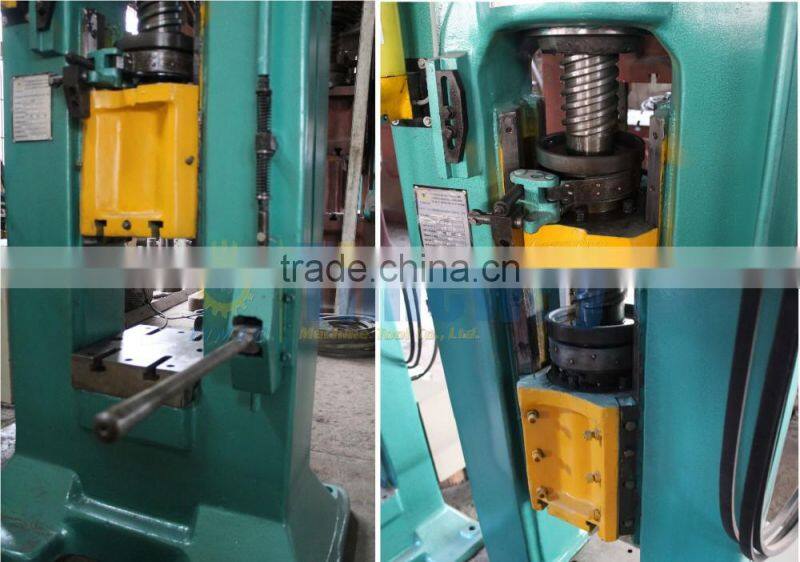

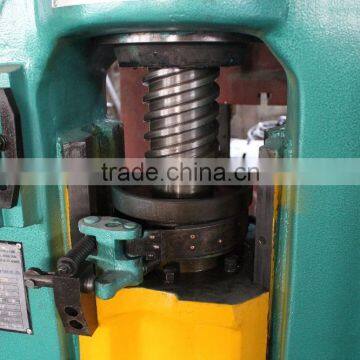

Slide and Screw
The press uses the connection of precision screw and copper nut, it has good performance, wear-resisting, long service life, etc, the handle operates flexible, equipped with mechanical brake device.
Worktable with knock-out device and Electrical box(380V/50HZ or according to customer's require)
Standard Operation instruction in English and Brand of Timeway

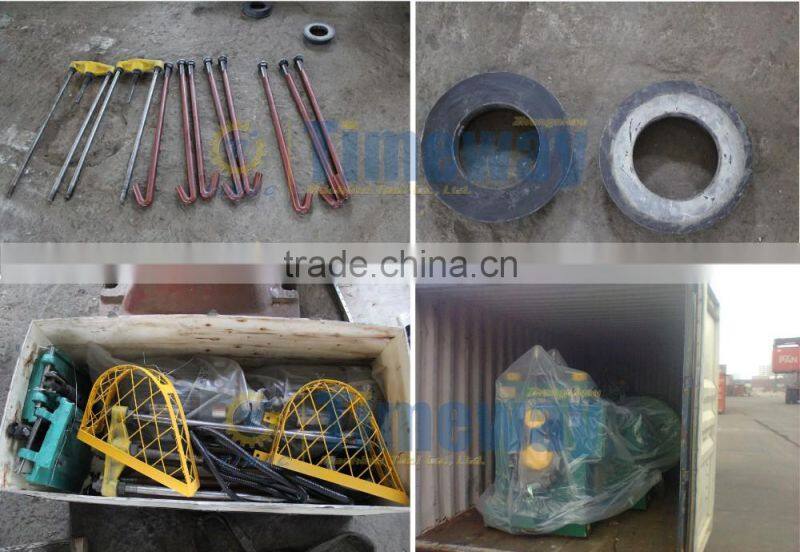

Packaging & Shipping

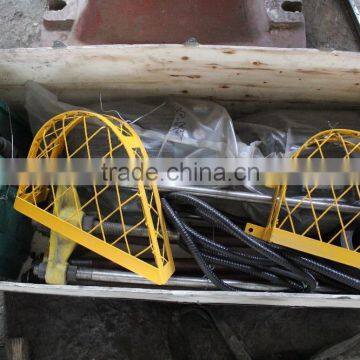

Standard accessories and easy-wear parts. Accessory case and Soft package of the machine tool, if you have special need, we can provide other accessories and package.
