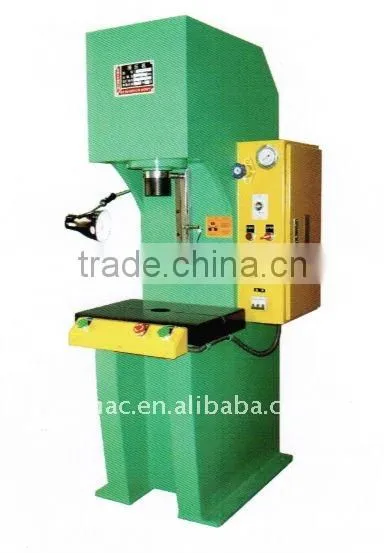

Hydraulic C-frame Press YC160T,YC250T

Name: Hydraulic C-frame Press YC160T,YC250T
Brand: TIMAC
SKU: 140797678
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 5,000 - 15,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

TIMAC

Model Number:

YC160T,YC250T

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name TIMAC

Model Number YC160T,YC250T

Condition New

Hydraulic C-frame Press

Features:

1. The Hydraulic C-frame Press machine is a kind of medium hydraulic press with multifuctions.

2. It suitable for the calibration of the parts like bearings and moulding materials, and for the arber of parts like bearings and sleeves.

3. It can complete the technology function of bending, marking and shelling of plate material parts, and the function of stretching of simple parts.

4. It can also be used to press powder and plastic products which the requirements are not strict.

Specifications		Unit	YC160T	YC250T
Nominal force		KN	1600	2500
The max. working pressure of the fluid		Mpa	25.5	25.5
The max. distance between the under surface of the slipperand the surface of the working table		mm	1000	1000
The max. stroke of the slipper		mm	500	500
Downlink velocity of the slipper		mm/s	24	23
Return velocity of the slipper		mm/s	65	55
Throat depth		mm	325	360
Thre size of the working stable	Front, Rear	mm	650	660
Thre size of the working stable	Left, Right	mm	800	800
The height of the working table to the surface of the floor		mm	750	710
The diameter for cutting hole		mm	200	200
The diameter of cylinder hole		mm	280	360
Description of oil pump		Pressur equalization variable axial plunger pump
The power for motors		kw	11	22
The configuration size of the machine tool	Front, Rear	mm	1550	1767
	Left, Right	mm	1000	1100
	The height above the floor	mm	2950	3305
Total weight(approx)		T	9	15
