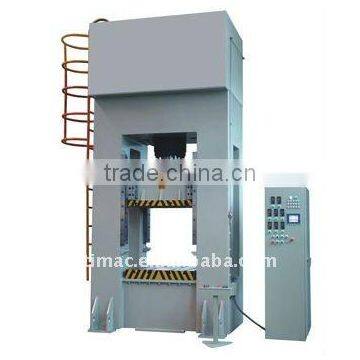

Frame Type Hydraulic Press

Frame Type Hydraulic Press

Applications:

1. The Frame Type Hydraulic Press is suitable for all the stretching, bending and forming process.

2. Cover panel of big automobile, farm vehicle, and other parts.

3. Boiler seal cover, liquid gas tanks, stainless steel hand washing tank, common bathing pool ect.

4. Ship, aeronautics and astronautics ect. fields.

Features:

1. Frame type steel welding whole or fission structure, when postwelding adopts vibration or tempering treatment, ensuring good rigidity and high precision.

2. Hydraulic controller adopts integrated structure of cartridge valve, with small wallop, reliable action, long working life, and less leak.

3. New oil cylinder sealing components, with high reliability and long working life.

4. Stretching and blank pressing slider can form a whole to realize single-acting process action.

5. Automatic lubrication device of guide rail.

6. Mechanical and electrical integration safety device, such as the lower cavity of oil cylinder support return circuit, the upper and lower cavity mutual interlock return circuit ect., with superior safety.

7. The electrical system controlled by PLC.

8. It can realize fixed pressure and fixed distance two molding techniques, with pressure maintaining and time-delay functions, and the delay time is adjustable.

9. The working pressure and stroke can be adjusted as technics requirement within the specified scope, easy operation.

Optional accessories:

1. Photoelectric safety protection device;   2. Movable worktable;   3. Floating guide and rolling bracket for die changing; 4. Blanking cushioning device;   5. Molds quick clamping mechanism;   6. Touch industrial display screen;   7. Digital display numerical control device of stroke, pressure, speed;   8. Heating and cooling device of hydraulic system, displacement heat transfer device;   9. Blank pressing slider, four corners respective pressure regulating devices of hydraulic cushion (for stretching asymmetric parts).
