Home > Products > Press / Punching Machine > Power Operated Hydraulic Press
Power Operated Hydraulic Press
- 200 Set / Sets per Month
- China Port
- T/T
-
Professional High Precision Wide Application J23-25 cnc turret punching machines
-
High Precision Wide Application J23-25 c frame punch press
-
Professional High Precision Wide Application J23-25 hydraulics
-
High Precision Wide Application J23-25 c frame fixed table punching machine
-
Factory Sale High Precision Wide Application J23-25 construction material making machine
-
High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
| Condition: | New | CNC or Not: | Normal | Power Source: | Hydraulic |

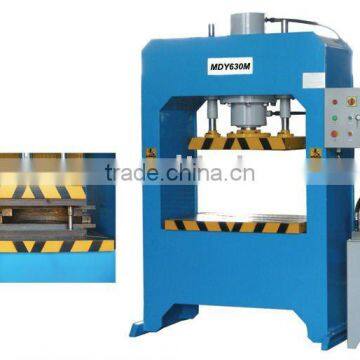

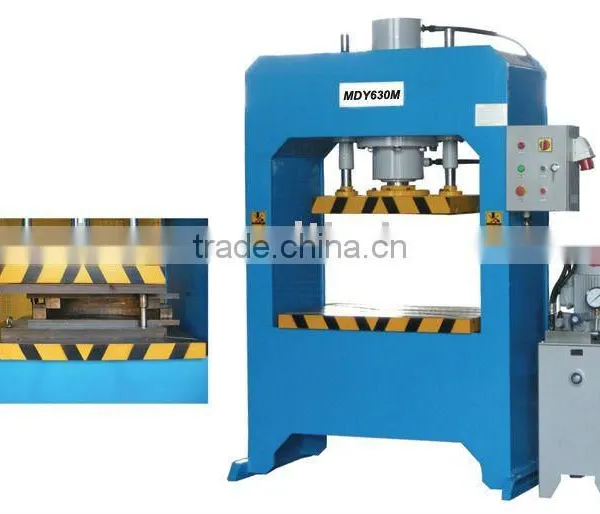

| Place of Origin: | Henan, China | Brand Name: | TIMAC | Model Number: | MDY630M MDY1000M MDY1500M MDY2000M MDY3000M MDY3000AM |
Product Description
Specifications
1. Power Operated Hydraulic Press;2. Optimal steel-frame structure;
3. Single piston double-acting hydraulic oil cylinder;
Power Operated Hydraulic Press;
Optimal steel-frame structure;
Single piston double-acting hydraulic oil cylinder;
Performance and features:
1. Economical and practical type mould press, performance is stable and reliable.
2. Optionally designed steel-frame structure, is sturdy and durable.
3. Single piston double-acting hydraulic oil cylinder, is durable.
4. Manual operated control, operation is convenient and flexible.
Technical specifications:
Item | Unit | MDYm63/50 | MDYm100/50 | MDYm150/50 | MDYm200/50 | MDYm300/40 | MDYm300A/40 |
Max. pressure | KN | 630 | 1000 | 1500 | 2000 | 2000 | 2000 |
Hydraulic pressure | Mpa | 30 | 30 | 30 | 30 | 30 | 30 |
Upper mould stroke | mm | 500 | 500 | 500 | 500 | 400 | 400 |
Recommended pump station | BYBZ15/YBZ7 | BYBZ36/YBZ15 | BYBZ36/YBZ15 | BYBZ36/YBZ15 | BYBZ36 | BYBZ36 | |
Descending speed | mm/s | 12/5.8 | 19.1/7.6 | 12.2/49 | 9.7/3.9 | 5.9 | 5.9 |
Working speed | mm/s | 3 | 3/4.8 | 3.1 | 2.4 | 1.5 | 1.5 |
Speed of return stroke | mm/s | 16/7.7 | 26.4/10.5 | 16.8/6.7 | 14.5/5.8 | 8.5 | 8.5 |
Motor power | kw | 2.2/4 | 5.5/7.5 | 5.5/7.5 | 5.5/7.5 | 5.5 | 5.5 |
Weight | kg | 1250 | 2080 | 3800 | 4800 | 5600 | 6800 |
A | mm | 2150 | 2250 | 2350 | 2450 | 2650 | 2850 |
B | mm | 1700 | 1900 | 2250 | 2300 | 2500 | 2750 |
C | mm | 750 | 850 | 1050 | 1100 | 1200 | 1250 |
D | mm | 900 | 1050 | 1250 | 1250 | 1250 | 1500 |
E | mm | 500 | 600 | 700 | 700 | 750 | 750 |
F | mm | 500 | 500 | 500 | 500 | 400 | 400 |
