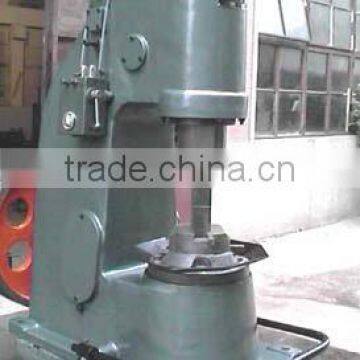

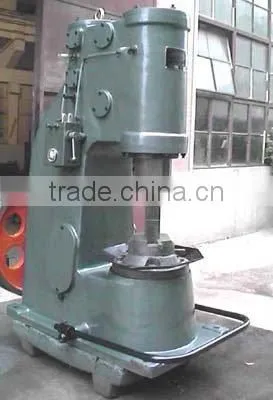

One piece pneumatic forging hammerAir Hammer
One piece pneumatic forging hammer
Applications:
This pneumatic forging hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. It is also used for forge in bolster dies.
Features of pneumatic forging hammer:
*Ready operation: economic and convenient
*Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired
*A special oil-pump is provided for lubricating the cylinders. Prior to running, turn the hand-crank of the pump to get the cylinders being lubricated beforehand.
The main technical parameter of one piece pneumatic forging hammer:
Model |
AH-9 |
AH-15 |
AH-25 |
AH-40 |
AH-55 |
AH-75 |
|
Weight of falling parts (kg) |
9 |
15 |
25 |
40 |
55 |
75 |
|
Maximum hit energy(kj) |
0.09 |
0.16 |
27 |
0.53 |
0.7 |
1 |
|
Diameter of the working cylinder(mm) |
100 |
115 |
165 |
200 |
215 |
210 |
|
Diameter of the compressing cylinder(mm) |
105 |
125 |
170 |
205 |
220 |
240 |
|
Hit number (min-1) |
245 |
245 |
250 |
245 |
230 |
210 |
|
Height of working area (mm) |
135 |
160 |
240 |
230 |
270 |
300 |
|
Tup axis to frame front (mm) |
120 |
140 |
200 |
235 |
270 |
280 |
|
Dimension of top die surface(L x W) (mm) |
60x35 |
70x40 |
100x50 |
116x53 |
135x60 |
145x65 |
|
Dimension of bottom die surface(L x W)(mm) |
60x35 |
70x40 |
100x50 |
116x53 |
135x60 |
145x65 |
|
Maximum round steel can be forged(Diameter)(mm) |
30 |
35 |
48 |
68 |
75 |
85 |
|
Maximum square steel can be forged(mm) |
25x25 |
30x30 |
40x40 |
52x52 |
60x60 |
65x65 |
|
Distance from bottom die surface to base(mm) |
325 |
370 |
410 |
500 |
610 |
750 |
|
Machine floor space(L x W)(mm) |
790x550 |
850x500 |
1320x610 |
1265x1470 |
1435x1650 |
1430x1478 |
|
Machine height (above the ground) (mm) |
950 |
980 |
1300 |
1390 |
1590 |
1853 |
|
Motor |
Type |
Y90L-4 |
Y100L-4 |
Y112M-6 |
Y132MI-6 |
Y132M2-6 |
Y160M-6 |
Rate power(kw) |
1.5 |
2.2 |
3 |
4 |
5.5 |
7.5 |
|
Speed(r/min-1) |
1400 |
1400 |
970 |
960 |
960 |
970 |
|
Total weight of the hammer (kg) |
250 |
290 |
720 |
860 |
1300 |
2500 |
|
