Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Forging Machinery > Open Type Fixed-table Press Machine

Open Type Fixed-table Press Machine

Name: Open Type Fixed-table Press Machine
Brand: TIMAC
SKU: 140797638
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Open Type Fixed-table Press Machine thumbnail-1

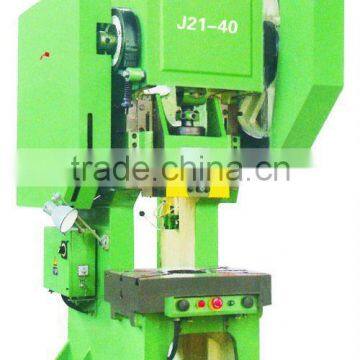

Open Type Fixed-table Press Machine photo-1

US$ 5,000 - 12,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

TIMAC

Model Number:

J21-25, J21-40, J21-63, J21-80, J21-100, J21-125, J21-165, J21-200

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name TIMAC

Model Number J21-25, J21-40, J21-63, J21-80, J21-100, J21-125, J21-165, J21-200

Specifications

Open Type Fixed-table Press Machine

Open Type Fixed-table Press Machine

Power press

TYPE			OPEN TYPE INCLINABLE PRESS										OPEN TYPE FIXED-TABLE PRESS
Model		Unit	J23-6.3	J23-10	J23-16	J23-16A	J23-20	J23-25A	J23-35	J23-40	J23-63	J23-80	J21-25	J21-40	J21-63	J21-80	J21-100	J21-125	J21-165	J21-200
Nominal pressure		KN	63	100	160	160	200	250	350	400	630	800	250	400	630	800	1000	1250	1650	2000
Nominal pressure stroke		mm	1.5	2	2	2	2	2.5	3	4	4	5	2	4	4	5	5	5	6	6
Stroke of slide		mm	35	60	70	90	90	90	100	100	120	120	80	100	120	130	140	150	160	180
Strokes		S.P.M	170	145	122	125	90	55	53	55	50	50	100	55	50	50	45	45	40	40
Max. Die. Set height		mm	115	130	160	140	180	180	150	220	270	270	180	220	270	280	290	340	350	360
Die. Height adjustment		mm	30	50	60	60	70	70	70	80	90	90	70	80	90	90	100	100	100	100
Depth of throat		mm	110	130	160	200	175	190	205	240	260	280	190	240	260	290	320	380	390	400
Distance between uprights		mm	145	185	220	305	240	260	290	300	350	380	240	300	350	380	450	530	480	530
Size of table	L-R	mm	310	360	450	620	500	560	610	700	710	710	560	700	710	780	900	1100	1150	1200
	F-B	mm	200	240	300	380	330	360	380	460	480	480	360	460	480	540	600	710	750	780
	Thickness	mm	35	50	60	60	70	70	70	80	90	90	70	80	90	90	110	120	140	140
Hole of table	Diameter	mm	Φ60	Φ100	Φ110	Φ110	Φ110	Φ120	Φ130	Φ150	Φ180	Φ180	Φ120	Φ150	Φ180	Φ180	Φ200	Φ200	Φ250	Φ300
Bottom size of slide	L-R	mm	140	170	200	200	220	250	255	320	320	320	220	320	320	380	390	520	650	700
Bottom size of slide	F-B	mm	120	150	180	180	200	210	210	270	280	280	200	270	280	280	340	400	450	500
Hole for punch shank	Diameter	mm	Φ30	Φ30	Φ40	Φ40	Φ40	Φ40	Φ40	Φ50	Φ50	Φ50	Φ40	Φ50	Φ50	Φ50	Φ50	Φ60	Φ70	Φ70
Hole for punch shank	Depth	mm	55	55	60	60	60	60	60	70	80	80	60	70	80	80	80	80	80	80
Motor power		kw	0.75	1.1	1.5	1.5	2.2	2.2	3	4	5.5	7.5	2.2	4	5.5	7.5	11	11	15	18.5
Overall dimensions	L-R	mm	780	870	1140	1200	1200	1350	1480	1500	1890	1890	1350	1500	1890	1910	2200	2250	2350	2500
	F-B	mm	550	640	905	850	880	950	1050	1180	1400	1400	950	1180	1400	1500	1500	1710	1810	1850
	Height	mm	1500	1660	1890	1850	2000	2130	2220	2300	2750	2820	2220	2300	2750	2850	3180	3230	3480	3570
Total weight		kg	380	770	1090	1190	1400	1950	2250	3400	4600	5300	1870	3400	4600	5650	8500	9600	13300	15800
