YPE-3048 CNC High-speed Mechanical Turret Punching Machine for sheet metal
- 200 Set / Sets per Month
- China Port
- T/T
-
Professional High Precision Wide Application J23-25 cnc turret punching machines
-
High Precision Wide Application J23-25 c frame punch press
-
Professional High Precision Wide Application J23-25 hydraulics
-
High Precision Wide Application J23-25 c frame fixed table punching machine
-
Factory Sale High Precision Wide Application J23-25 construction material making machine
-
High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
| Condition: | New | CNC or Not: | CNC | Power Source: | Mechanical |
| Brand Name: | TIMAC | Model Number: | YPE-3084 | Voltage: | 380v/50hz (According to your need) |
| Power(W): | 5.1kw | Weight: | 16000kg | Dimension(L*W*H): | 5330*5000*2250mm |
| Certification: | ISO9001, CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

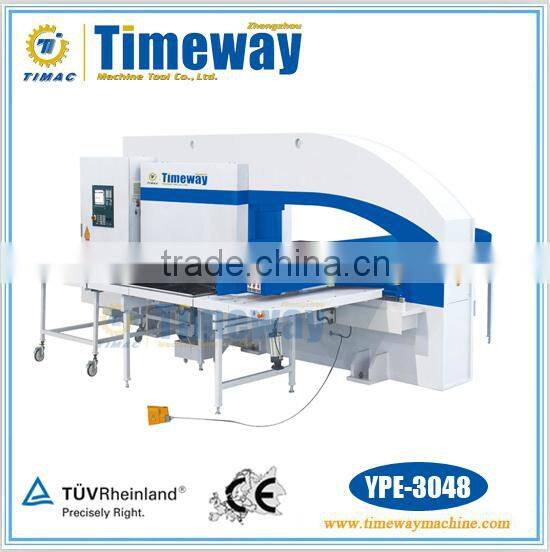

CNC High-speed Mechanical Turret Punching Machine for Sheet Metal
YPE-3048
Performance and Feature
1. New type CNC tuttet punch with high speed, more efficiency and lower noise.
2. Adopt advanced mechanical servo ram-head, the max. marking frequency is 1500cpm.
3. Thick turret with sleeve structure, better guiding and higher precision, longer life-span of tooling.
4. Adopt SIEMENS 802D controller, Germany, four axis synchronized control function.
5. Keeping touch index tool position, proprietary technology from NISSHIBO.
6. Support functions of wheeling, tapping and multi-tools.
7. Rapid loading and unloading tools.

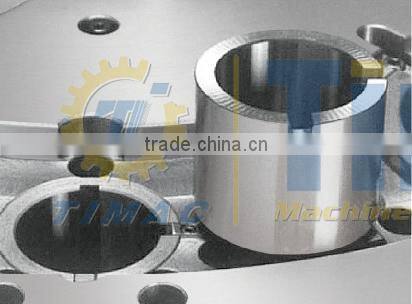

Turret and Dies
|
Feed and Configurations
| |
Technical Parameters
| Specifications | Units | YPE-3048 | |
| Nominal pressure | kN | 300 | |
| Max. sheet dimension(Including one positioning) | mm | 1250*5000 | |
| Max. sheet thickness | Carbon steel sheet | mm | 6.35 |
| Stainless steel sheet | mm | 4 | |
| Max. one-time punching diameter | mm | Φ88.9 | |
| Dies | 36 | ||
| Punching accuracy | mm | ±0.1 | |
| Punching times per minute | cpm | 1500 | |
| Max. punching frequency(1mm step 4mm punching stroke) | cpm | 680 | |
| Max. punching frequency(25.4mm step 4mm punching stroke) | cpm | 400 | |
| Max. sheet moving speed | m/min | 102 | |
| Turret speed | rpm | 30 | |
| Working integrated power | kw/h | 5.1 | |
| Standby power | kw/h | 0.9 | |
| Axes of control | 5(X,Y,Z,T,C) | ||
| Air pressure | Mpa | 0.6 | |
| Overall dimesion | Length | mm | 5330 |
| Width | mm | 5000 | |
| Height | mm | 2250 | |
| Machine weight | kg | 16000 | |
Zhengzhou Timeway Machine Tool CO., Ltd. is a professional machinery ?manuafacture and exporter with many years' hiotory. Our products sell well in the domestic market and are exported to more than 80 countries and regions.
Main Products: CNC Lathe, Lathe, Machining Center, Milling Machine, Grinding Machine, Drilling & Milling Machine, Shearing Machine, Bending Machine, CNC Milling Machine, Sawing Machine, Boring Machine, Press Brake.
Main Markets: Western Europe, South Americal, Mid East, North ern Europe, Africa, etc.
