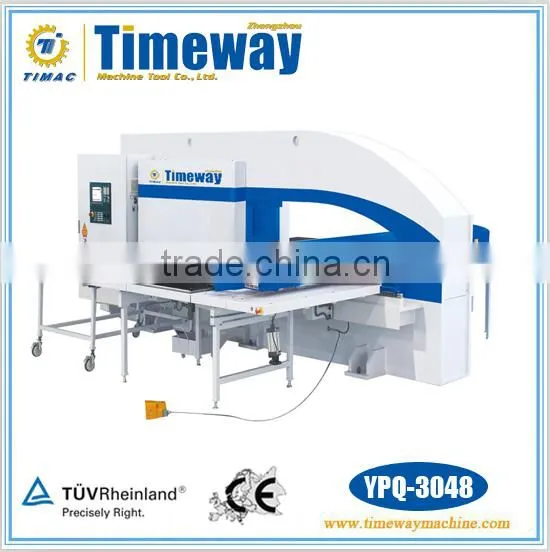

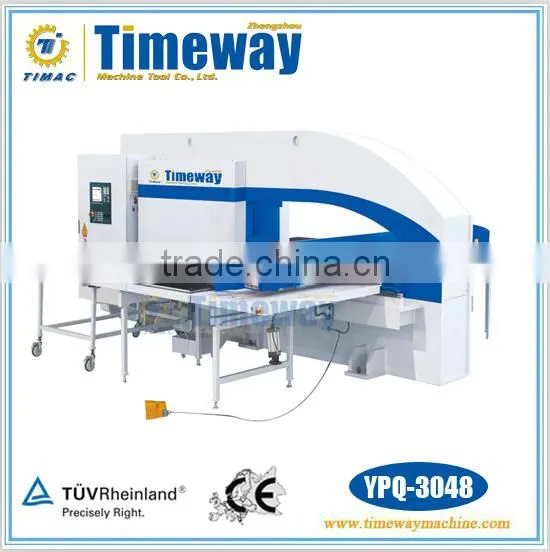

Help CenterYPQ-3048 CNC High-speed Hydraulic Turret Stamping Machine for Sheet Metal
Related Products
-
YPE-3048 CNC High-speed Mechanical Turret Punching Machine for Sheet MetalUS$ 10,000 - 150,000MOQ: 1 Set -
High Ductility Cold Rolled Ribbed Steel Bar Production LineUS$ 260,000 - 300,000MOQ: 1 Set
-
METAL CRAFT COINING MACHINENegotiableMOQ: 1 Set
-
Double Oil-Cylinder CNC Internal Pull Broaching MachineUS$ 10,000 - 200,000MOQ: 1 Set
-
Double Oil-Cylinder Vertical Internal Push CNC Broaching MachineUS$ 10,000 - 200,000MOQ: 1 Set
CNC High-speed Hydraulic Turret Punching Machine for Sheet Metal
YPQ-3044 YPQ-3047 YPQ-3048 YPQ-3057 YPQ-3058
Performance and Feature
1. New type CNC turret punch with high speed, more efficiency and lower noise.
2. Thick turret with sleeve structure, better guiding and higher precision, longer life-span of tooling.
3. Keeping touch index tool position, proprietary technology from Nisshinbo.
4. Rapid loading and unloading tools
5. Main Parts (turret parts, components of index tool and reducer box, etc) supplied by Nisshinbo company.
6. High speed hydraulic ram head and hydraulic system of H+L from Germany, max 1750cpm with no load.
7. Siemens 802D CNC system.
8. Wheel function, four-axis synchronised control fuction.
9. Automatic movement function of clamps(optional)
Hydraulic Ram-head
H+L hydraulic ram head from Germany, stroke can be adjusted by CNC system, and pressure is stable during the whole stroke, with overload proceccion of oil pressure, stable performance and low noise. Multi-rings turret process ensures more flexibility.
Hydraulic System
H+L hydraulic system completely from Germany, with cooling device oil temperature, low energy consumption and little volume.
Driving the Turret
Compact structure, high precision of driving, reliable and stable.
Turret and Index Tools
Nisshinbo supply components, thick turret structure, better guiding and higher precision. Keeping touch index tool position, higher precision and efficiency, driven bt worm and worm wheel, which is soaked in oil, less wore away and longer life.
Monitoring Device for Deformed Workpiece
The sheet may Strike the turret if it deforms more than a certain limit. With two sides monitor switches of punching center, it will prevent striking in advance and protect both work piece and also machine.
Lower Die Rapid Unloading
Lower die rapid loading and unloading are accurate and convenient.
Material feeding structure and clamps
Long stroke precision ground ball screw, four guiding-slots linear guide, higher positioning precision, faster speed.
Adopt pneumatic floating clamps, high strength, stable and reliable. Equipped with lossening alarm to ensure safe process.
No-punching zone detection cells
Provides overall protection to the clamps. Protects the clamps from striking or being punched when manually moved to this critical area or in case of a software protection failure.
Standard brush worktable with steel balls
Adopt high density soft brush, ensure the material move stably, low moise, reduce scratching, equipped with steel balls, prolonging the service life.
Steel ball worktable is more suitable for steel plate thicker than 3.5mm(optional).
Hardened die bushings
Turret head adopts a sleeve structure, prolonging the service life, the die bushings have a harder surface, guaranteeing better resistance to wear and easier interchange.
Tools
Thcik turret series tools have more guiding length. The tools also have a harder surface and better wear resistance. It can be used for several type of applications such as punching, overturning and edge knurling.
CNC system
World top-class Siemens CNC system. ensure precise control and smooth, reliable movement (Optional: Fanuc CNC system).
Main configuration and functions(Siemens CNC system):
· Display 10.4" true color, multi language.
· CPU 233MHZ/400MHZ
· Operating system: Linux/Windows
· I/O interface: RS232, 100M ethernet, USB interface, CF card slot.
· Ram 1 G/40 G
· Good expandability
· Efficient and flexible
Technical Parameters
| Specifications | Units | YPQ-3044 | YPQ-3047 | YPQ-3048 | YPQ-3057 | YPQ-3058 | |
| Nominal pressure | kN | 300 | 300 | 300 | 300 | 300 | |
|
Max. sheet dimension (including first positioning) |
mm | 1250*2500 | 1250*4000 | 1250*5000 | 1500*4000 | 1500*5000 | |
| Max. sheet thickness | Carbon steel sheet | mm | 6.35 | 6.35 | 6.35 | 6.35 | 6.35 |
| Stainless steel sheet | mm | 4 | 4 | 4 | 4 | 4 | |
| Max. one-time punching diameter | mm | Φ88.9 | Φ88.9 | Φ88.9 | Φ88.9 | Φ88.9 | |
| Dies | 40 | 40 | 40 | 40 | 40 | ||
| Punching accuracy | mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.1 | |
| Punching times per minute | cpm | 1750 | 1750 | 1750 | 1750 | 1750 | |
|
Max. punching frequency (1mm step 6mm punching stroke) |
cpm | 690 | 690 | 690 | 690 | 690 | |
|
Max. punching frequency (25.4mm step 6mm punching stroke) |
cpm | 330 | 330 | 330 | 330 | 330 | |
| Max. steel speed | m/min | 102 | 102 | 102 | 102 | 102 | |
| Turret speed | rpm | 30 | 30 | 30 | 30 | 30 | |
| Axles of control | 5(X,Y,Z,T,C) | 5(X,Y,Z,T,C) | 5(X,Y,Z,T,C) | 5(X,Y,Z,T,C) | 5(X,Y,Z,T,C) | ||
| Main power | kw | 21 | 23 | 24 | 23 | 24 | |
| Air pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Overall demensions | Length | mm | 5800 | 5800 | 5800 | 6300 | 6300 |
| Width | mm | 2300 | 4000 | 5000 | 4000 | 5000 | |
| Height | mm | 2200 | 2200 | 2200 | 2200 | 2200 | |
| Machine weight | kg | 14500 | 15500 | 16500 | 18500 | 19500 | |
