SEMI-UNIVERSAL DIVIDING HEAD



Features:

1. Type F12 series,the semi-universal dividing head is one of the most important attachment for milling machine.With the help of this dividing head ,the workpiece held can be carried out direct indexing and simple indexing,or rotate to any angle as desired and the periphery of a workpiece can be divided into any divisionsof equal parts and etc.

2. The F12 series with right handwheel.



Main specifications:
Specification F12100 F12125 F12160 F12200
Center hight mm 100 125 160 200
Swivel angle of spindle from it's horizontal position(upward) ≤95°
Horizontal position(downward) ≤5°
Rotating angle of spindle for one complete revolution of dividing handle 9°(540 grad.,1'each)
Min.reading of vernier 10”
Worm gear ratio 1:40
Taper of spindle bore MT3 MT4
Width of locating key.mm 14 18
Diameter of short taper of spindlenose for mounting flange mm Φ41.275 Φ53.975 Φ53.975 Φ53.975
Hole numbers on index plate 1st plate 24,25,28,30,34,37,38,39,41,42,43
2nd plate 46,47,49,51,53,54,57,58,59,62,66
Individual indexing error of the spindle for one complete revolution of dividing handle ±45"
Cumulate error at any 1/4 periphery of spindle ±1"
Max.bearing Kg 100 130 130 130
Net weight Kg 57 83.5 100 130
Gross weight Kg 69 96 114 140
Case Dimensions mm 610×459×255 536×460×310 710×505×342 710×535×342





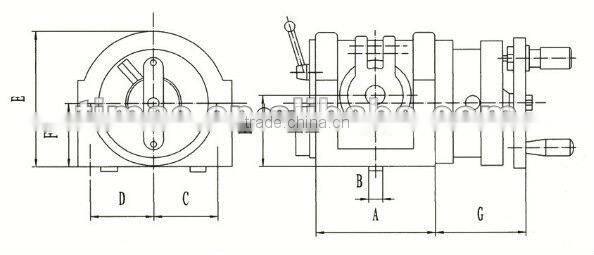

DIMENSIONAL SKETCH:

SEMI-UNIVERSAL DIVIDING HEAD



Installation sketch and dimensions:

Model A B C D E F G H L M N O P
F12100 162 14 102 87 186 95 116 100 93 54.7 30 100 100
F12125 209 18 116 98 224 117 120 125 103 68.5 34.5 100 125
F12160 209 18 116 98 259 152 120 160 103 68.5 34.5 100 160
F12200 209 18 116 98 299 192 120 200 103 68.5 34.5 100 200



Accessories:

Tailstock,Change gear bracket,12×change gear,Jack Carrier, Dividing plate, Flange, 3-jaw chuck,
Round table(optinal)
