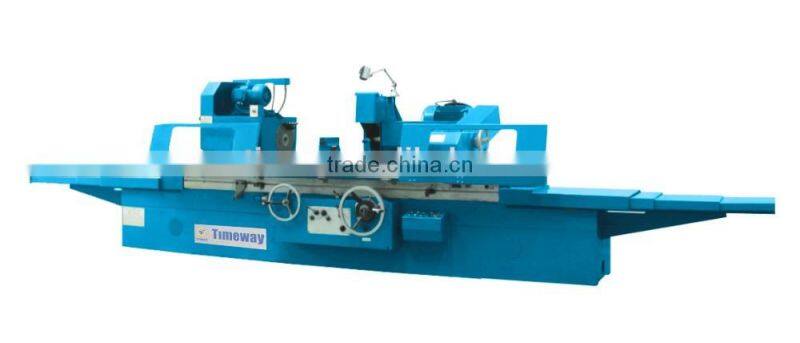

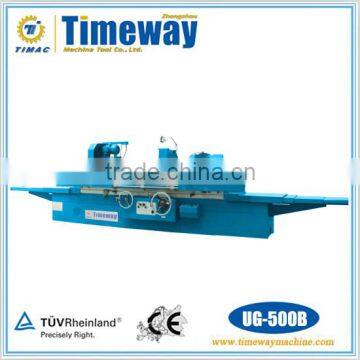

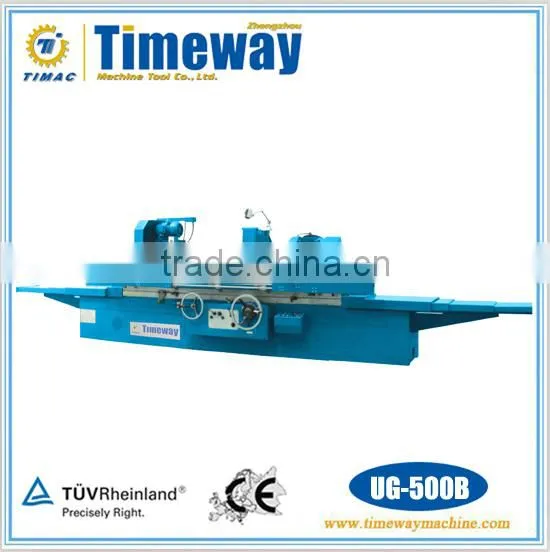

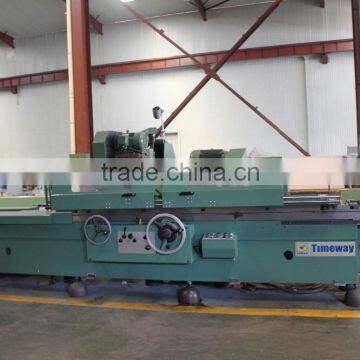

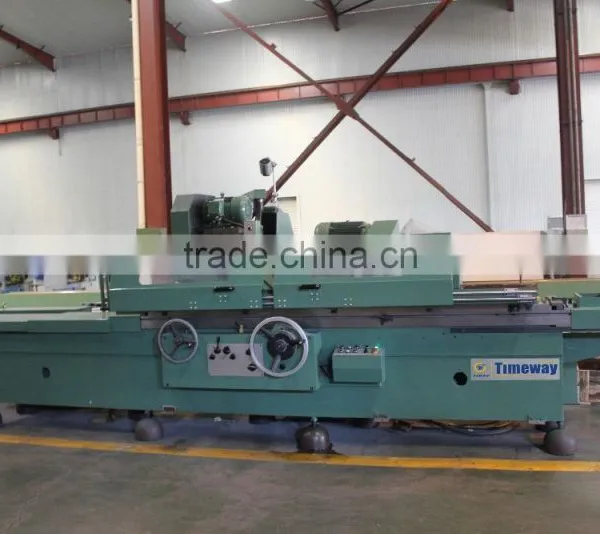

Large-type High Precision Universal Cylindrical Grinding Machine
UG-500B G-500B
Main Functions and Features
1. The cylindrical grinding machine is designed for grinding cylindrical or taper surface of rotational parts. It is highly adaptable for single and small batch production.
2. The table traverse is actuated by hydraulic means at infinitely variable speed or operated by hand.
3. Auto internittent micro-infeed and rapid approach, witherawal of the wheelhead can be effected hydraulically, while rough-fine-feed realized by handwheel.
4. Worktable guideways are hydrostatically lubricated.
5. The grinding wheel spindle is supported by three tilting segmented shoes.
6. Workpiece, wheel, hydraulic pump, coolant pump are driven separately by individual motors.
7. Each motion part of machine is controlled by electric, hydraulic, mechanical interlocking mechanism, thus the machine can be operated easily and safety.
Oil Cylinder
Main Accessories
- Coolant equipment
- Wheel hub
- Leveling wedge(length to be ground)
- Open-type steady-rest(length to be ground)
- Wheel periphery dresser
- Wheel balancing-mandrel
- Internal grinding attachment
Extra Accessories
- Wheel balancing stand
- Radius dresser
- Wheel endface dresser
- Magnetic separator
- Close-type steady-rest
Technical Parameters
| Specifications | Units | G-500B | UG-500B |
| Max. dia. to be ground | mm | 500 | 500(Ext.) 200(Int.) |
| Max. lenght to be ground | mm | 1500/2000/3000/4000 | 1500/2000/3000/4000(Ext.) 320(Int) |
| Max. workpiece weight | kg | 1000 | 1000 |
| Wheel size(O.D*W*I.D) | mm | Φ750*75*Φ305 | Φ500*75*Φ305 |
| Wheel spindle rotation speed | rpm | 870 | 870 |
| Center height | mm | 270 | 270 |
| Max. worktable traverse | mm | 1500/2000/3000/4000 | 1500/2000/3000/4000 |
| Max. worktable travel speed | m/min | 3 | 3 |
| Wheel peripheral speed | m/s | 35 | 35 |
| Wheelhead rapid approach and withdrawal travel | mm | 100 | 100 |
| Automatic intermittent infeed(rough/fine) | mm | 0.02/0.0025 | 0.02/0.0025 |
| Manual microfeed(rough/fine) | mm | 0.02/0.0025 | 0.02/0.0025 |
| Roundness | um | 2.5 | 2.5 |
| Dia. uniformity in the longitudinal section | um | 8 | 8 |
| Surface roughness(O.D/I.D) | um | Ra0.32/0.63 | Ra0.32/0.63 |
| Hydraulic pump displacement | L/min | 17.3 | 17.3 |
| Hydraulic pump pressure | Mpa | 6.3 | 6.3 |
| Coolant flow | L/min | 50 | 50 |
| Total motor power | kw | 20.63 | 20.63 |
| Machine weight(N.W) | kg | 8400/9700/11200/12800 | 8600/9900/11350/13100 |
| Machine dimensions(L*W*H) | mm |
5320*2140*1550 6090*2140*1550 10240*2140*1550 12280*2140*1550 |
5320*2680*1560 6090*2680*1560 10240*2680*1560 12280*2680*1560 |

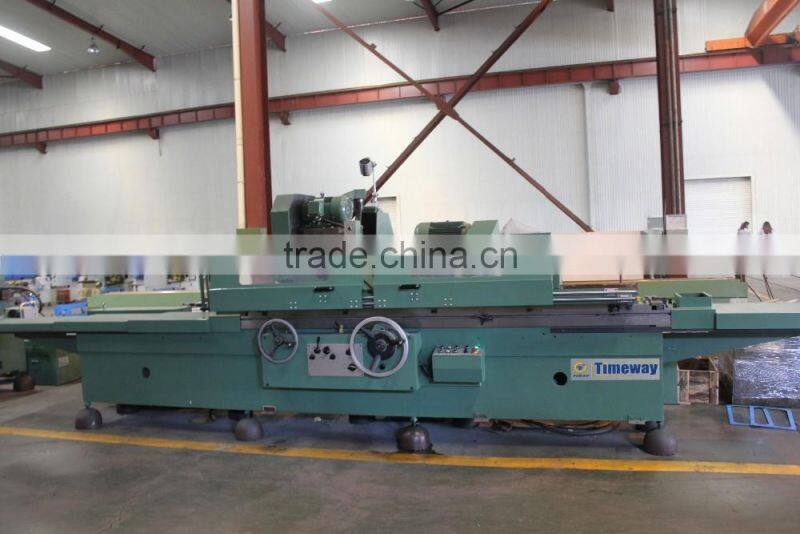

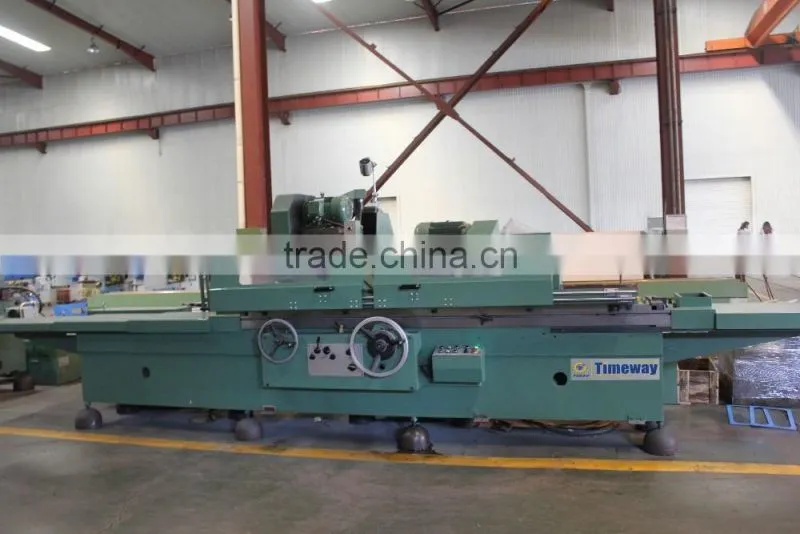

G-500B*2000

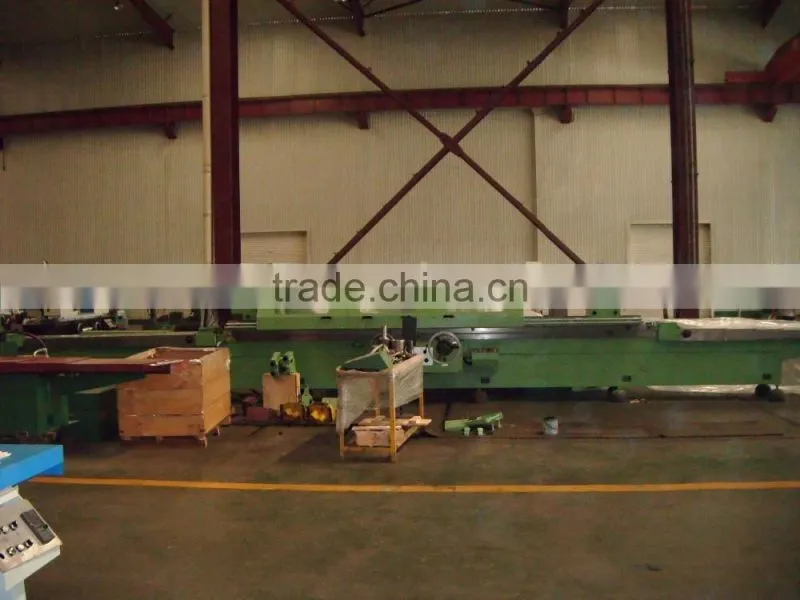

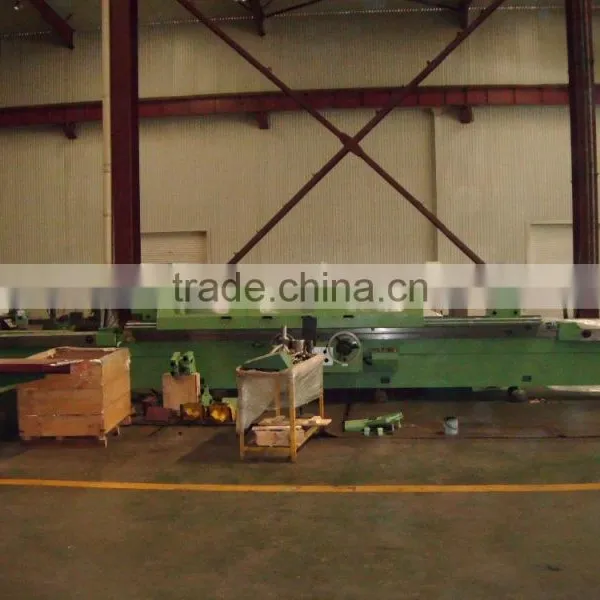

G-500B*4000
Universal Cylindrical Grinding Machine Series UG-200 UG-320 UG-500
UG-200*800 UG-320*1500
UG-320*1000 UG-320*2000
