Wheelhead Moving Surface Grinder GS-300A

Wheelhead Moving Surface Grinder GS-300A thumbnail-1
Wheelhead Moving Surface Grinder GS-300A thumbnail-2
Wheelhead Moving Surface Grinder GS-300A thumbnail-3
Wheelhead Moving Surface Grinder GS-300A thumbnail-4
Wheelhead Moving Surface Grinder GS-300A thumbnail-5
Wheelhead Moving Surface Grinder GS-300A thumbnail-6
Wheelhead Moving Surface Grinder GS-300A photo-1
Wheelhead Moving Surface Grinder GS-300A photo-2
Wheelhead Moving Surface Grinder GS-300A photo-3

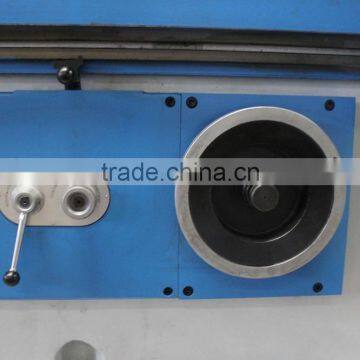

Wheelhead Moving Surface Grinder GS-300A photo-4
Wheelhead Moving Surface Grinder GS-300A photo-5

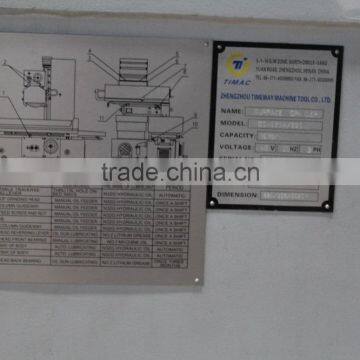

Wheelhead Moving Surface Grinder GS-300A photo-6
US$ 10,985 - 15,565 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Surface Grinding Machine
CNC or Not Normal
Max. Grinding Length 1000mm
Brand Name TIMAC
Model Number GS-300A
Voltage As per customer's request
Power(W) 5.5kw
Dimension(L*W*H) 2860*1845*2030mm
Weight 3400KG
Certification CE; ISO9001
After-sales Service Provided Engineers available to service machinery overseas



Product Description



Hydraulic Surface Grinder (Wheel head Moving)

GS-300A





                           Wheelhead Moving Surface Grinder GS-300A



Parameter:



Model

Unit

GS-300A

GS-300B

GS-300C

GS-320A

GS-320B

GS-320C

GS-400A

GS-400B

GS-400C

GS-500A

GS-500B

GS-500C

GS-630A

GS-630B

GS-630C

 Worktable size

 Width

mm

300

320

400

500

630

 Length

mm

1000/1600/2200

/3000/4500

1000/1600/2200

/3000/4500

1000/1600/2200

/3000/4500

1000/1600/2200

/3000/4500

1250/1600/2200

/3000/4500

 Max processing dimension

 Width

mm

300

320

400

500

630

 Length

mm

1000/1600/2200

/3000/4500

1000/1600/2200

/3000/4500

1000/1600/2200

/3000/4500

1000/1600/2200

/3000/4500

1250/1600/2200

/3000/4500

 Height

mm

400

800

1200

400

800

1200

400

800

1200

500

800

1200

500

800

1200

 Max. distance between spindle center line and worktable surface

mm

575

 975

1375

575

975

1375

600

1000

1400

700

1000

1400

700

1000

1400

 Longitudinal moving speed of worktable

m/min

3-27

3-27

3-25

3-27

3-27

 T-slot number/width

pcs*mm

3*18

3*18

3*18

3*22

3*22

 Wheelhead cross moving

 Consecutive feed speed

m/min

0.5-4.5

0.5-4.5

0.5-4.5

0.5-4.5

0.5-4.5

 Intermittent feed speed

mm/t

3-30

3-30

3-30

3-30

3-30

 Hand wheel feed

mm/gra





0.02

0.01

0.01

 Wheelhead vertical moving

 Rapid feed

mm/min

400

400

400

400

400

 Hand wheel feed

mm/gra

0.005

0.005

0.005

0.005

0.005

 Wheelhead motor

 Power

kw

5.5

5.5

7.5

7.5

7.5

 Rotation speed

r.p.m

1440

1440

1440

1440

1440

 Total power

kw

9/11

9/11

11/13.5/15.75

12.25/13.75/15.75

13.75/15.75

 Max. loading capacity of worktable(with chuck)

kg

470/750/1030/

1400/2100

500/800/1100/

1500/2250

620/1000/1380

/1872/2810

700/1240/1410

/1930/2895

1010/1290/1780

/2430/3650

 Wheel size(OD*W*ID)

mm

350*40*127

350*40*127

400*40*127

400*40*203

400*40*203

 Overall dimension

Length

mm

2860/4250/5750/

7880/12170

2860/4250/5750/

7880/12170

3110/4250/5750

/7880/12170

3110/4250/5750

/7880/12170

3300/5320/5750

/7880/12170

Width

mm

1845

1865

1740

1900

1900

Height

mm

2030

2510

 2930

2030

2510

2930

2230

2630

3030

2420

2720

3120

2420

2720

3120



*** Standard accessories:

Wheel chuck, wheel balancing arbor, wheel extracting units, coolant tank, work light, tool box & tools,

wheel dresser rest (without diamond pen),  standard wheel,  leveling wedges and foundation,  electro

magnetic chuck, operation manual(English edition).





*** Optional accessories:

Wheel balancing stand, demagnetizer, air-cooled machine



Detailed Images



 Wheelhead Moving Surface Grinder GS-300A

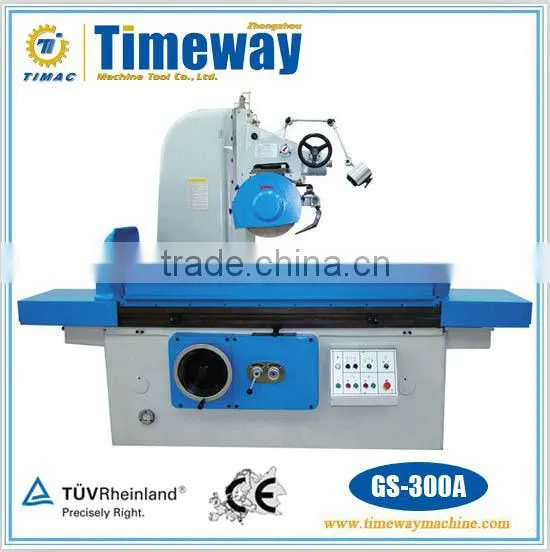

                                                              GS-300A Series Wheelhead Moving type





 Wheelhead Moving Surface Grinder GS-300A    Wheelhead Moving Surface Grinder GS-300A



                                    GS-500A Series Wheelhead Moving type







 Wheelhead Moving Surface Grinder GS-300A    Wheelhead Moving Surface Grinder GS-300A



 Wheelhead Moving Surface Grinder GS-300A    Wheelhead Moving Surface Grinder GS-300A



                                     GS-630A Series Wheelhead Moving type



Packaging & Shipping



                Wheelhead Moving Surface Grinder GS-300A





Package:  Wooden pallet & plastic cover





Packing size:

One piece in one case: 2850*2270*21800MM               N.W./G.W.: 3200/3400KG



Container loaded: 2 sets / 20'GP
