Retifica Plana Hidraulica SG-40800AHD

FOB Price

USD $10,985 - $15,565 / Set

1 Set(Min.Order)

Supply Ability 150 Set / Sets per Month
Port Qingdao port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Surface Grinding Machine	CNC or Not:	Normal
Brand Name:	TIMAC	Model Number:	SG-4080AHD	Voltage:	As per customer's request
Power(W):	7.5kw	Dimension(LWH):	285022702180mm	Weight:	3400KG
Certification:	CE; ISO9001	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

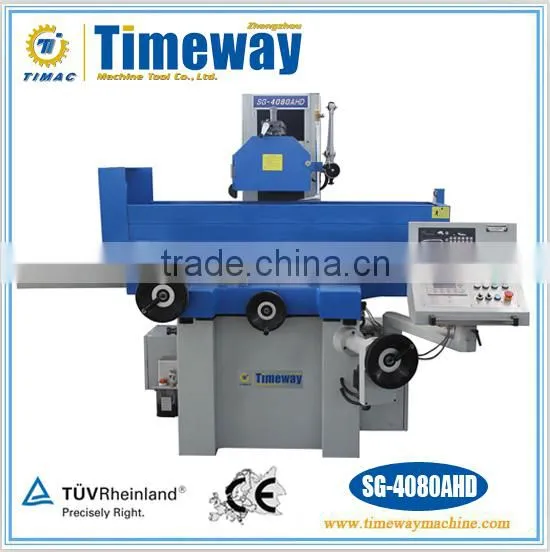

Hydraulic Surface Grinding Machine / SG-4080AHD

Parameter:

Specification		Unit	SG-2550AH	SG-3063AH	SG-30100AH	SG-4080AH	SG-40100AH
			SG-2550AHR	SG-3063AHR	SG-30100AHR	SG-4080AHR	SG-40100AHR
			SG-2550AHD	SG-3063AHD	SG-30100AHD	SG-4080AHD	SG-40100AHD
Table size(W×L)		mm	250×500	305×635	305×1020	406×813	406×1020
Max.longitudinal travel		mm	560	765	1130	910	1130
Max.distance from spindle center to table surface		mm	450	580	580	580	580
Magnetic chuck size		mm	250×500	300×600	300×1000	400×800	400×1000
Speed of table longitudinal movement		m/min	7~23
Table transverse movement	Auto feed	mm	0.1~8
	Rapid speed	mm/min	990
	Feed of handwheel	mm/div.	0.02
Wheelhead vertical movement	Auto feed	mm/stroke	0.005, 0.01, 0.02, 0.03, 0.04, 0.05(only for AHD model )
	Rapid speed	mm/min	460(AHR, AHD)
	Feed of handwheel	mm/div.	0.01(AH) 0.005(AHR,AHD)
Grinding wheel	Speed	rpm	2850(50Hz); 3450(60Hz)
Grinding wheel	Size(OD×W×ID)	mm	200×20×31.75	350×40×127
Motor of spindle		kw	2.2	5.5
Max.loading capacity of table(include magnetic chuck)		kg	180	270	400	500	600
Total rated power		kw	3.7	9

* AH: auto feed on transverse, hydraulic transmission on longitudinal, manual on vertical.

* AHR: auto feed on transverse, hydraulic transmission on longitudinal, rapid movement on vertical.

* AHD: auto feed on transverse, hydraulic transmission on longitudinal, auto feed on vertical.

***Standard accessories:

Wheel chuck, wheel balancing arbor, wheel extracting units, coolant tank, work light, tool box & tools, wheel dresser (without diamond pen), standard wheel, leveling wedges and foundation, electric magnetic chuck, PLC auto.

grinding controller(Only for AHD), operation manual(English edition).

***Optional accessories:

Wheel balancing stand, parallel dresser, cooling system with paper filter, cooling system with magnetic separator,

cooling system with magnetic separator&paper filter

Detailed Images

Packaging & Shipping

Package: Wooden pallet & plastic cover

Packing size:

One piece in one case: 2850*2270*21800MM N.W./G.W.: 3200/3400KG

Container loaded: 2 sets / 20'GP
